14

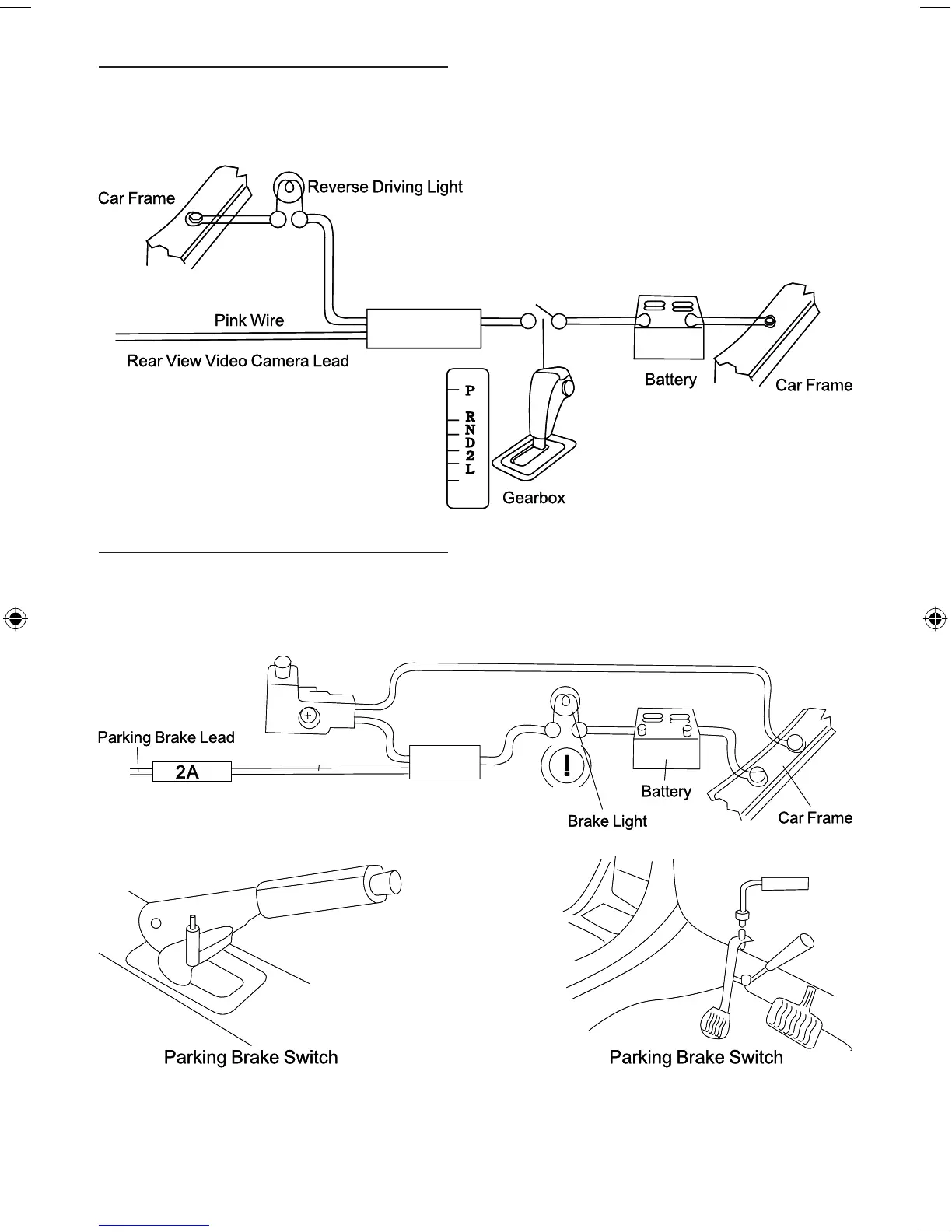

Connect reverse driving cable
1 Refer to the illustration below to connect
reverse driving wire.
Connect parking brake wire
1 Refer to the illustration below to connect
parking brake wire.
Green/WhiteGreen/White
EN
EN.indd Sec1:14EN.indd Sec1:14 2008-11-14 13:23:012008-11-14 13:23:01
