11EN

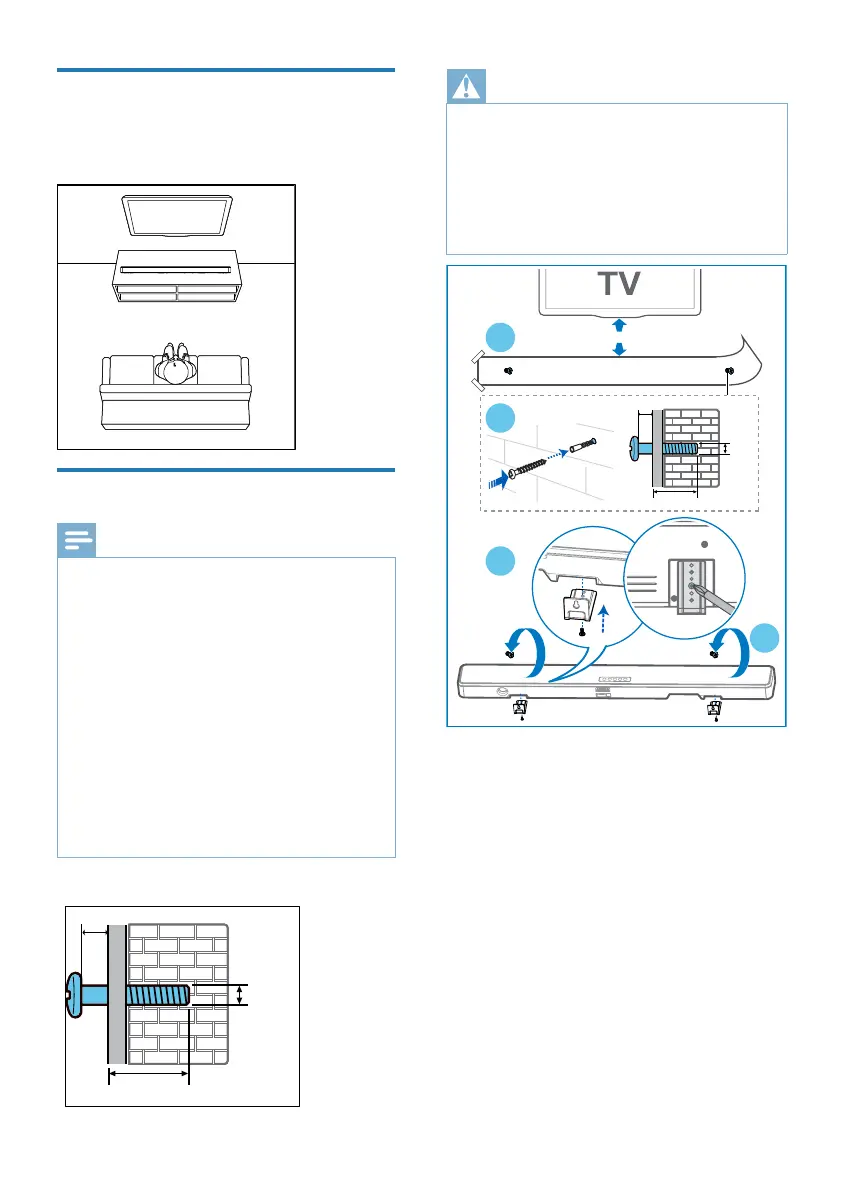

Placement
For best results, place your Soundbar as
shown below.
Wall mount
Note
•
Improper wall mounting may result in accident,
injury or damage. If you have any query, contact
Consumer Care in your country.
• Before wall mounting, make sure the wall can
support the weight of your soundbar.
• Before wall mount, you need not remove the
rubber feet at the bottom of the soundbar,
otherwise the rubber feet cannot be xed back.
• Depending on the type of wall mounting your
soundbar, make sure that you use screws of a
suitable length and diameter.
• Please check whether the USB port on the
back of the soundbar is connected to a USB
device. If it is found that the connected USB
device aects the wall-mount, you need to use
another USB device of the appropriate size.
Screw length/diameter
4mm/
0.16"
WARNING!
•
To prevent injury, this apparatus must
be securely attached to the oor/wall in
accordance with the installation instructions.
• Suggested wall mounting height: ≤ 1.5 meters.
• You are recommended to install the TV rst
before wall mounting the soundbar. With
a TV preinstalled, wall mount the soundbar
50mm/2.0’’ in distance from the bottom of the TV.
3
4
1
~50mm/2.0"
743mm / 29.2”
2
3.5-4mm/0.14 -0.16"
4mm/
0.16"
>32mm/1.26"
1 Drill 2 parallel holes (Diameter 3-8mm
each according to wall type) on the wall.
» The distance between the holes
are: 743mm / 29.2”
» You can use the wall mount
template provided for helping the
drilling holes position on the wall.
2 Secure the dowels and screws in the
holes.
» Be sure to leave a 3.5-4mm gap
between the wall and the screw’s
head.
3 Attach the wall brackets (x2) into on
the unit.
4 Hang the soundbar on the fastening
screws.
