3-2
3-2

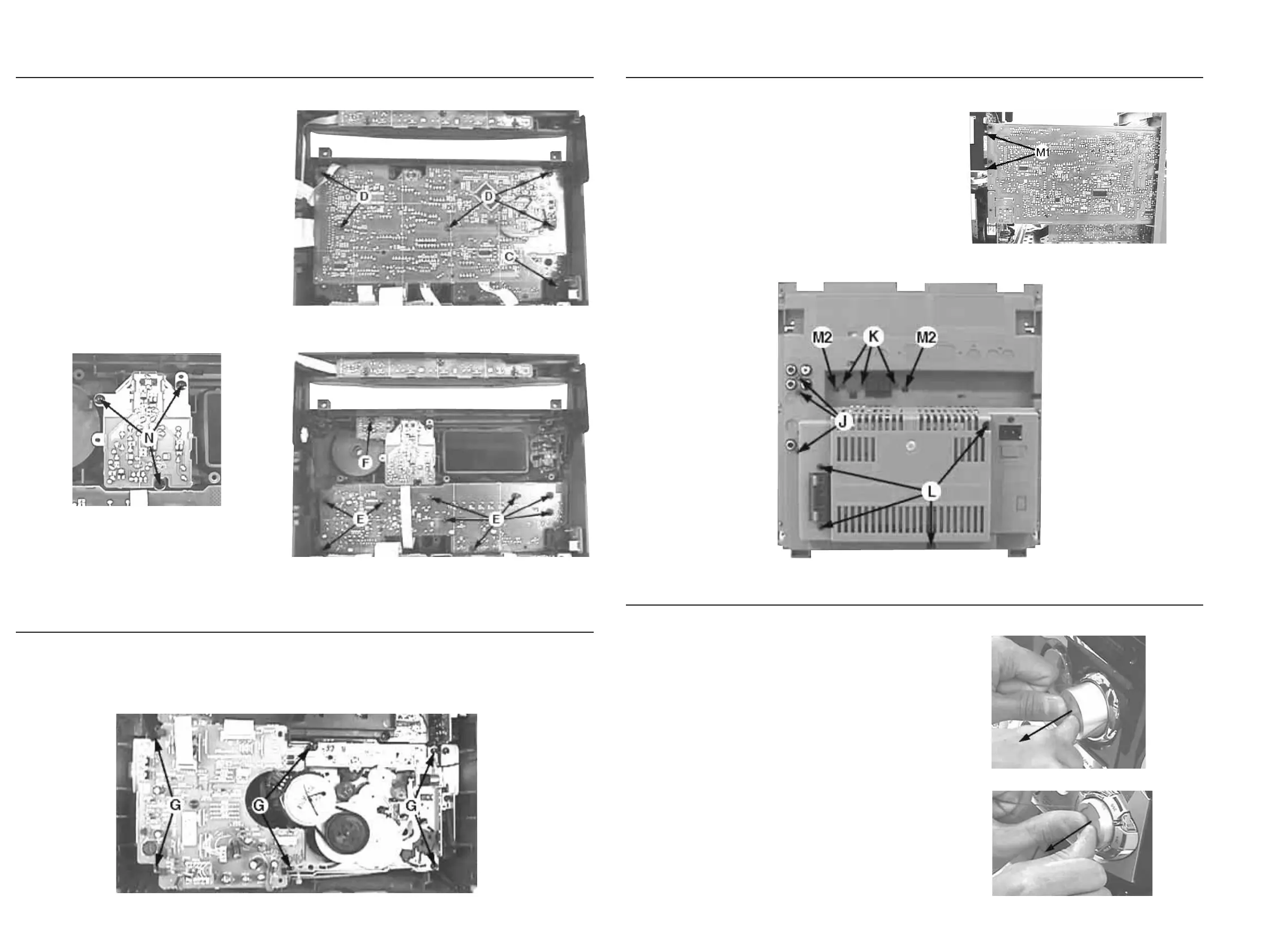

Dismantling of the ETF Tape Module
1) Remove 6 screws G as indicated to loosen the ETF Tape
Module (pos 1104).
Dismantling of Rear PortionDismantling of the Front Display Board and Front Control Board
1) Remove 1 screw C as indicated to loosen the Headphone
Board (pos 1101-B).
2) Remove 5 screws D as indicated to loosen the Front
Display Board (pos 1101-A).
3) Remove 9 screws E as indicated to loosen the Front
Control Board (pos 1107-A).
4) Remove 1 screw F as indicated to loosen the IR-Eye
Board (pos 1107-D).
5) Remove 3 screws N as indicated to loosen the VU Meter
Board (pos 1107-C).
1) The Knob Volume Rotary (pos 117) can be remove by
inserting a strong string into the slot and pull it out in the
direction as indicated. See picture 1.
2) The Knob Jog Rotary (pos 140) can be remove by
inserting a strong string into the slot and pull it out in the
direction as indicated. See picture 2.
Picture 1
Picture 2
Repair Hints
1) Remove 3 screws J and uncatch M1 as indicated to
loosen the AF Board (pos 1102-A).
2) Remove 3 screws K and uncatch M2 as indicated to
loosen the Tuner Board (pos 1103).
3) Remove 4 screws L as indicated to loosen the Panel
Rear (pos 256).
Remove AF Board
Remove VU Meter Board
Remove Front Display Board and Headphone Board
Remove Front Control Board and IR-Eye Board
To Next Page
