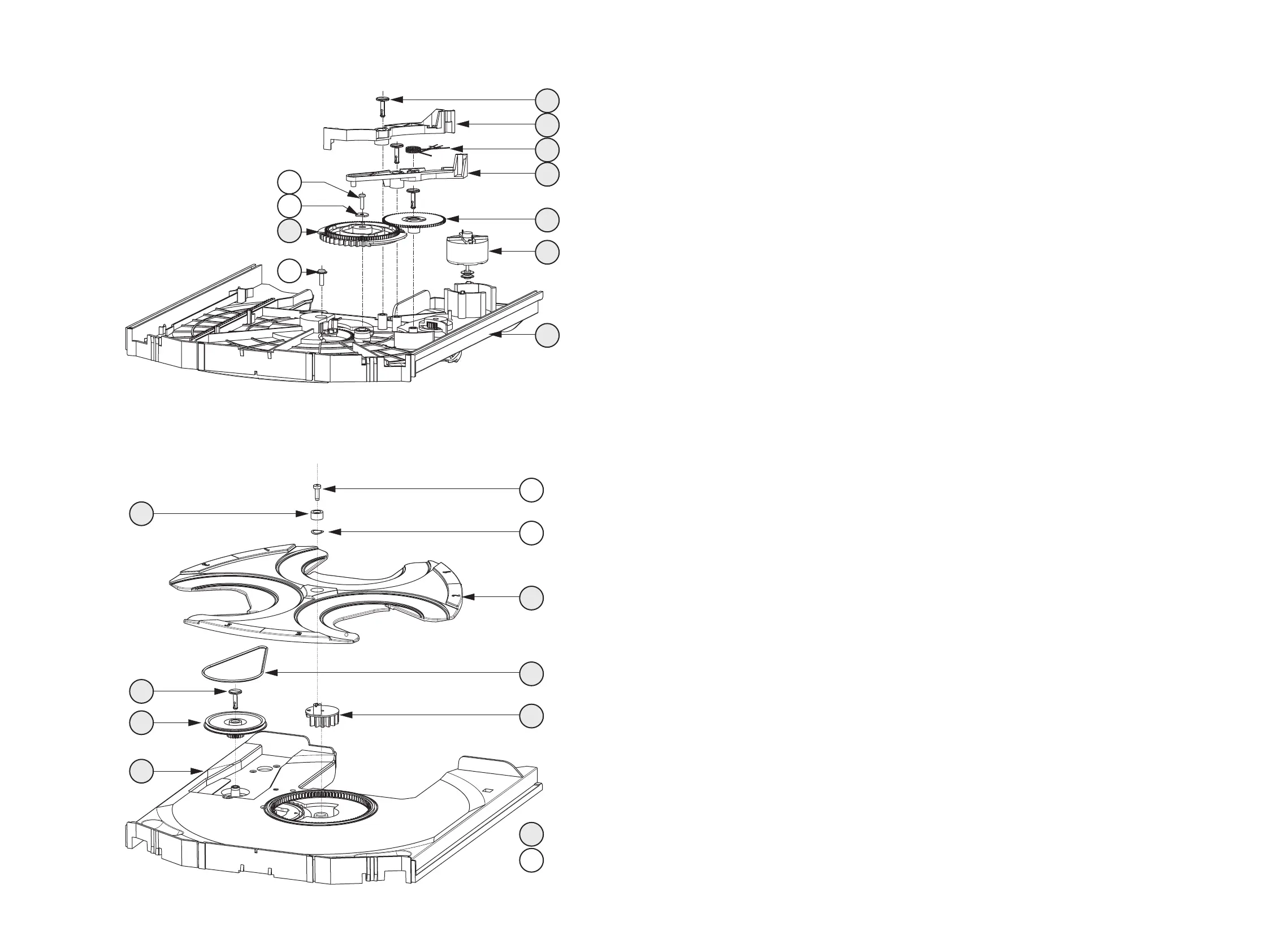

Philips FW C717 - Drawer bottom view; Drawer top view; ELECTRICAL PARTSLIST 3 CDC-LC-MB-DA11 MODULE -; MISCELLANEOUS

10-11
3CDC-LC Drawer assy 1999 09 13
37
20
32
35
33
36
29
31
34
24
30
3x
27
24
22
20
23
25
21
26
28
Drawer top view
Drawer bottom view
X spare part
non spare part
Y
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
37 4822 361 10753 CARROUSEL MOTOR
55 4822 361 10753 CARROUSEL MOTOR
1800 2422 025 12133 FLEX FOIL CONNECTOR 16PIN
1805 4822 265 10979 FLEX FOIL CONNECTOR 15PIN
1805 4822 265 11545 FLEX FOIL CONNECTOR 19PIN
1875 4822 267 10958 FLEX FOIL CONNECTOR 5P
1876 2422 025 08332 FLEX FOIL CONNECTOR 5P
1880 4822 276 13503 SWITCH, Tray in endposition
1881 4822 276 13503 SWITCH, Drive up/down
1882 4822 276 13503 SWITCH, Position 1
1883 4822 276 13503 SWITCH, Position recogiced
8002 3103 308 91990 FLEX FOIL CABLE 5P, 200mm
8005 3103 308 92620 FLEX FOIL CABLE 16P, 170mm
8005 3103 308 91980 FLEX FOIL CABLE 15P, 170mm
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2800 © 4822 126 14508 180pF 5% 50V
2801 © 4822 126 13883 220pF 5% 50V
2802 © 4822 126 14508 180pF 5% 50V
2803 © 4822 126 13883 220pF 5% 50V
2804 © 3198 024 44730 47nF 5% 50V
2805 © 4822 126 13883 220pF 5% 50V
2806 © 4822 126 13883 220pF 5% 50V
2807 © 4822 126 14508 180pF 5% 50V
2808 © 4822 126 13883 220pF 5% 50V
2809 © 4822 126 13883 220pF 5% 50V
2810 © 4822 122 31765 100pF 5% 50V
2811 © 4822 126 13883 220pF 5% 50V
2812 © 4822 126 14585 100nF 10% 50V
2813 © 4822 126 14585 100nF 10% 50V
2814 4822 124 40433 47µF 20% 25V
2815 © 4822 126 13879 220nF 20% 16V
2816 © 4822 126 13344 1,5nF 5% 63V
2817 © 4822 126 14585 100nF 10% 50V
2818 © 4822 126 13344 1,5nF 5% 63V
2819 4822 124 40433 47µF 20% 25V
2820 4822 124 40433 47µF 20% 25V
2821 © 4822 126 14585 100nF 10% 50V
2822 © 2222 861 15222 2,2nF 10% 50V
2823 © 4822 126 14225 56pF 5% 50V
2824 © 4822 126 13751 47nF 10% 50V
2825 © 5322 126 11583 10nF 10% 63V
2826 4822 124 12362 47µF 20% 4V
2828 4822 124 12362 47µF 20% 4V
2829 © 5322 126 11578 1nF 10% 63V
2830 © 4822 126 13751 47nF 10% 50V
2831 © 4822 122 31765 100pF 5% 50V
2832 © 4822 122 31765 100pF 5% 50V
2833 © 4822 126 11671 33pF 5% 50V
2834 © 4822 126 11671 33pF 5% 50V
2835 © 3198 024 44730 47nF 5% 50V
2836 © 4822 126 14585 100nF 10% 50V
2837 4822 124 40433 47µF 20% 25V
2838 4822 124 40248 10µF 20% 63V
2839 © 4822 126 14585 100nF 10% 50V
2840 © 4822 126 14585 100nF 10% 50V
2841 © 5322 122 31647 1nF 10% 63V
2842 © 4822 126 13883 220pF 5% 50V
2843 © 4822 126 14585 100nF 10% 50V
2844 © 5322 122 34099 470pF 10% 63V
2845 © 4822 126 14585 100nF 10% 50V
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2846© 4822 126 13883 220pF 5% 50V
2847 © 4822 126 14585 100nF 10% 50V
2848 © 4822 122 33753 150pF 5% 50V
2849 4822 124 40769 4,7µF 20% 100V
2850 © 5322 126 11578 1nF 10% 63V
2851 4822 124 42383 220µF 20% 4V
2854 © 4822 126 13751 47nF 10% 50V
2855 © 4822 126 14508 180pF 5% 50V
2856 © 4822 126 11669 27pF 10% 50V
2857 © 4822 126 13883 220pF 5% 50V
2858 4822 124 12245 220µF 20% 16V
2859 © 4822 126 13883 220pF 5% 50V
2860 4822 124 11947 10µF 20% 16V
2861 4822 124 11947 10µF 20% 16V
2862 © 4822 126 13883 220pF 5% 50V
2863 © 4822 126 13883 220pF 5% 50V
2864 © 4822 122 33761 22pF 5% 50V
2865 © 4822 126 14494 22nF 10% 25V
2866 © 4822 122 33753 150pF 5% 50V
2867 © 4822 126 13883 220pF 5% 50V
2868 © 5322 126 11578 1nF 10% 63V
2869 © 3198 024 44730 47nF 5% 50V
2870 © 4822 126 14585 100nF 10% 50V
2871 © 4822 126 14585 100nF 10% 50V
2872 © 3198 024 44730 47nF 5% 50V
2873 4822 124 40433 47µF 20% 25V
2874 © 4822 126 14585 100nF 10% 50V
2875 © 3198 017 41050 1µF 20% 10V
2876 4822 124 12245 220µF 20% 16V
2877 © 4822 122 33777 47pF 5% 63V
2878 © 4822 126 13883 220pF 5% 50V
2879 © 4822 126 14585 100nF 10% 50V
2880 © 3198 017 41050 1µF 20% 10V
2881 4822 124 40769 4,7µF 20% 100V
2882 © 4822 126 13883 220pF 5% 50V
2883 © 4822 126 14585 100nF 10% 50V
2884 4822 124 40769 4,7µF 20% 100V
2885 4822 124 40769 4,7µF 20% 100V
2887 © 4822 126 14585 100nF 10% 50V
2888 4822 124 40769 4,7µF 20% 100V
2891 © 4822 126 13883 220pF 5% 50V
2892 © 5322 126 10223 4,7nF 10% 63V
2893 © 4822 122 33575 220pF 5% 50V
2900 © 4822 126 14508 180pF 5% 50V
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3701 © 4822 051 30474 470kΩ 5% 0,06W
3702 © 4822 051 30474 470kΩ 5% 0,06W
3703 © 4822 117 12925 47kΩ 1% 0,06W
3704 © 4822 117 12925 47kΩ 1% 0,06W
3709 © 4822 117 10833 10kΩ 1% 0,1W
3710 © 4822 051 30474 470kΩ 5% 0,06W
3712 © 4822 051 30109 10Ω 5% 0,06W
3713 © 4822 051 20223 22kΩ 5% 0,1W
3714 © 4822 051 30103 10kΩ 5% 0,06W
3715 © 4822 117 13632 100kΩ 1% 0,06W
3716 © 4822 051 30471 470Ω 5% 0,06W
3719 © 4822 051 30474 470kΩ 5% 0,06W
3727 © 4822 051 30472 4,7kΩ 5% 0,06W
3728 © 4822 051 30472 4,7kΩ 5% 0,06W
3730 © 4822 051 20333 33kΩ 5% 0,1W
10-12
ELECTRICAL PARTSLIST 3CDC-LC-MB-DA11 MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
