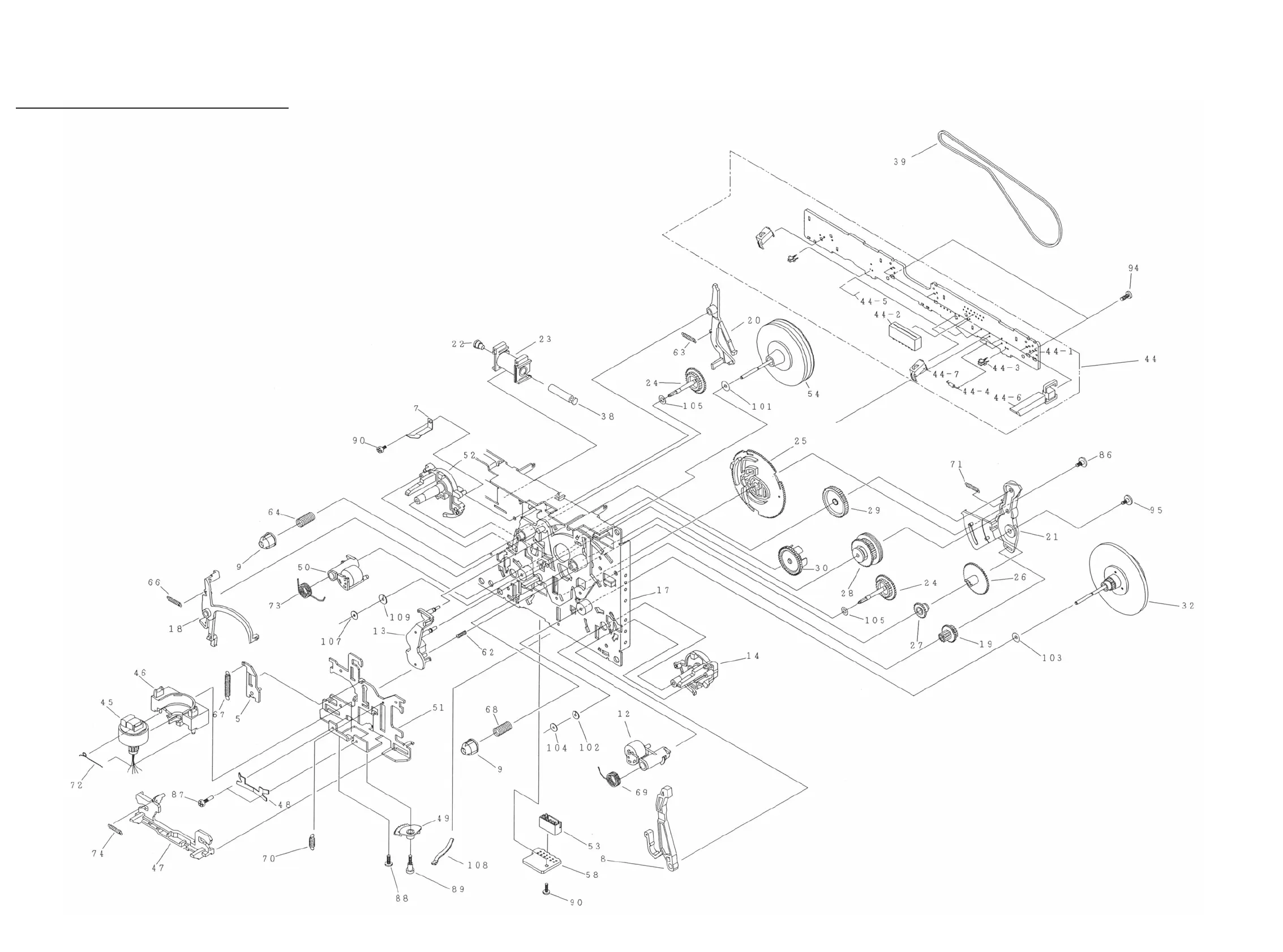

TAPE MECHANISM B - RECORD/PLAYBACK (Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
12 482240210972 Pinch Arm Assembly R
23 996500002314 Coil Assembly
32 482252811209 Flywheel Assembly RV
39 996500003001 Belt BF
44-2 996500002317 Flex Socket 14 Pin
44-3 996500002320 Photo Interrupter
44-4 482205016801 680R 1% 0,4W
44-6 996500002318 Leaf Switch
44-7 996500002330 Mode Switch
45 996500003002 Rec/Pb Head Assembly
50 482252810975 Pinch Arm Assembly L
54 996500002324 Flywheel Assembly L
69 482249211761 Spring
73 482249211762 Spring
101 996500002325 Washer
102 482253212931 Washer
103 482253212932 Washer
104 482253212933 Washer
107 996500002326 Washer
109 996500002327 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
