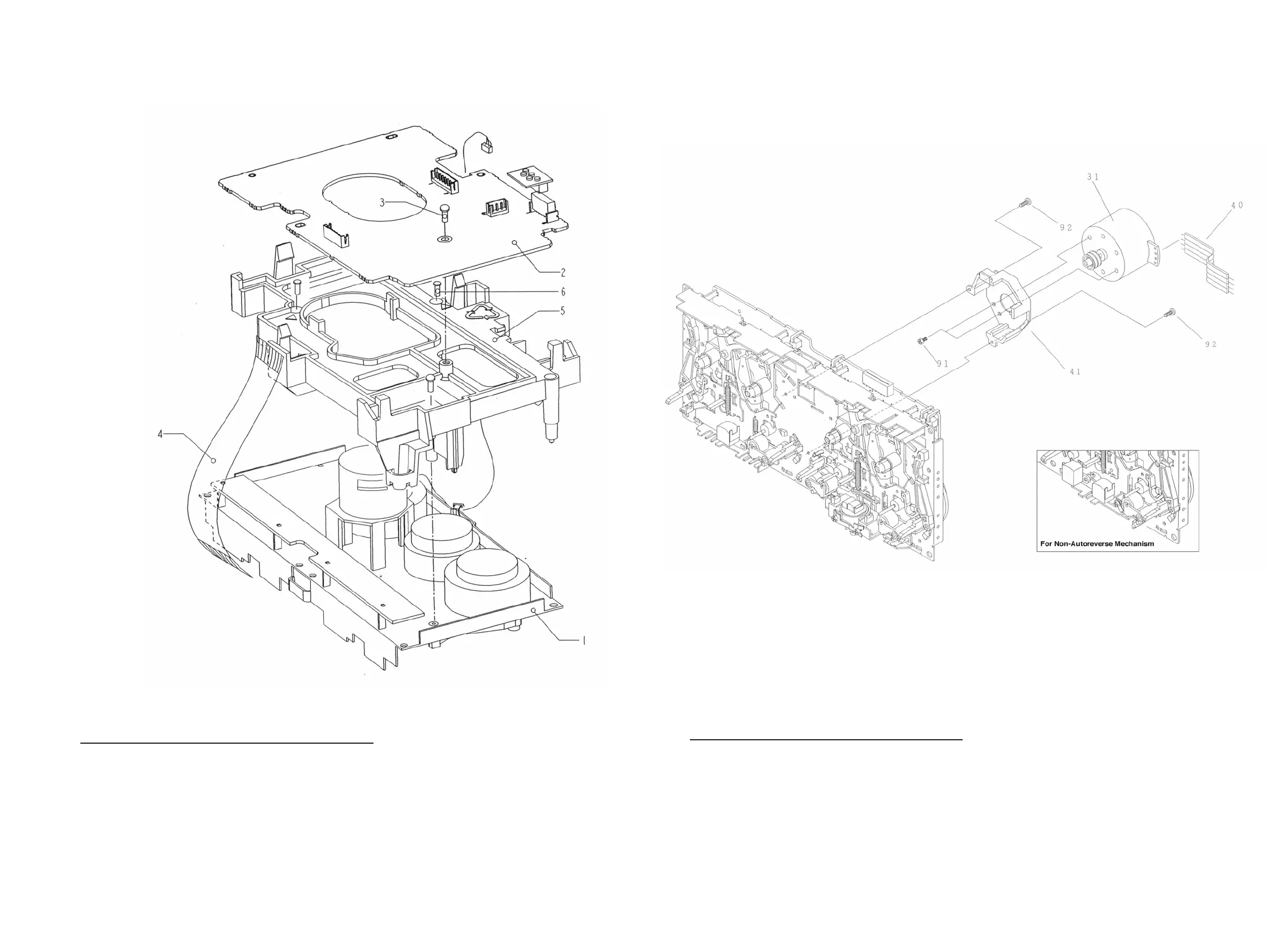

Philips FW C717 - TAPE MODULE EXPLODED VIEW

9A-13
9A-13
TAPE MECHANISM - MOTOR EXPLODED VIEW
31 996500003006 Motor Assembly
91 - Screw M2,6 x 5
92 - Screw M2 x 5
Note: Only the parts mentioned in this list are normal
service spare parts.
TAPE MODULE EXPLODED VIEW
1 313911877150 Autoreverse Mech. CWE44FR03
3- Screw D3 x 10
4 313911034080 Flex Cable 14 pin 7,5 cm
6- Screw M2 x 16
Note: Only the parts mentioned in this list are normal service
spare parts.
