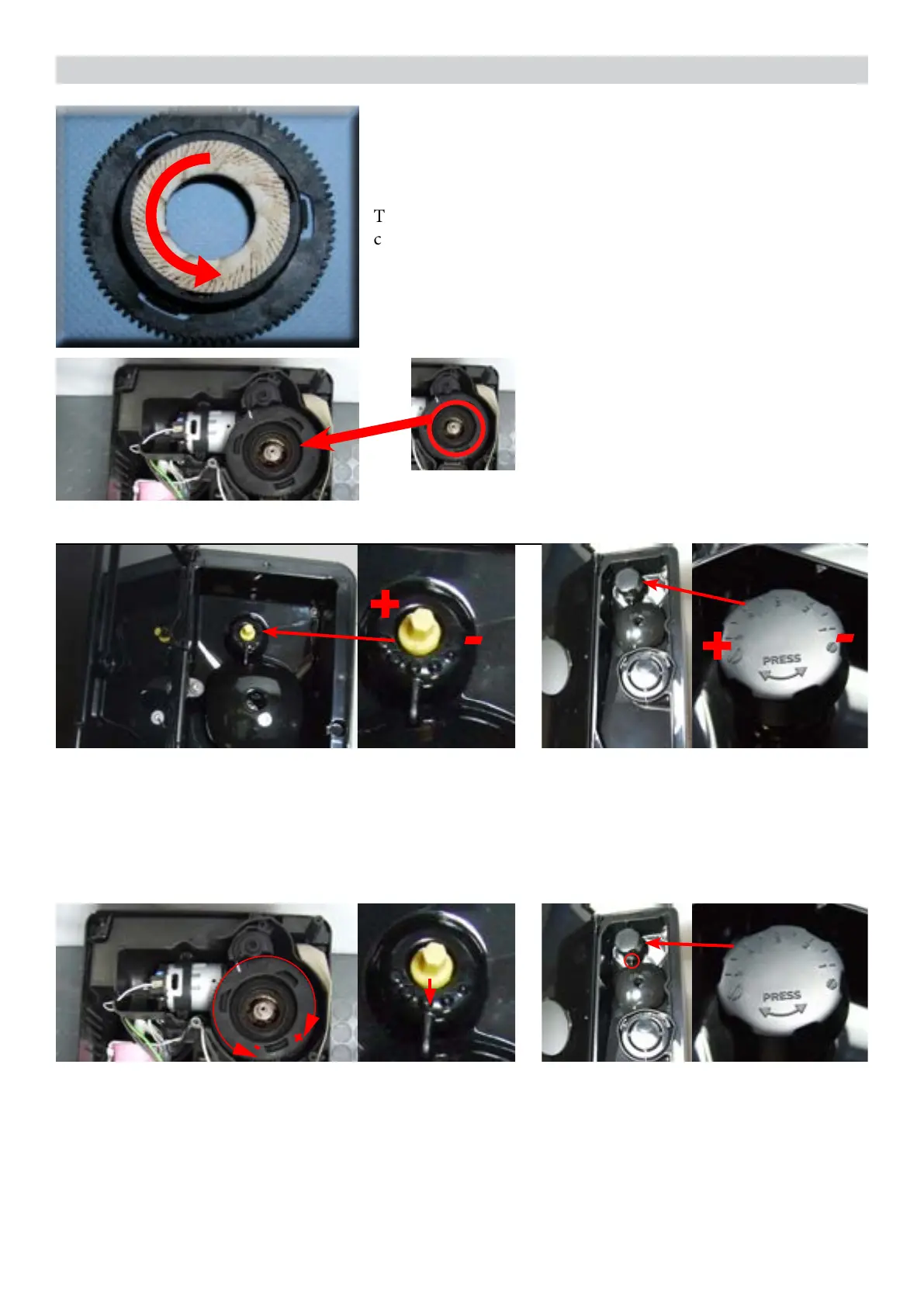

Turn the grinder blades clockwise out of the support. e bayonet
connections can be accessed from the rear.
For a standard adjustment, both markings must be aligned.
7.4. Coee grinder adjustment
For HD Models UP TO S/N.TW901645704031 the grinding
adjustment can be set by the user (only with the coee grinder
in operation) by pressing and turning (only by one click at a
time) the insert inside the coee bean hopper with the aid of
the wrench supplied.
For HD Models from S/N.TW901645704032
and for EP models the grinding adjustment
can be set by the user pressing and turning
the grinder adjustment knob
Adjustment by a service center
To adjust grinding further, the engineer can work directly on the coee grinder by pressing and turning the ring nut
(C) shown. (clockwise + to increase the particle size of the coee and anticlockwise - to decrease it).
If there are any remains of coee powder between the two grinding blades it is recommended to tighten by max.
two marks at a time.
Lastly, move the arrow (A) on the adjustment knob to the center of the adjustment dots on the cover (B) for HD
Models UP TO S/N.TW901645704031, instead for HD models from S/N.TW901645704032 and for EP models
ascertain that the center line of the “PRESS” (D) is in correspondence of the n (E).
+
-
B
A
+
-
C
-
+
D
E
