PHILIPS 4000 07 DISASSEMBLY
4/7

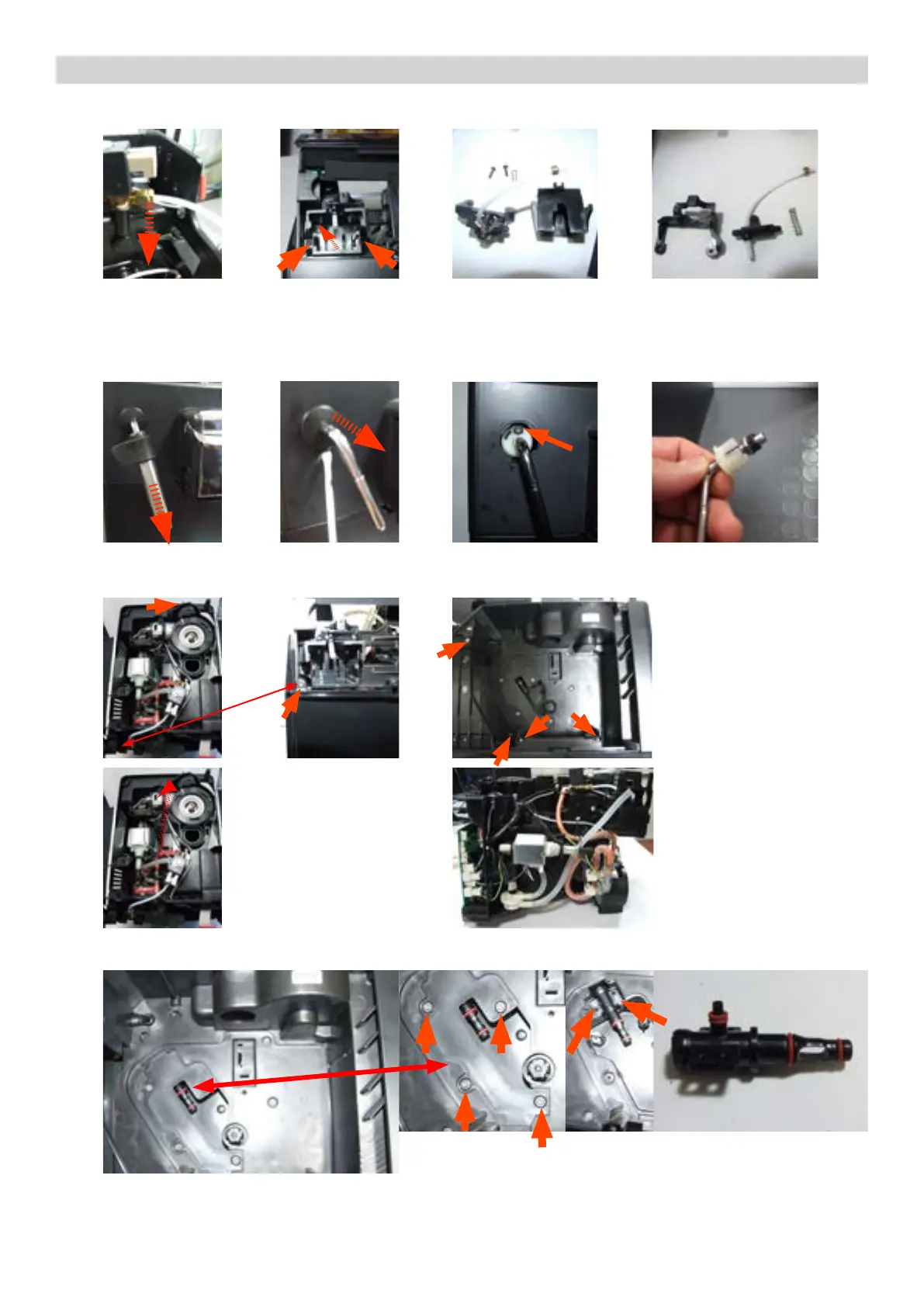

7.8. Pin boiler
Loosen the screws as illustrated and remove the boiler pin (A).
A
7.7. Central plate
unscrew the screws shown
unscrew the screws shownRemoves the covers shown
Li up the center plate
Loosen the screws
holding the carafe
connection
When reassembling the assembly to be careful to
correctly position the spring.
Slide out the fork as
illustrated
7.5. Carafe connection and hot/steam water dispenser (Philips 4000 OTC)
7.6. Hot water dispenser (Philips 4000 AMF-CMF)
