Supported Topologies and System Limits
IntelliVue Telemetry System Infrastructure Installation and Service Guide 1-19
• Multiple ITSs at a single hospital are supported only if the topology,
configuration, and Sync Network requirements listed in Appendix A are met.
Figure 1-11 illustrates supported and non-supported ITS installations within a non-
routed ICN topology.
Refer to Table 1-9 for a list of the device IP address assignments used in a non-
routed ICN configuration where the ITS infrastructure is installed on the ICN subnet.
Note the following regarding Table 1-9:
• “n” represents the network number and starts at 0 for single Database Domain
ICN systems. This variable increments by 8 from there for additional ICN
Database Domains. For example, for DBS 2, “n” would equal 8, for DBS 3, “n”
would equal 16, and so on.

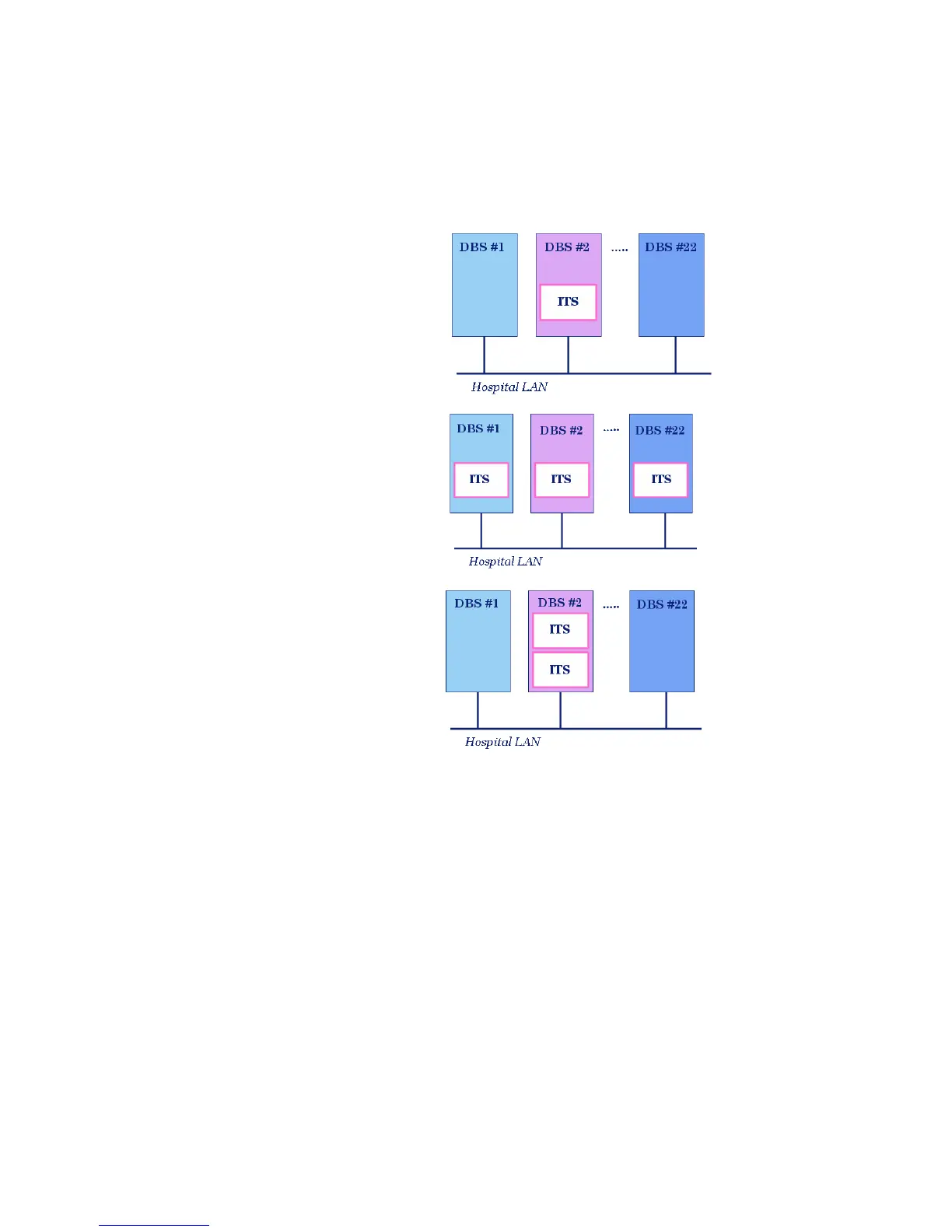

Figure 1-11: Supported and Non-Supported ITS Non-routed ICN Installations
(Multiple ITSs at a single
location are supported
only if the Topology,
Configuration, and Sync
Net requirements listed
in Appendix A are met.)
Supported:
Not Supported:
