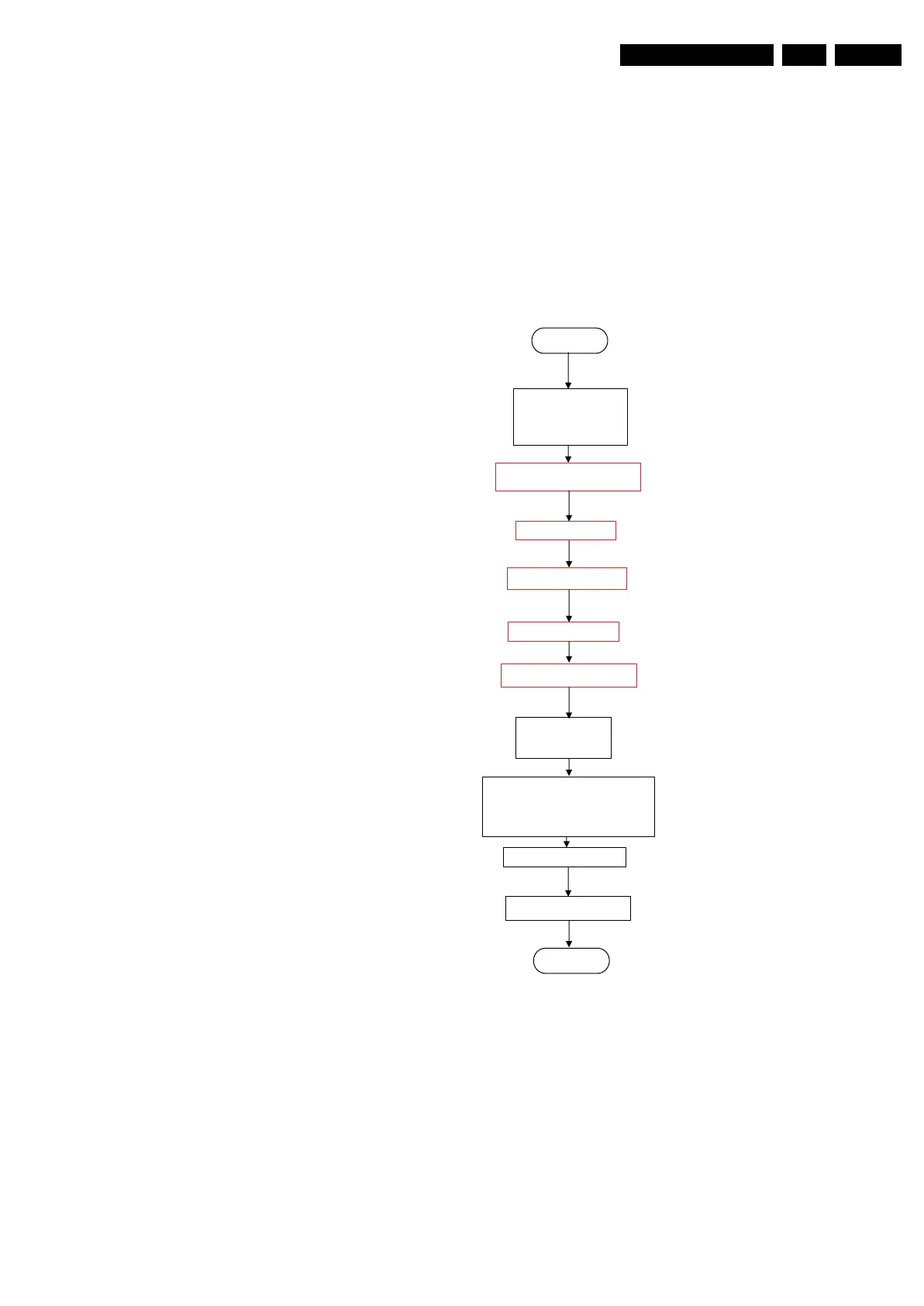

Figure 5-7 Stand-by flowchart
Note:
Total wait time 232ms iso 320ms
Audio is mute continuously -->
Start
Mute Audio
ANTI_PLOP=LOW
MUTEn=HIGH
BL_ON_OFF=LOW
Wait 300ms
Switch OFF LVDS
Wait 20ms
LCD_PWR_ON=LOW
WP for NVM
LOCTOP
Enable Audio mute
Port assignment in STANDBY
( Weltrend)
STANDBY=HIGH
Disable Audio Mute?
END
I_18170_035.eps
310708
