9.1.1 SSB Cell Layout

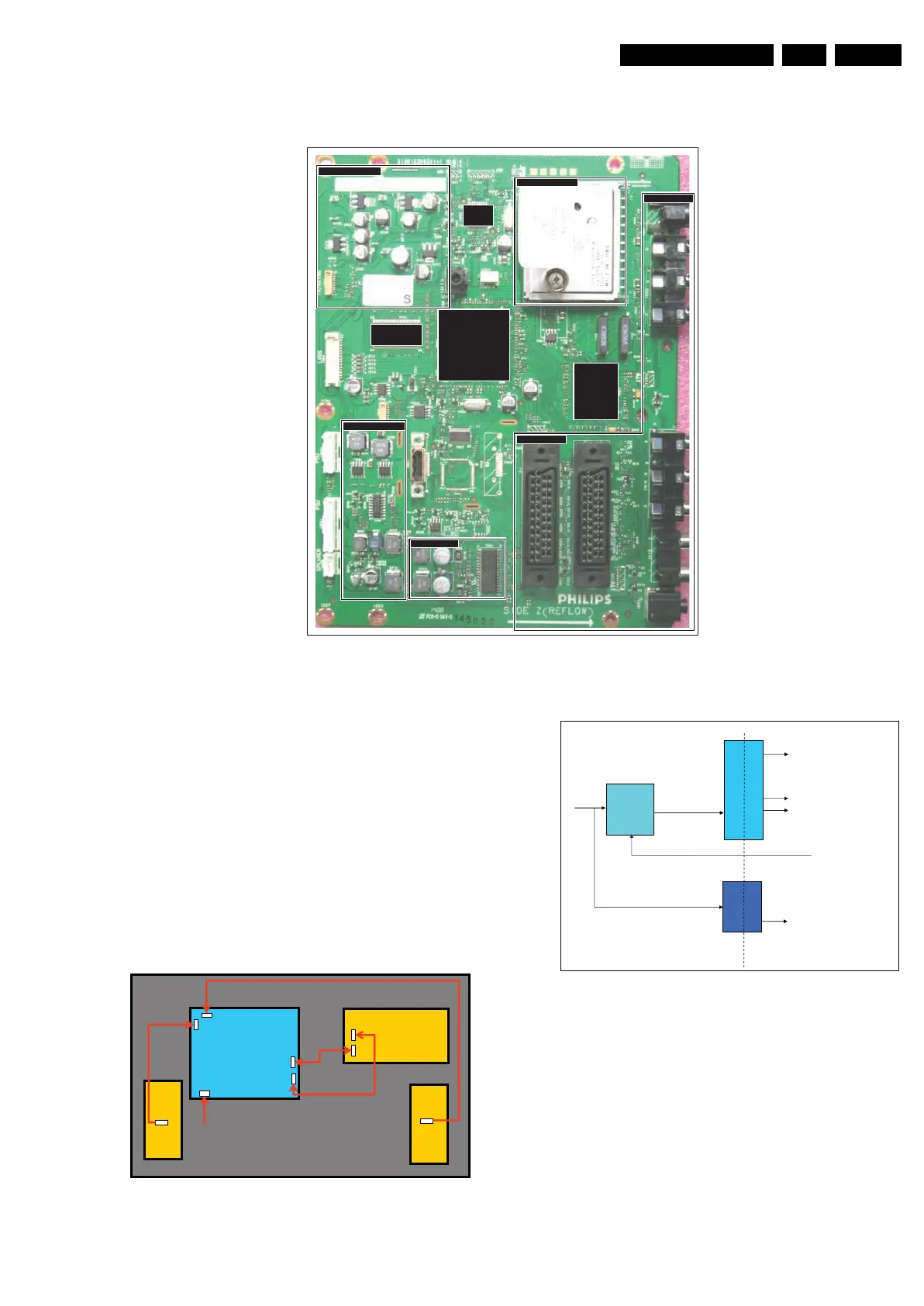

Figure 9-2 SSB top view
9.2 LCD Power Supply
The Power Supply Unit (PSU) in this chassis is a Bobitrans
Power Solutions buy-in unit and is a black-box for Service.
When defective, a new panel must be ordered and the
defective panel must be returned for repair, unless the main
fuse of the unit is broken. Always replace the fuse with one with
the correct specifications! This part is commonly available in
the regular market.
Different PSUs are used in this chassis:
• 32" sets use a “Bobitrans” PLCD170PS09 B unit.
• 42" sets use an “Bobitrans” LIPS250PS02 unit.
9.2.1 32" sets
Figure 9-3 32” PSU connectivity
Figure 9-4 32” PSU block diagram
STAND BY
uP
DDR
TDA8890
SMIC
TDA1547
CONTROLLER
TUNER
AUDIO CLASS - D
ANALOGUE I/O
ANALOGUE I/O
DC - DC CONVERSION
DC - DC CONVERSION
I_18170_039.eps
310708
I_18170_040.eps
310708
A C Inlet
BPS
P S U
LC 08EE SSB
P anel
12NC: 3122 427 24851
Panel
(Left)
Panel
(Right)
