Mechanical Instructions
EN 11LC4.31E AA 4.

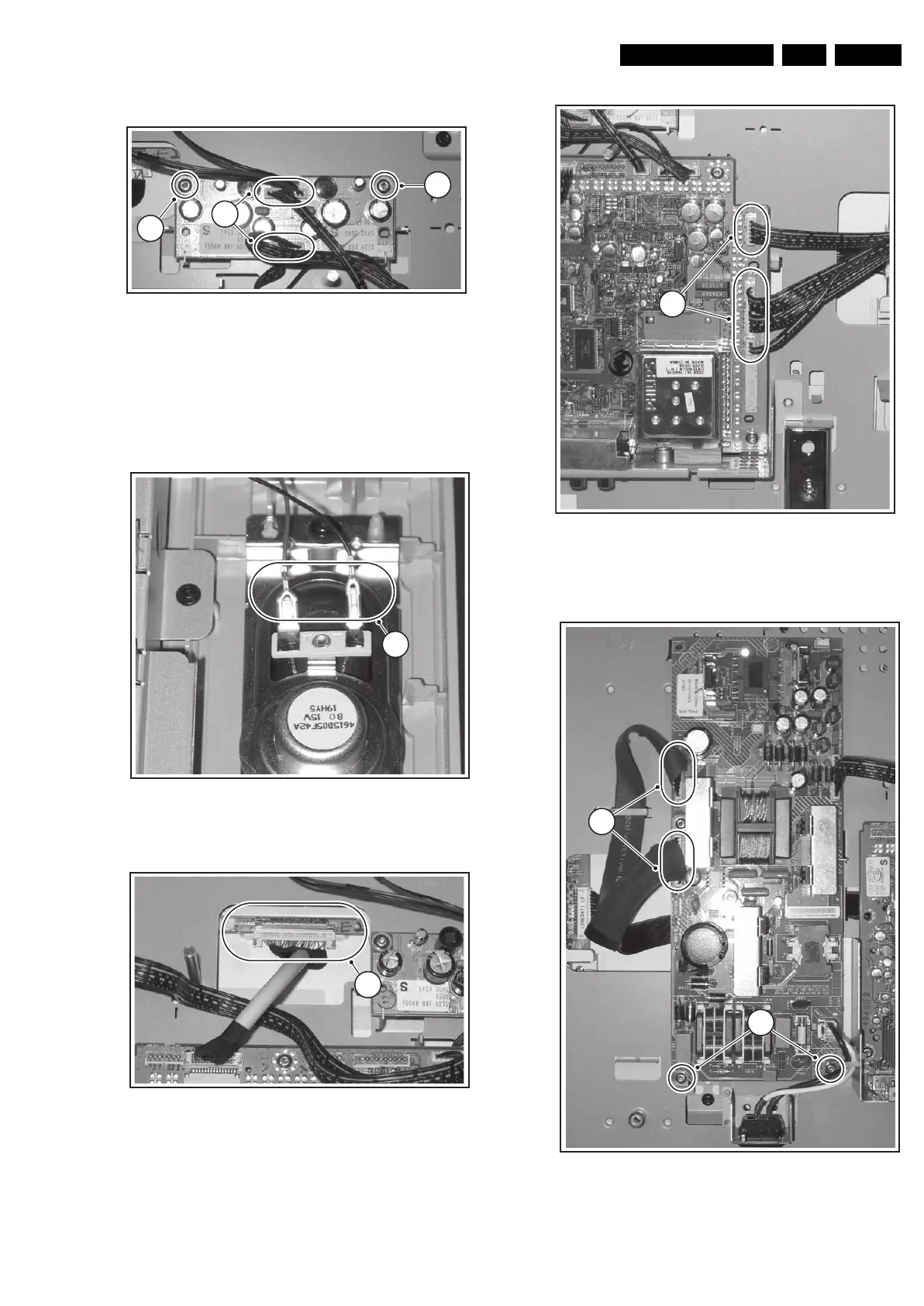

4.3.8 Audio Amplifier Panel
Figure 4-11 Audio amplifier panel
1. Disconnect all cables [1] from the panel.
2. Remove the fixation screws [2] from the panel.
3. Remove the panel.
4.3.9 LCD Panel
Figure 4-12 Loudspeaker cables
Figure 4-13 LVDS connector
Figure 4-14 SSB connectors for side I/O, side control panel, and
LED
Figure 4-15 Connectors X520 and X530 and fixation screws on
power supply panel
G_16210_080.eps
200106
2
2
1
G_16210_081.eps
200106
1
G_16210_082.eps
2
00
1
06
2
G_16210_083.eps
200106
3
G_16210_084.eps
200106
4
5
