Philips PCL304 - System Unit; Technical Specifications

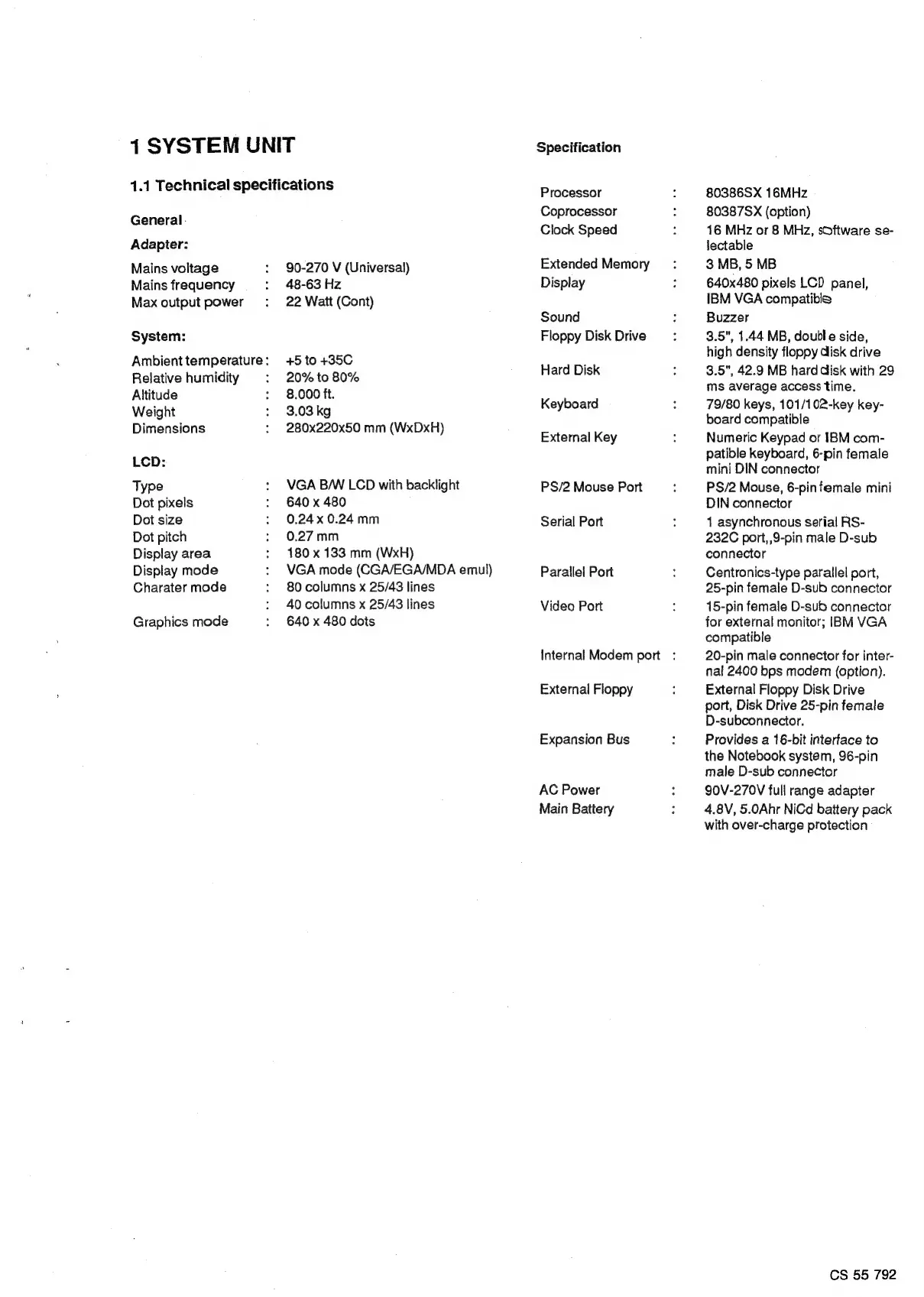

1 SYSTEM UNIT
1.1 Technical specifications
General.
Adapter:
Mains voltage
Mains frequency
Max output power
System:
Ambient temperature :
Relative humidity
Altitude
Weight
Dimensions
LCD:
Type
Dot pixels
Dot size
Dot pitch
Display area
Display mode
Charater mode
Graphics mode
90-270 V (Universal)
48-63 Hz
22 Watt (Cont)
+5 to +35C
20% to 80%
8.000 ft.
3.03 kg
280x220x50 mm (WxDxH)
VGA B/W LCD with backlight
640 x 480
0.24 x 0.24 mm
0.27 mm
180 x 1383 mm (WxH)
VGA mode (CGA/EGA/MDA emul)
80 columns x 25/43 lines
40 columns x 25/43 lines
640 x 480 dots
Specification
Processor
Coprocessor
Clock Speed
Extended Memory
Display
Sound
Floppy Disk Drive
Hard Disk
Keyboard
External Key
PS/2 Mouse Port
Serial Port
Parallel Port
Video Port
Internal Modem port
External Floppy
Expansion Bus
AC Power
Main Battery
80386SX 16MHz
80387SX (option)
16 MHz or 8 MHz, sOftware se-
lectable
3 MB, 5 MB
640x480 pixels LCD panel,
IBM VGA compatible
Buzzer
3.5", 1.44 MB, double side,
high density floppy disk drive
3.5", 42.9 MB hard disk with 29
ms average access time.
79/80 keys, 101/102-key key-
board compatible
Numeric Keypad or IBM com-
patible keyboard, 6-pin female
mini DIN connector
PS/2 Mouse, 6-pinfemale mini
DIN connector
1 asynchronous serial RS-
232C port,,9-pin male D-sub
connector
Centronics-type parallel port,
25-pin female D-sub connector
15-pin female D-sub connector
for external monitor; IBM VGA
compatible
20-pin male connector for inter-
nal 2400 bps modem (option).
External Floppy Disk Drive
port, Disk Drive 25-pin female
D-subconnector.
Provides a 16-bit interface to
the Notebook system, 96-pin
male D-sub connector
90V-270V full range adapter
4.8V, 5.0Ahr NiCd battery pack
with over-charge protection
CS 55 792
