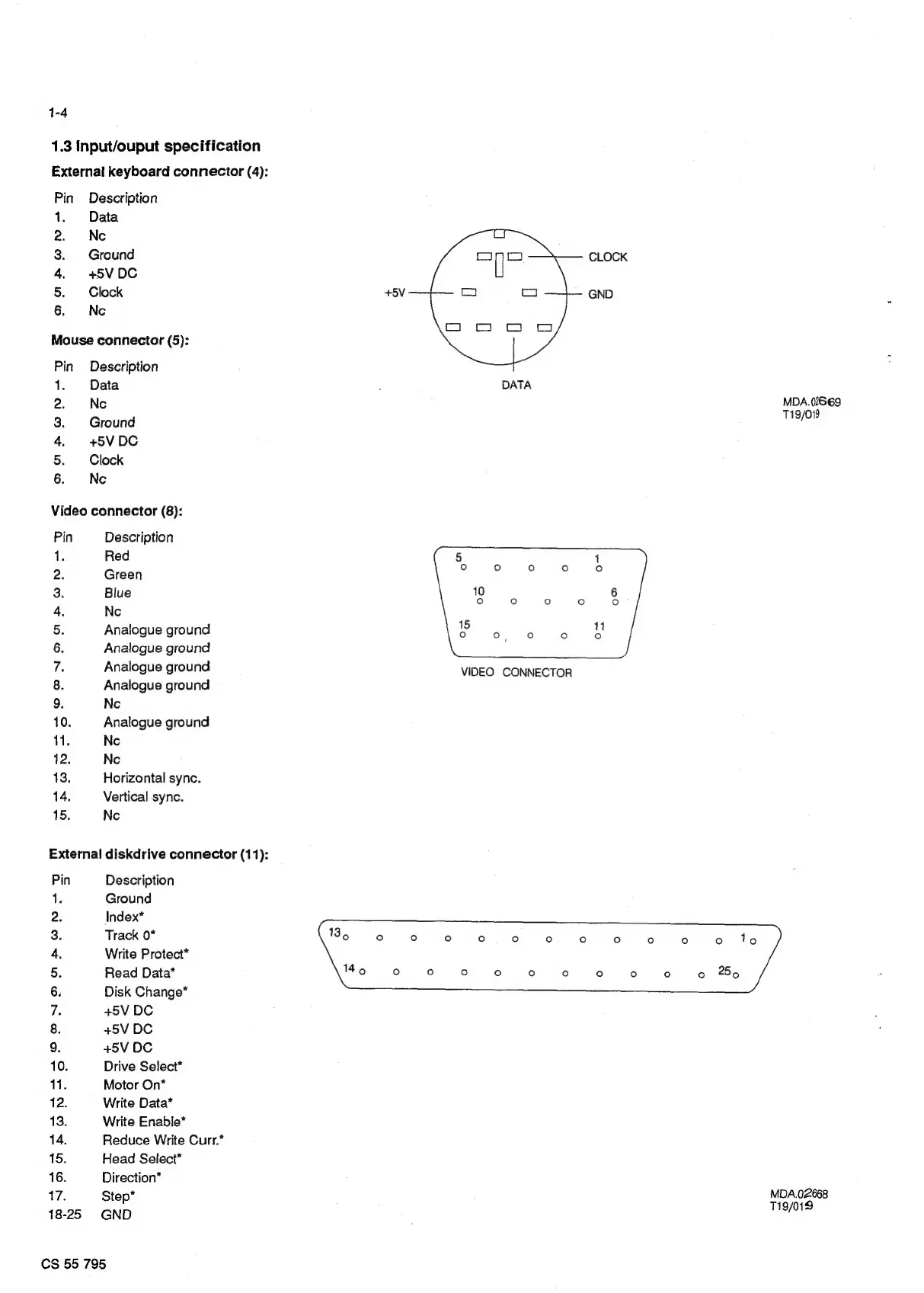

1.3 Input/ouput specification
External keyboard connector (4):
Pin Description
Data
Ne
Ground
+5V DC
Clock
Ne OrNpRwonN>
Mouse connector (5):
Pin Description
Data
Nc
Ground
+5V DC
Clock
Ne
earons
Video connector (8):
Pin Description
1. Red
2. Green
3. Blue
4. Ne
5. Analogue ground
6. Analogue ground
7. Analogue ground
8. Analogue ground
9. Ne
10. Analogue ground
11. Nc
12. Ne
13. Horizontal sync.
14. Vertical sync.
15. Ne
External! diskdrive connector (11):
a
in Description
Ground
Index*
Track 0*
Write Protect*
Read Data*
Disk Change*
+5V DC
+5V DC
+5V DC
10. Drive Select*
11. Motor On*
12. Write Data*
13. Write Enable*
14. Reduce Write Curr.*
ON PAPwONM
so
15. Head Select*
16. Direction”
17. Step*
18-25 GND
