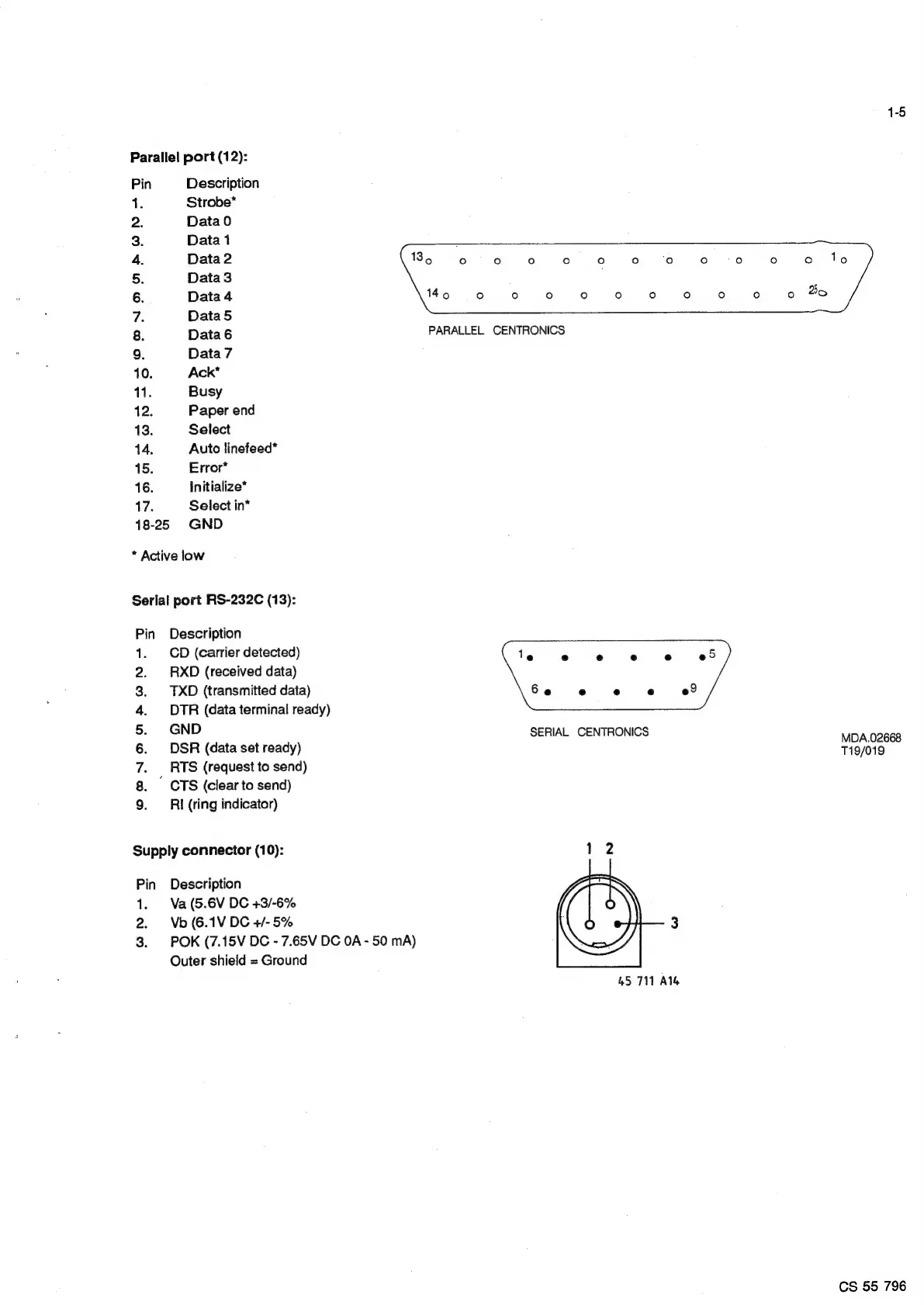

Parallel
port
(12):
Pin
Description
1.
Strobe"
2.
Data
0
3.
Data
1
4.
Data
2
5.
Data
3
6.
Data
4
7.
Data5
8.
Data
6
9.
Data
7
10.
Ack*
11.
Busy
12.
Paper
end
13.
Select
14.
Auto
finefeed*
15.
Error*
16.
Initialize*
17.
Select
in*
18-25
GND
*
Active
low
Serial
port
RS-232C
(13):
Pin
OONoOarAwWN
=
Description
CD
(carrier
detected)
RXD
(received
data)
TXD
(transmitted
data)
DTR
(data
terminal
ready)
GND
DSR
(data
set
ready)
RTS
(request
to
send)
"
CTS
(clear
to
send)
RI
(ring
indicator)
Supply
connector
(10):
Pin
1.
2.
3
Description
Va
(5.6V
DC
+3/-6%
Vb
(6.1V
DC
+/-
5%
POK
(7.15V
DC
-
7.65V
DC
0A
-
50
mA)
Outer
shield
=
Ground
PARALLEL
CENTRONICS
SERIAL
CENTRONICS
45
711
At&
MDA.02668
719/019
CS
55
796
