Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 28 LGE PDP9.
9. Circuit Descriptions, Abbreviation List, and IC Data Sheets
Index of this chapter:
9.1 X Board
9.2 Z Sustain Board
9.3 Y Drive Board
9.4 Y Sustain Board
9.5 Control Board
9.6 DC/DC Converter Part
9.7 FPC (Flexible Printed Circuit)
9.8 FFC (Flat Flexible Cable)
9.9 TCP (Tape Carrier Package)
9.10 IPM (Intelligent Power Module)
9.11 Abbreviation List
9.12 IC Data Sheets
9.1 X Board
9.1.1 Purpose
Receiving LOGIC signal from the CONTROL board and make
ADDRESS PULSE (generates Address discharge) by ON/OFF
operation, and then supplies this waveform to TCP (data).

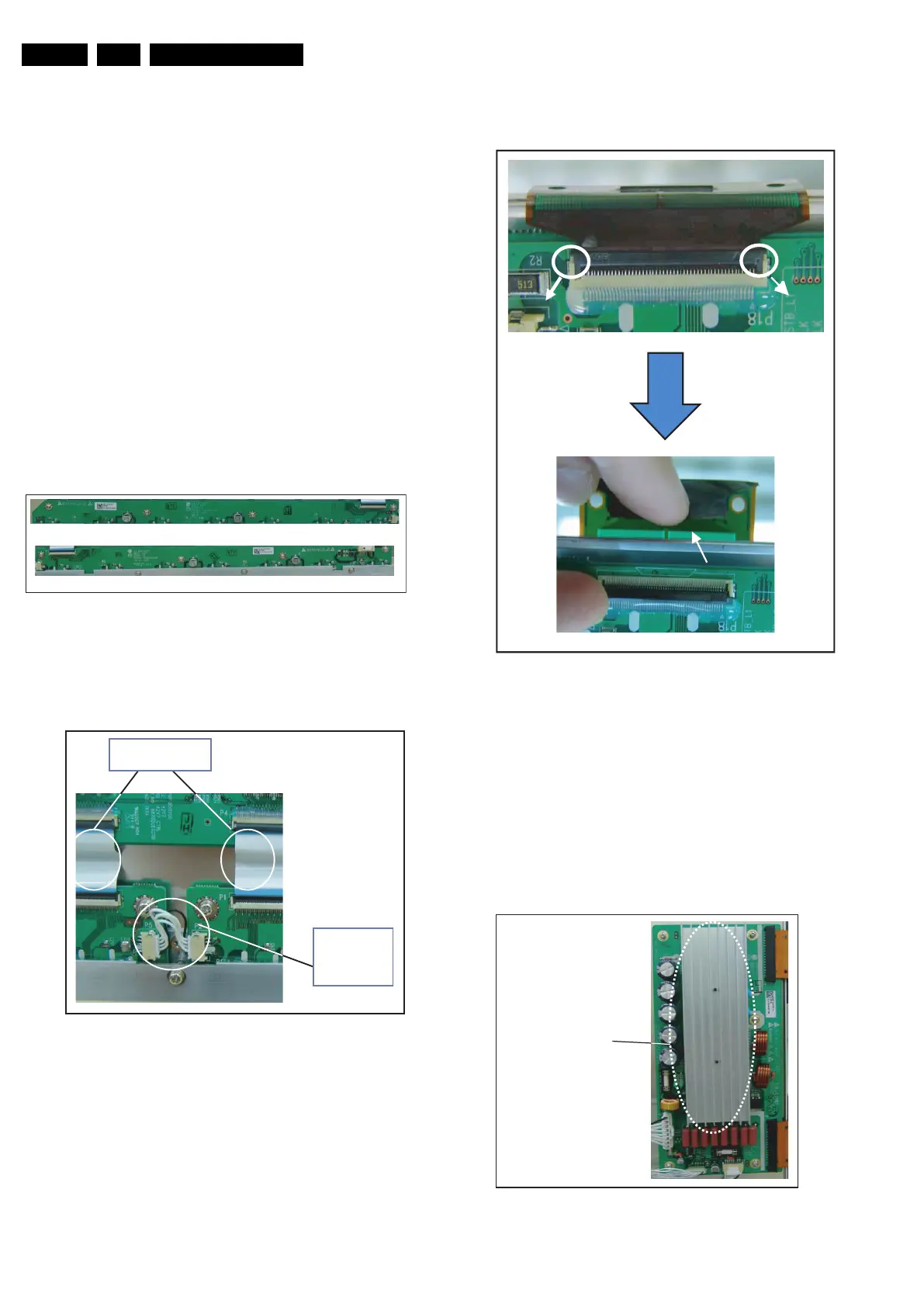

Figure 9-1 X boards
9.1.2 Dismantling
1. Remove connections between the boards:
Figure 9-2 Between CONTROL board and X board
1. Lift up lock as indicated by the arrows (handle with care, as
this part is easy to break).
2. Pull TCP as indicated (handle with care, as the TCP film
part is easy to damage).
Figure 9-3 TCP Separating
9.2 Z Sustain Board
9.2.1 Purpose
To make the SUSTAIN and ERASE pulses that generates
SUSTAIN discharge in the panel by receiving LOGIC signal
from
CONTROL board. This waveform is then supplied to the panel
through FPC (Z).
Figure 9-4 Z Sustain Board
F_15590_048.eps
040705
X Left board
X Right board
F_15590_049.eps
070705
Power
cable
Signal cable
F_15590_050.eps
040705
* IPM (Intelligent Power Module)
E/R(Energy recovery)
F_15590_051.eps
040705
To Next Page
