EN 3LGE PDP 1.

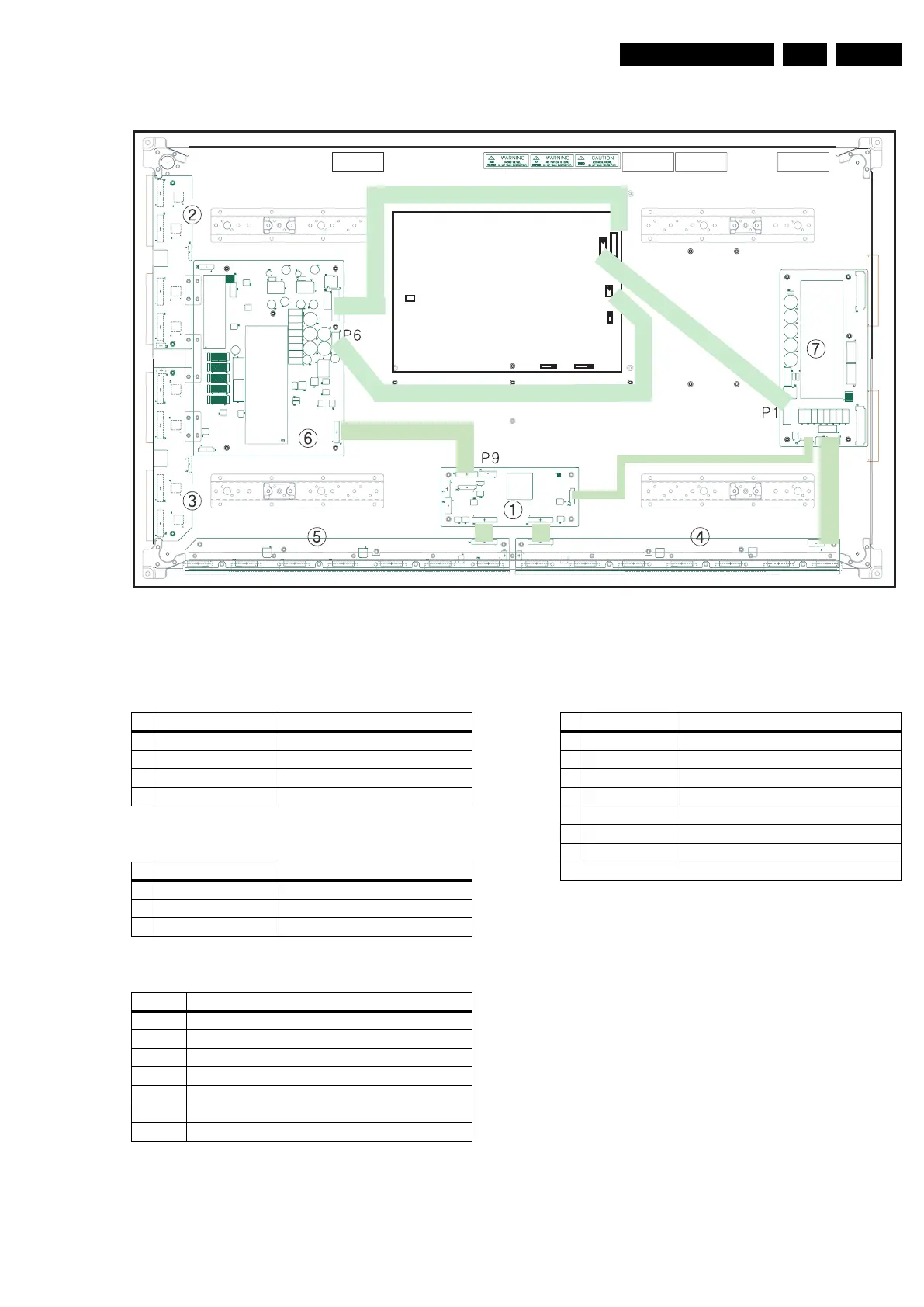

1.1.3 Connection Overview
Figure 1-7
Table 1-1 Connector signals
Table 1-2 PSU Cable Assies
Table 1-3 PSU Connectors
Table 1-4 Board overview
F_15590_002.eps
070605
CN807
G
CN806
G
1M02
G
1M46
G
1M03
G
CN1308
G
PSU
(
Power Su
pp
l
y
Unit
)
CN805
(A)
(C)
(B)
No Connector Input voltage & signal
P1 Z SUS board 5V, Va, Vs
P5 Y SUS board Vs
P6 Y SUS board 5V
P9 CTRL board Control signal
No LGE Part No. Description
A 6631Q39032A Cable assy 10p PSU->Y-SUS
B 6631Q39033A Cable assy 8p PSU->Z-SUS
C 6631Q39034A Cable assy 4p PSU->Y-SUS
No Input voltage & signal
CN806 Vs: 187 V
CN807 Vs: 187 V, Va: 65 V, 5 V
CN805 5V
CN1308 AC 220 V
1M02 +Vsnd: +18 V, -Vsnd: -18 V
1M46 8V6: 8.6 V, +12V: 12 V, +5V2: 5.2 V, Vtun: 50 V
1M03 5V_sw: 5.2 V
No LGE Part No. Description of board assy
1 6871QCH053D LVDS CTRL
2 6871QDH084A Y-DRV TOP
3 6871QDH085A Y-DRV BTM
4 6871QRH055D X-R
5 6871QLH047D X-L
6 6871QYH036C Y-SUS
7 6871QZH041A Z-SUS
For Philips order codes, refer to "Ch. 10 Spare Parts".
