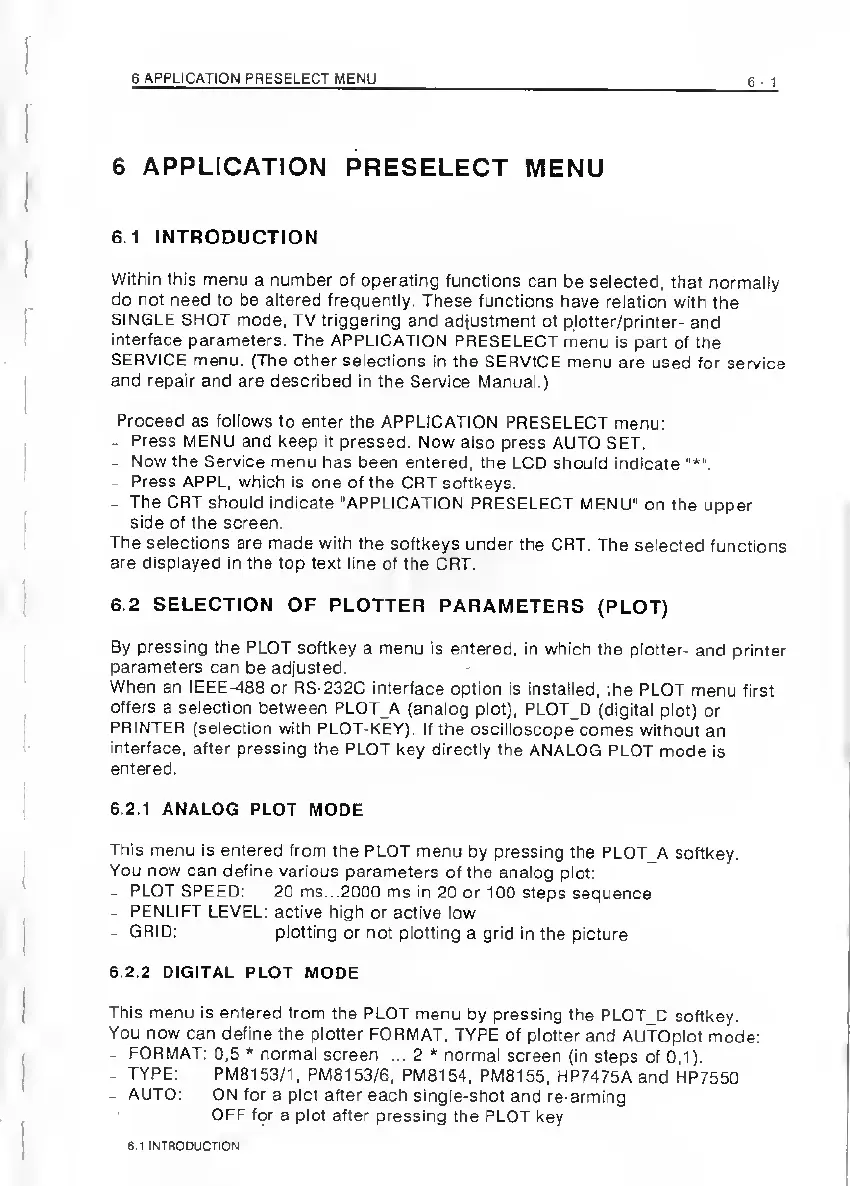

6
APPLICATION
PRESELECT
MENU
6
•
1
6
APPLICATION
PRESELECT
MENU
6.1
INTRODUCTION
Within
this
menu
a
number
of
operating
functions
can
be
selected,
that
normally
do
not
need
to
be
altered
frequently.
These
functions
have
relation
with
the
SINGLE
SHOT
mode,
TV
triggering
and
adjustment
of
plotter/printer-
and
interface
parameters.
The
APPLICATION
PRESELECT
menu
is
part
of
the
SERVICE
menu.
(The
other
selections
in
the
SERVICE
menu
are
used
for
service
and
repair
and
are
described
in
the
Service
Manual.)
Proceed
as
follows
to
enter
the
APPLICATION
PRESELECT
menu:
-
Press
MENU
and
keep
it
pressed.
Now
also
press
AUTO
SET.
-
Now
the
Service
menu
has
been
entered,
the
LCD
should
indicate
-
Press
APPL,
which
is
one
of
the
CRT
softkeys.
-
The
CRT
should
indicate
"APPLICATION
PRESELECT
MENU"
on
the
upper
side
of
the
screen.
The
selections
are
made
with
the
softkeys
under
the
CRT.
The
selected
functions
are
displayed
in
the
top
text
line
of
the
CRT.
6.2
SELECTION
OF
PLOTTER
PARAMETERS
(PLOT)
By
pressing
the
PLOT
softkey
a
menu
is
entered,
in
which
the
plotter-
and
printer
parameters
car
be
adjusted.
When
an
IEEE-488
or
RS-232C
interface
option
is
installed,
the
PLOT
menu
first
offers
a
selection
between
PLOT_A
(analog
plot),
PLOT_D
(digital
plot)
or
PRINTER
(selection
with
PLOT-KEY).
If
the
oscilloscope
comes
without
an
interface,
after
pressing
the
PLOT
key
directly
the
ANALOG
PLOT
mode
is
entered.
6.2.1
ANALOG
PLOT
MODE
This
menu
is
entered
from
the
PLOT
menu
by
pressing
the
PLOT_A
softkey.
You
now
can
define
various
parameters
of
the
analog
plot;
-
PLOT
SPEED:
20
ms...2000
ms
in
20
or
100
steps
sequence
-
PENLIFT
LEVEL:
active
high
or
active
low
-
GRID:
plotting
or
not
plotting
a
grid
in
the
6.2.2
DIGITAL
PLOT
MODE
This
menu
is
entered
from
the
PLOT
menu
by
pressing
the
PLOT_C
softkey.
You
now
can
define
the
plotter
FORMAT,
TYPE
of
plotter
and
AUTOplot
mode:
-
FORMAT:
0,5
"
normal
screen
...
2
*
normal
screen
(in
steps
of
0,1).
-
TYPE:
PM8153/1,
PM8153/6,
PM8154,
PM8155,
HP7475Aand
HP7550
-
AUTO:
ON
for
a
plot
after
each
single-shot
and
re-arming
OFF
for
a
plot
after
pressing
the
PLOT
key
6.1
INTRODUCTION
