APPLICATIONS
4-35

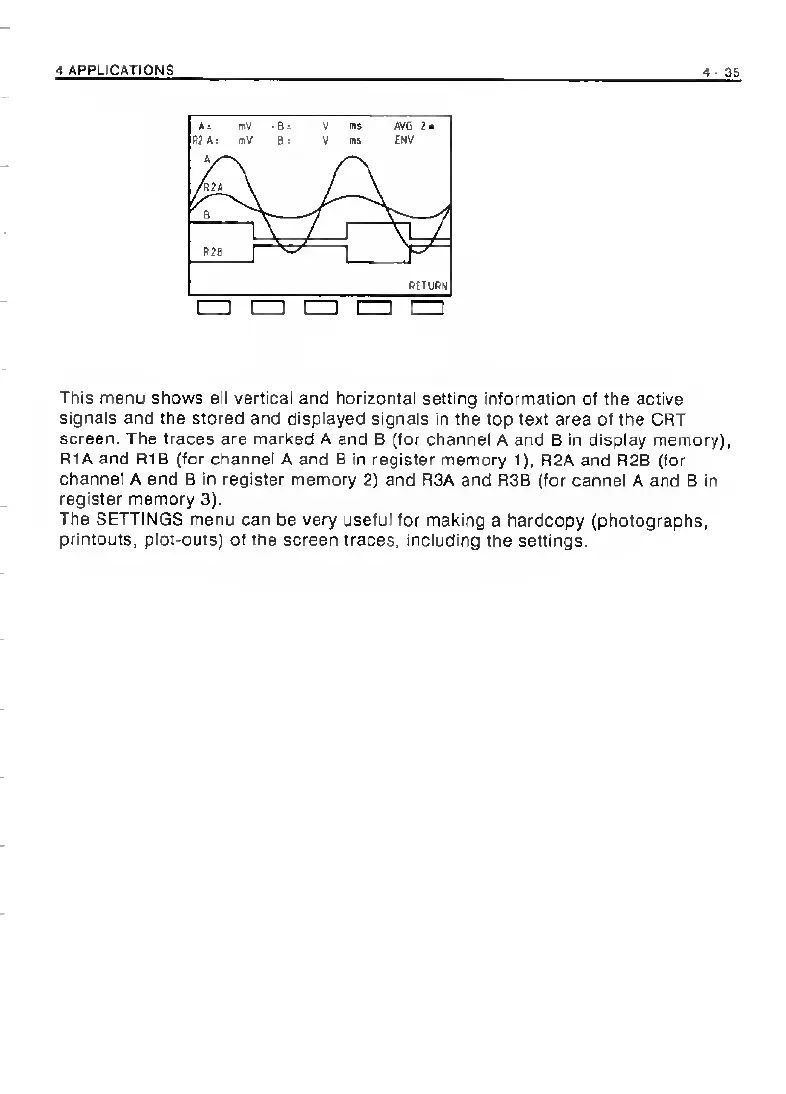

This
menu
shows
all
vertical
and
horizontal
setting
information
of
the
active
signals
and
the
stored
and
displayed
signals
in
the
top
text
area
of
the
CRT
screen.
The
traces
are
marked
A
and
B
(for
channel
A
and
B
in
display
memory),
R1A
and
RIB
(for
channel
A
and
B
in
register
memory
1),
R2A
and
R2B
(for
channel
A
and
B
in
register
memory
2)
and
R3A
and
R3B
(for
cannel
A
and
B
in
register
memory
3).
The
SETTINGS
menu
can
be
very
useful
for
making
a
hardcopy
(photographs,
printouts,
plot-outs)
of
the
screen
traces,
including
the
settings.
