Mechanical Instructions
EN 26 TPM10.1E LA4.
2014-Jul-18
back to
div.table
4.3.1 Rear Cover
Refer to Figure 4-25
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull
out the base assy from the set. Then remove the fixation
screws [2], [3], [4] that secure the rear cover. Refer to
Figure 4-25
for details.
2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

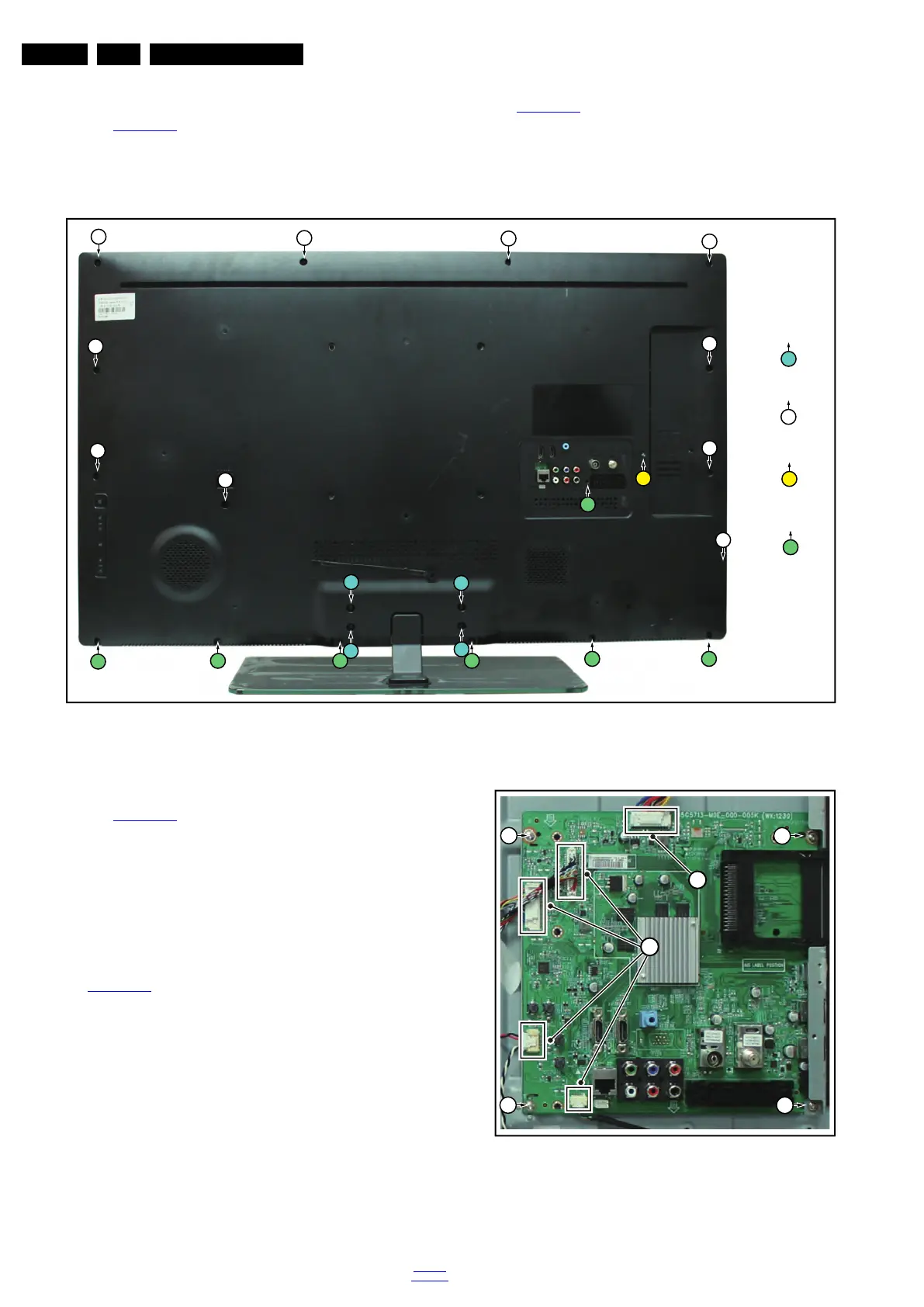

Figure 4-25 Rear cover removal
4.3.2 Small Signal Board (SSB)
Refer to Figure 4-26
for details.
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.
1. Release the clips from the LVDS connector that connect
with the SSB [1].
Caution: be careful, as these are very fragile connectors!
2. Unplug all other connectors [2].
3. Remove all the fixation screws from the SSB [3].
4. The SSB can now be shifted from side connector cover,
then lifted and taken out of the I/O bracket. Refer to
Figure 4-26
for details.
Figure 4-26 SSB removal
19430_107_130116.eps
130116
1
M4 × 10
M3 × 8
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
M3 × 4
3
3
Q3 × 10
4
4
4
4
4
4
4 4
19430_108_130116.eps
130116
2
1
3
3
3
3
