7.2.3 Connector overview
Table 7-1 Connector overview
7.3 DC/DC Converters
The on-board DC/DC converters deliver the following voltages
(depending on set execution):
• +5V-STANDBY, permanent voltage for the Stand-by
controller, LED/IR receiver and controls
• +12V, input from the power supply for the panel common
(active mode)
• +24V, input from the power supply for audio amplifier
• +1V2, core voltage supply for MT5580
• +1V5, supply voltage for DDR2 (diagram B03B)
• +3V3, general supply voltage
• +3V3-TUN, supply voltage for tuner
• +5V-USB, input intermediate supply voltage for USB
• +3V3 from the power supply for the scaler IC MT5580
• +12V input from the power supply for the ambilight
common
• +3V3-DVBS, clean voltage for DVB-S2 channel decoder
• +1V2-DVBS, core voltage for DVB-S2 channel decoder.

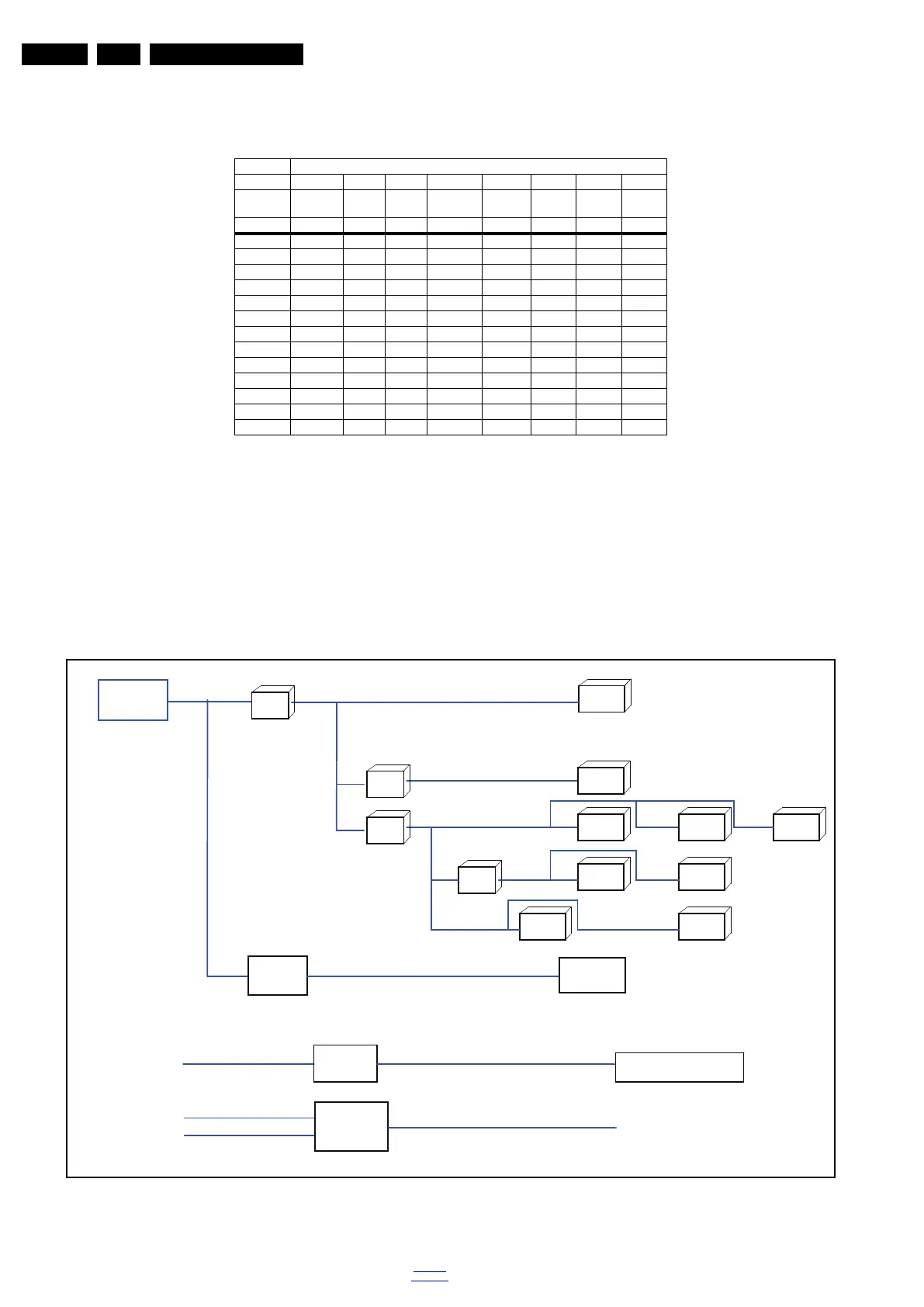

Figures gives a graphical representation of the DC/DC
converters with its current consumptions:
Figure 7-4 DC/DC converters
Connector
Number CN8504 CN902 CN8501 CN9101 CN8101 CN9101 CN903 CN902
Descriptio
n to panel to SSB to panel to SSB to panel to SSB to panel to SSB
Pin 8 13 12 13 12 13 12 13
1 LED7 P_Scan VLED n.c. VLED P_Scan ON/OFF P_Scan
2 LED8 +5.2V n.c. +5.2V n.c. +5.2V DIM +5.2V
3 LED9 +5.2V - +5.2V LED6 +5.2V GND +5.2V
4 LED10 PS_ON LED6 PS_ON LED4 PS_ON GND PS_ON
5 LED11 +24V LED5 +24V LED2 +24V GND +24V
6 LED12 +24V n.c. +24V n.c. +24V GND +24V
7 n.c. GND n.c. GND n.c. GND GND GND
8 VLED GND LED3 GND LED1 GND +24V GND
9 - GND LED2 GND LED3 GND +24V GND
10 - +12V LED1 +12V LED5 +12V +24V +12V
11 - +12V n.c. +12V n.c. +12V +24V +12V
12 - DIM VLED DIM VLED DIM +24V DIM
13 - ON/OFF - ON/OFF - ON/OFF - ON/OFF
19430_202_130130.eps
130130
LDO
U701
MAIN CHIP
MT5580
DDR*3
NT5CB256M8GN-D1
USB PWR
+5V_SW
BUCK CONVERTER
POWER SWITCH
DDR 1V5
+5VSB
TDQS-A901F
TU101
TDSY- G 2 30D
TU102
3V3-TUNER
P24V
DV15_DDR
PCMCIA CARD
U4100
GL850G-OHG
+5V_SW
DV15_DDR
LDO
U102
CI CARD PWR
CI2_VCC
STB_PWR5V
DV33 & AV33
AVDD3V3
U703
+5V_SW
DV33
MT5136AN
U103
DV3V3
MAIN CHIP
MT5580
U702
MT5580
PVDD
FB753
FB752
AMP STA381BWTR
P12V
PANEL_VCC+5V_SW
AON4421
Q750
Q702
