Circuit Descriptions
EN 49TPM10.1E LA 7.
2014-Jul-18
back to
div.table
7.2 Power Supply
Refer to figure Figure 7-3 for the power architecture of this
platform.

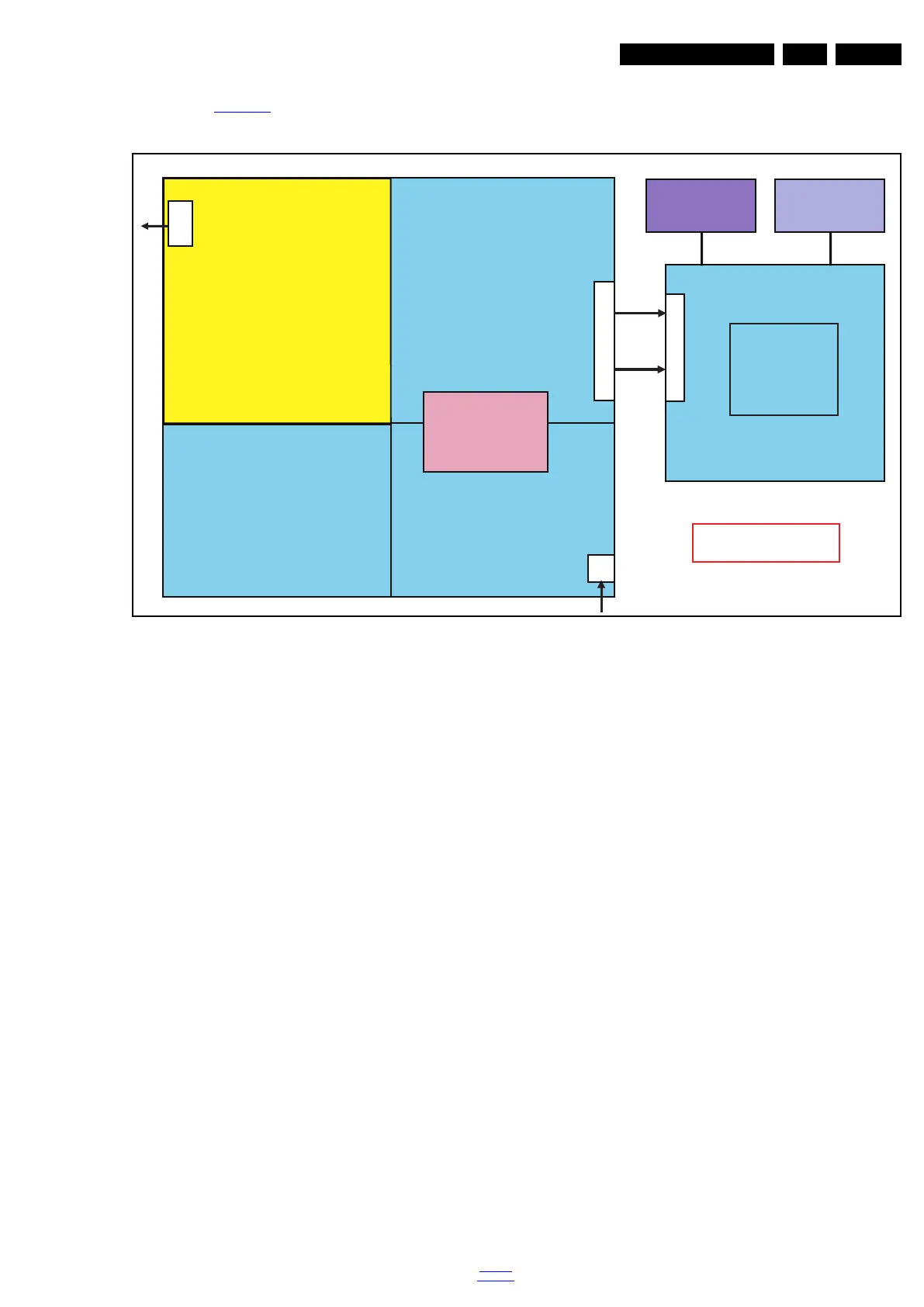

Figure 7-3 Power Architecture
7.2.1 Power Supply Unit
All power supplies are a black box for Service. When defective,
a new panel must be ordered and the defective one must be
returned, unless the main fuse of the panel is broken. Always
replace a defective fuse with one with the correct
specifications! This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
panels.
Important delta’s with the TPM10.E LA classis platform are:
• New power architecture for LED backlight
• “Boost”-signal is now a PWM-signal + continuous variable.
The control signals are:
• Stand-by
• Inverter “on/off”
• DIM (PWM) (not for PSDL)
In this manual, no detailed information is available because of
design protection issues.
The output voltages to the chassis are:
• +3V3-STANDBY (Stand-by mode only)
• +12V (on-mode)
• +Vsnd (+24V) (audio power) (on-mode)
• +24V (bolt-on power) (on-mode)
• Output to the display; in case of
- IPB: High voltage to the LCD panel
- PSL and PSLS (LED-driver outputs)
- PSDL (high frequent) AC-current.
7.2.2 Diversity
The diversity in power supply units is mainly determined by the
diversity in displays.
The following displays can be distinguished:
• CCFL/EEFL backlight: power panel is conventional IPB
• LED backlight:
- side-view LED without scanning: PSL power panel
- side-view LED with scanning: PSLS power panel
- direct-view LED without 2D-dimming: PSL power panel
- direct-view LED with 2D-dimming: PSDL power panel.
PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight
with 2D-dimming.
19430_201_130128.eps
130128
Display power
Platform
MTK5580
PFC
Platform power
1 power- PCB
LVDS AMP
Low stby
power
Ac-input + Mains filter
BL-ON/OFF
AC IN
CN9901 for 715G5793
CN9901 for 715G5827
CN901 for 715G5246
CN9902 for 715G5792
CN901 for 715G5778
CN8101 for 715G5793
CN8101 for 715G5827
CN903 for 715G5246
CN8501 for 715G5792
CN8506 for 715G5778
DIM
24V
12V
12V
5V
CN700
AMP
24V
