EN 7TPM10.1E LA 2.
2014-Jul-18
back to
div.table
10 - HDMI 1: Digital Video - In, Digital Audio with ARC -
In/Out

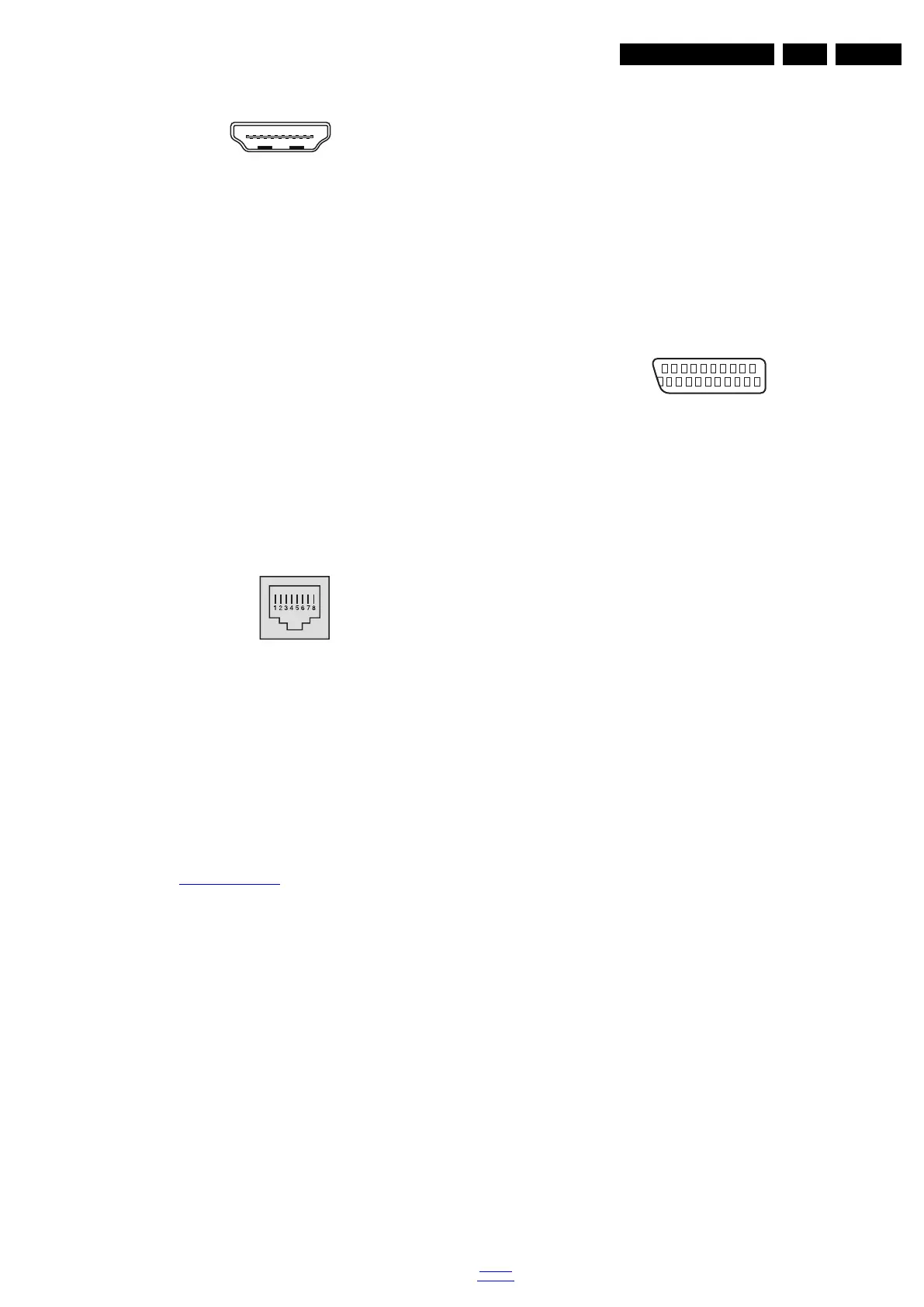

Figure 2-4 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5-Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8-Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
11 - RJ45: Ethernet
Figure 2-5 Ethernet connector
1 - TD+ Transmit signal k
2 - TD- Transmit signal k
3 - RD+ Receive signal j
4 - CT Centre Tap: DC level fixation
5 - CT Centre Tap: DC level fixation
6 - RD- Receive signal j
7 - GND Gnd H
8 - GND Gnd H
12 - Service / UART
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
13- Cinch: Video YPbPr - In, Audio - In
Gn - Video - Y 1 V
PP
/ 75 W jq
Bu -Video - Pb 0.7 V
PP
/ 75  jq
Rd - Video - Pr 0.7 V
PP
/ 75  jq
Wh - Audio - L 0.5 V
RMS
/ 10 k jq
Rd - Audio - R 0.5 V
RMS
/ 10 k jq
14 - Cinch: Digital Audio - Out
BK - Coaxial 0.4 - 0.6V
PP
/ 75 W kq
15 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
Figure 2-6 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 k k
2 - Audio R 0.5 V
RMS
/ 10 k j
3 - Audio L 0.5 V
RMS
/ 1 k k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 k j
7 - Video Blue/C-out 0.7 V
PP
/ 75  jk
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75  j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red/C 0.7 V
PP
/ 75  j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75  j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75  k
20 - Video CVBS/Y 1 V
PP
/ 75  j
21 - Shield Gnd H
2.4 Chassis Overview
Refer to 9. Block Diagrams for PWB/CBA locations.
10000_017_090121.eps
090428
19
1
18 2
10000_025_090121.eps
120320
21
20
1
2
10000_001_090121.eps
090121
