EN 6 TPM10.1E LA2.
2014-Jul-18
back to
div.table
2.3 Connections

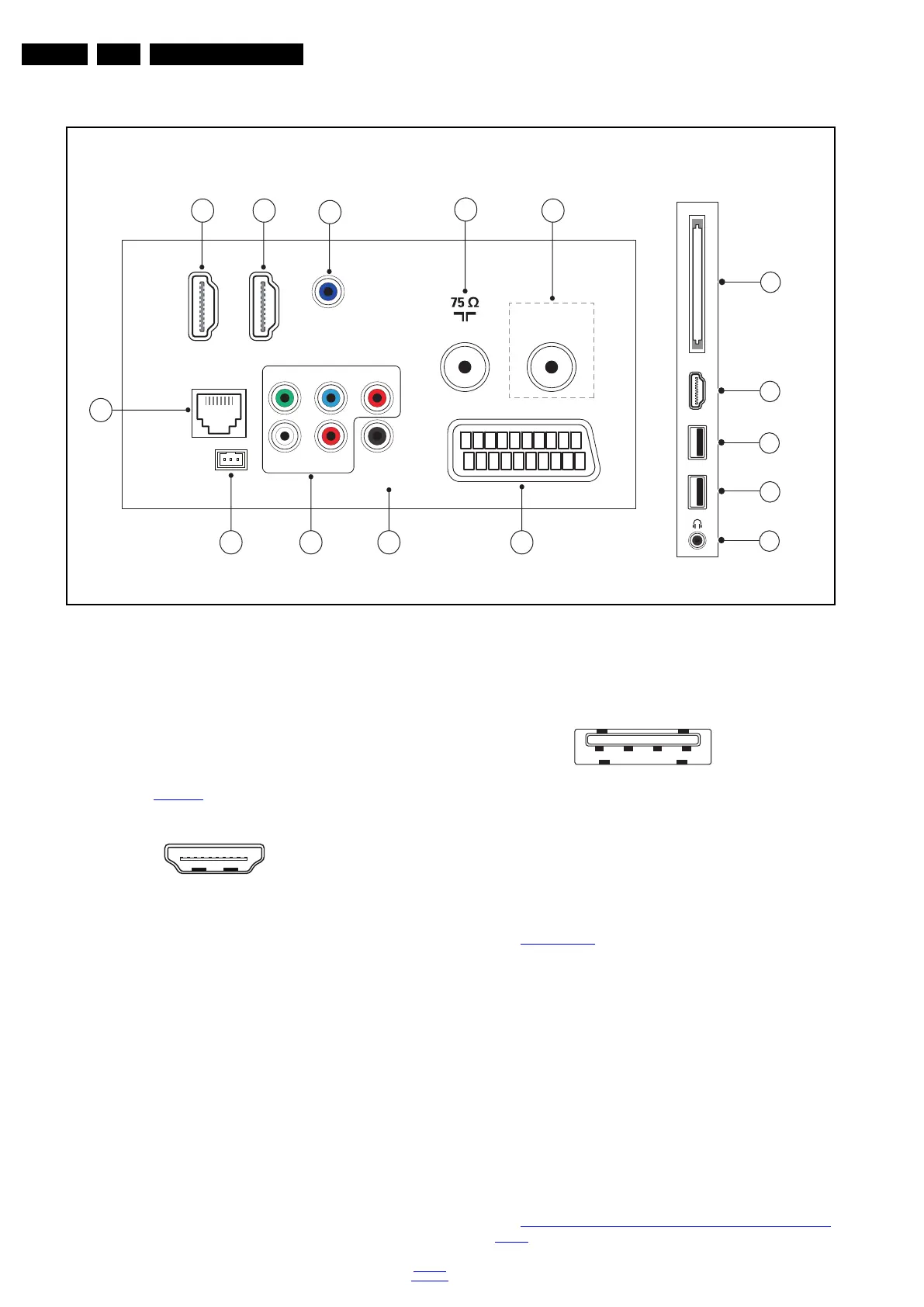

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - Common Interface
68p- See figure 10-10-13
jk
2 - HDMI: Digital Video - In, Digital Audio - In/Out
Figure 2-2 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5-Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8-Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 -Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 -n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 -+5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
3 - USB2 2.0
Figure 2-3 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
4 - USB1 2.0
See
3 - USB2 2.0
5 - Head phone (Output)
Bk - Head phone 80 - 600  / 10 mW ot
2.3.2 Rear Connections
6 - SAT - In
Signal input from an SAT.
7 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
8 - Audio - In: Left / Right, VGA
Bu -Audio L/R in 0.5 V
RMS
/ 10 k jq
9 - HDMI 2: Digital Video - In, Digital Audio - In/Out
See
10 - HDMI 1: Digital Video - In, Digital Audio with ARC -
In/Out
HDMI
USB 2
USB 1
CI
NETWORK
TV ANTENNA SAT
DIGITAL
AUDIO OUT
LR
CVBS/Y Pb
Pr
SERV.U
AUDIO IN
DVI
HDMI 1
ARC
HDMI 2
SCART
(RGB/CVBS)
19430_001_130110.eps
130227
1
2
3
4
5
6
7
11
910
8
12 13
14 15
Side ConnectorsRear Connectors
(optional)(optional) (optional)
(optional)
(optional)
10000_017_090121.eps
090428
19
1
18 2
1 2 3 4
10000_022_090121.eps
090121
