Phonic DMX1501 User Manual

8

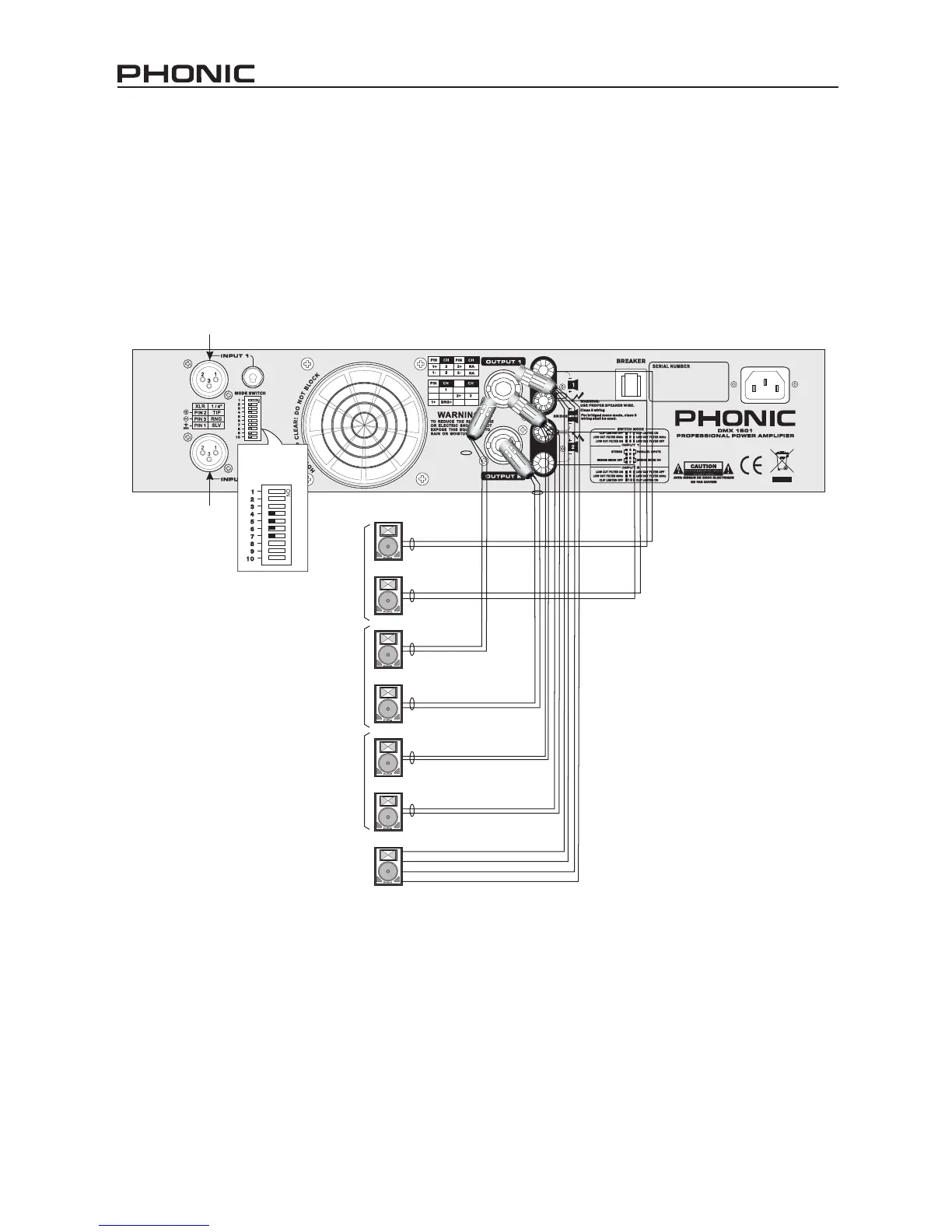

DMX1501/2501
Left (or CH1, or HF)
Right (or CH2, or LF)
STEREO MODE
2-
2+
HF 1+
HF 1-
LF 2+
LF 2-
1-
1+
1-
1+
1-
1+
CH2-
CH2+
CH1+
CH2+
CH1+
CH1-
Left
Right
Left
Right
Left
Right
left (or Right)
or
or
Set Amp Mode
to Stereo
MODE SWITCH
PARALLEL / STEREO / BRIDGE MONO
Turn the power off before changing the operation mode
as to avoid damaging your amplier. The Number 4
and 5 DIP switches allow users to change between
stereo and parallel input modes, whereas DIP switch-
es 6 and 7 are used to activate bridge mono mode.
Stereo Mode: in stereo mode, each channel of the
amplier runs independently with its own signal and
speakers. To set the amplier to stereo mode, set
DIP switches 4, 5, 6 and 7 to the left position. The
loading of each speaker in stereo mode should be
above 2 ohms.
