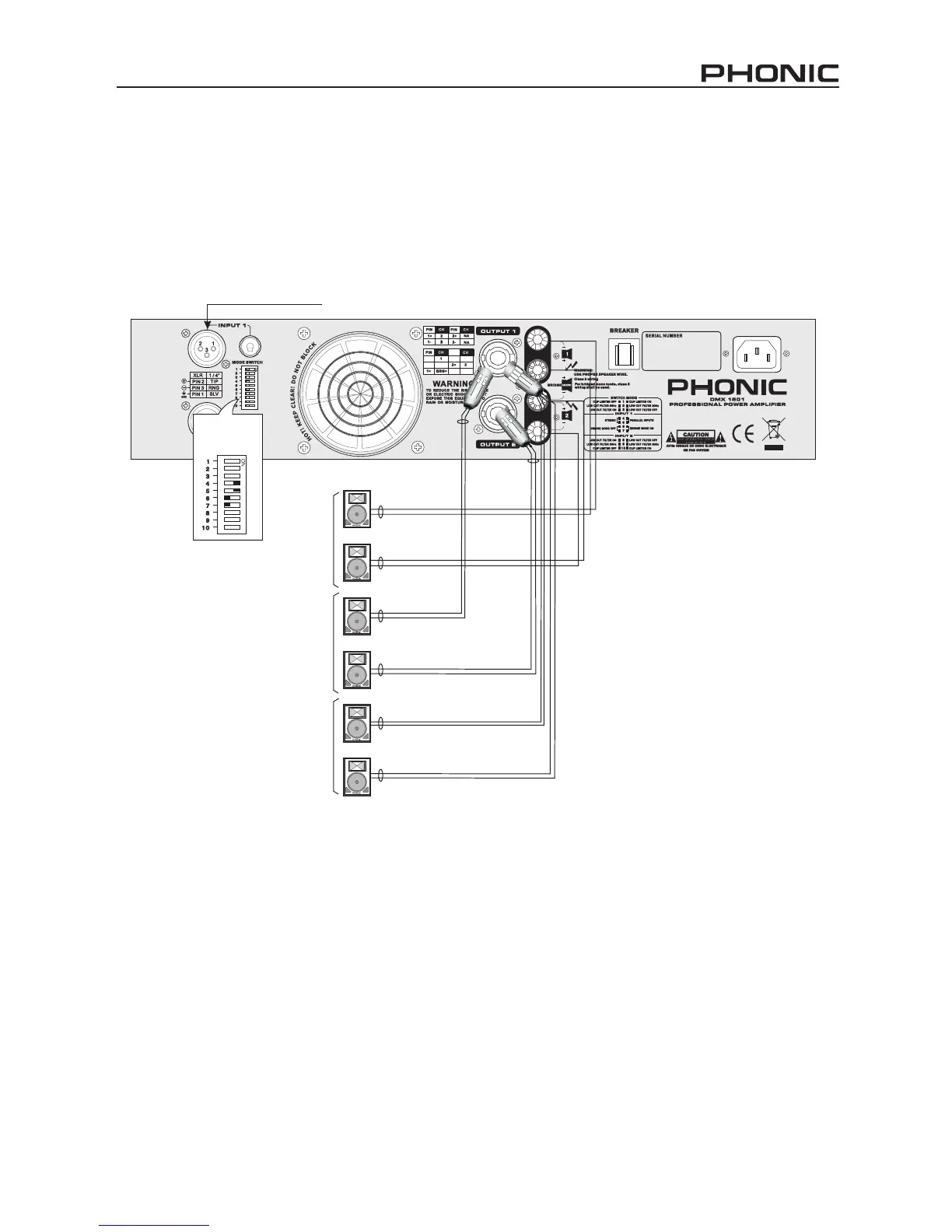

Parallel Mode: this mode allows the input of chan-
nel 1 to feed channel 2 also, allowing the channel
1 and 2 outputs to drive their own speakers inde-
pendently, however with the same source. To set
to parallel mode, DIP switches 4 and 5 should be
set to the right, however switches 6 and 7 should be
positioned to the left. The loading of each speaker in
parallel mode should be above 2 ohms.
