3 Product Description
H-845 Hexapod System MS222E Version: 2.1.1 13
3.3 Product View
3.3.1 Hexapod

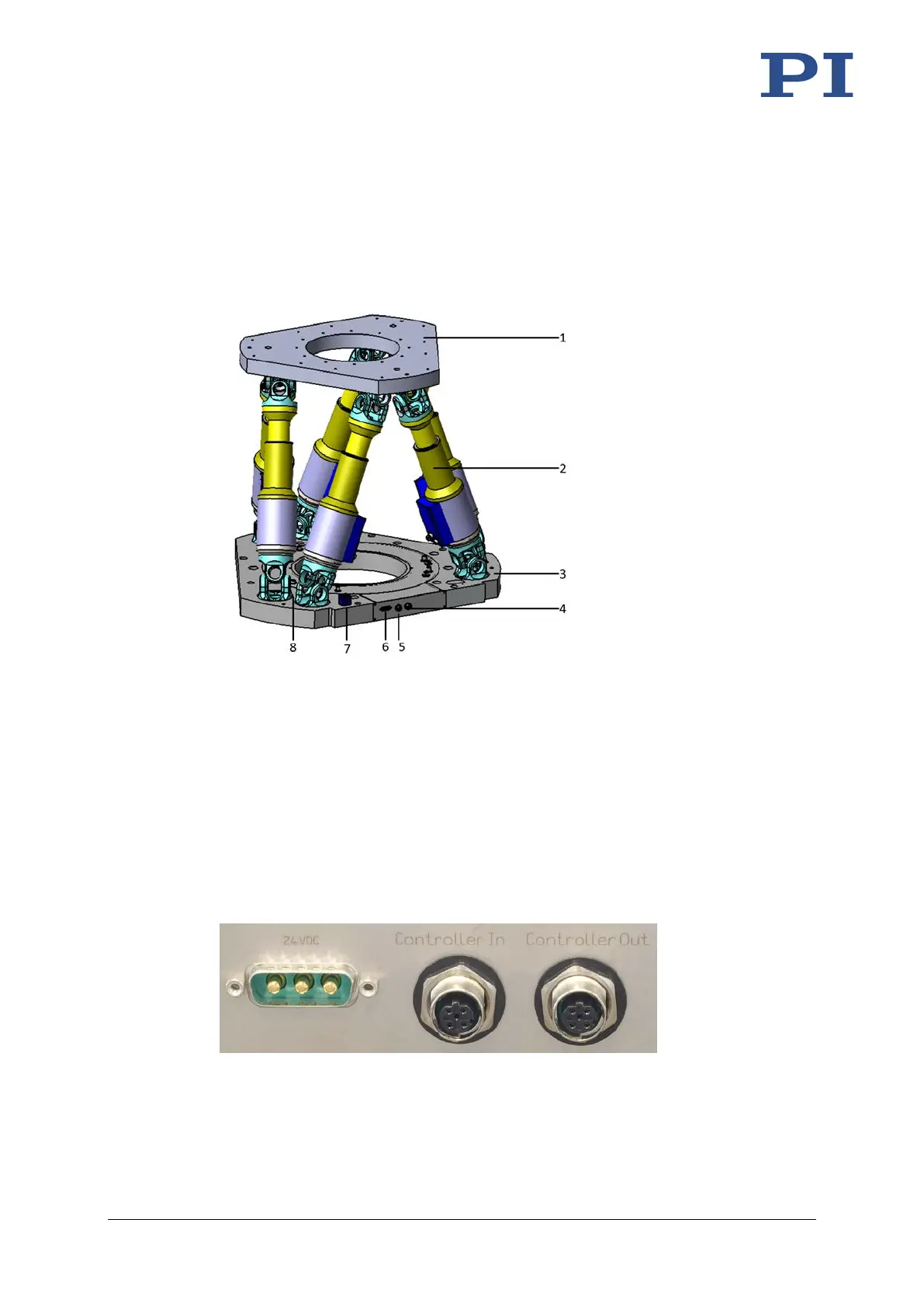

Figure 1: Hexapod
1 Motion platform
2 Strut
3 Base plate
4 Socket for data transmission cable (Controller Out)
5 Socket for data transmission cable (Controller In)
6 Panel plug for power supply cable (24 VDC)
7 Coordinate cube
8 “Risk of crushing“ warning sign
Figure 2: Connections at hexapod base plate
