3 Product Description
18 Version: 2.1.1 MS222E H-845 Hexapod System

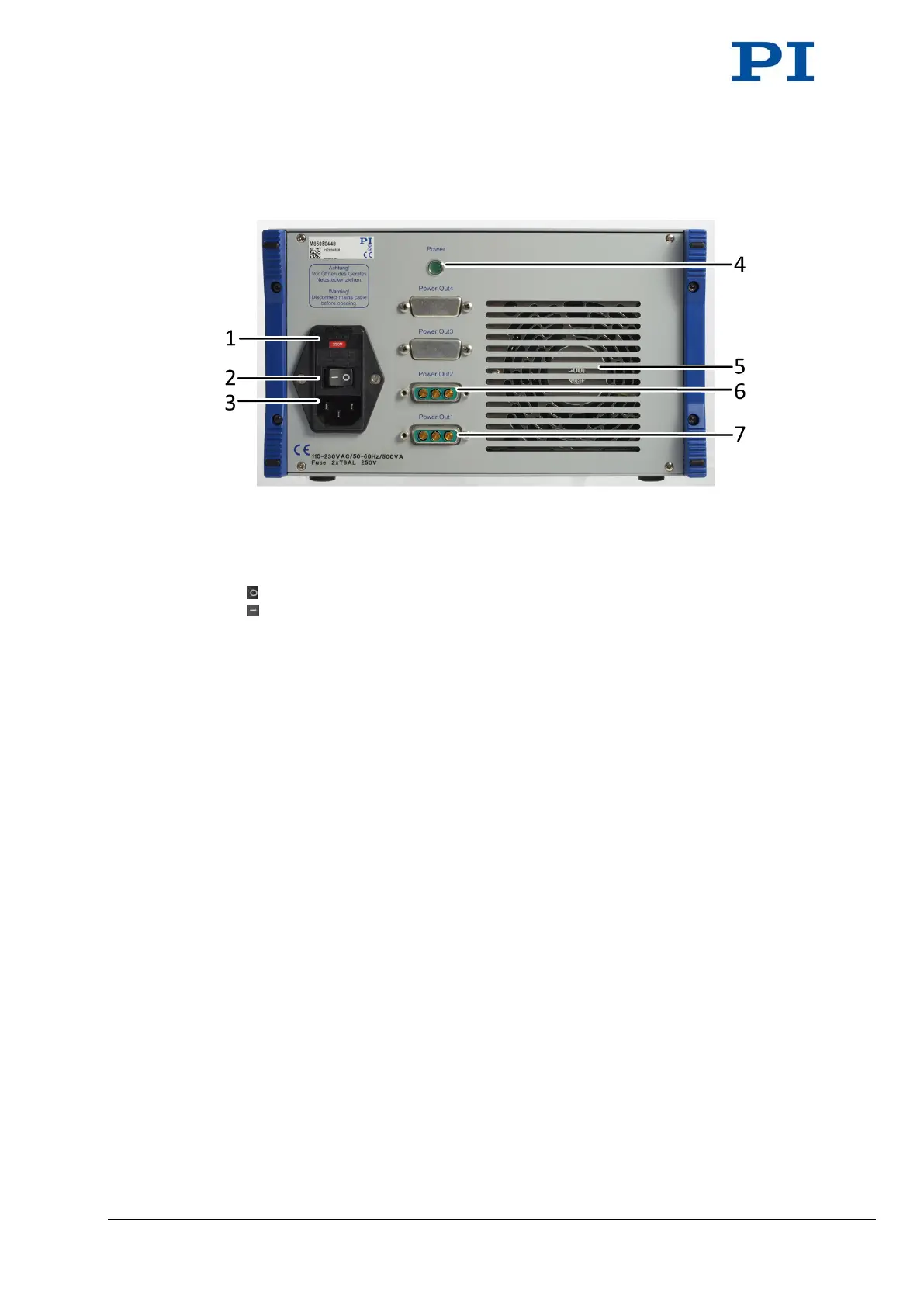

Figure 6: Rear panel of M850B0448 power supply
1. Fuse carrier for two fuses with IEC rating T8AL
2 Power switch:
position: power supply is switched off
position: power supply is switched on
3 Panel plug for line cord
4 Power LED (Power)
5 Fan
6 Sub-D 3W3 socket (Power Out 2) for 24 V DC output
7 Sub-D 3W3 socket (Power Out 1) for 24 V DC output
