42 Version: 2.1.1 MS222E H-845 Hexapod System

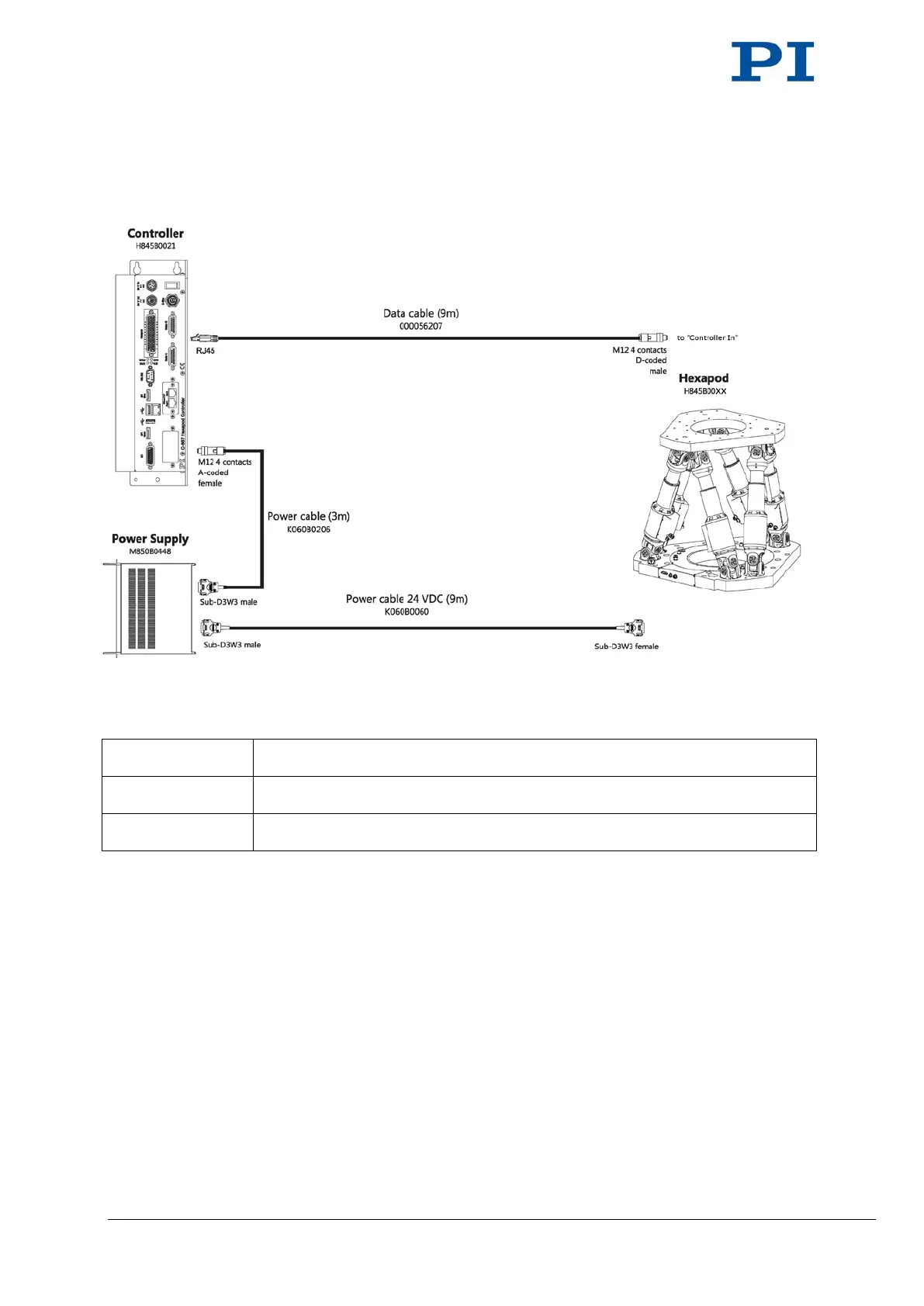

Figure 18: Connection diagram for cable set
K060B0060 Power supply cable for hexapod, Sub-D 3W3 (m) to Sub-D 3W3 (f), 9 m
K060B0206 Power supply cable for controller, Sub-D 3W3 (m) to M12 (f), 3 m
000056207 Data transmission cable, RJ45 to M12 (m), 9 m
