Installation
4.2.2 P5010 AVM™2
A
A
B
1
2
3

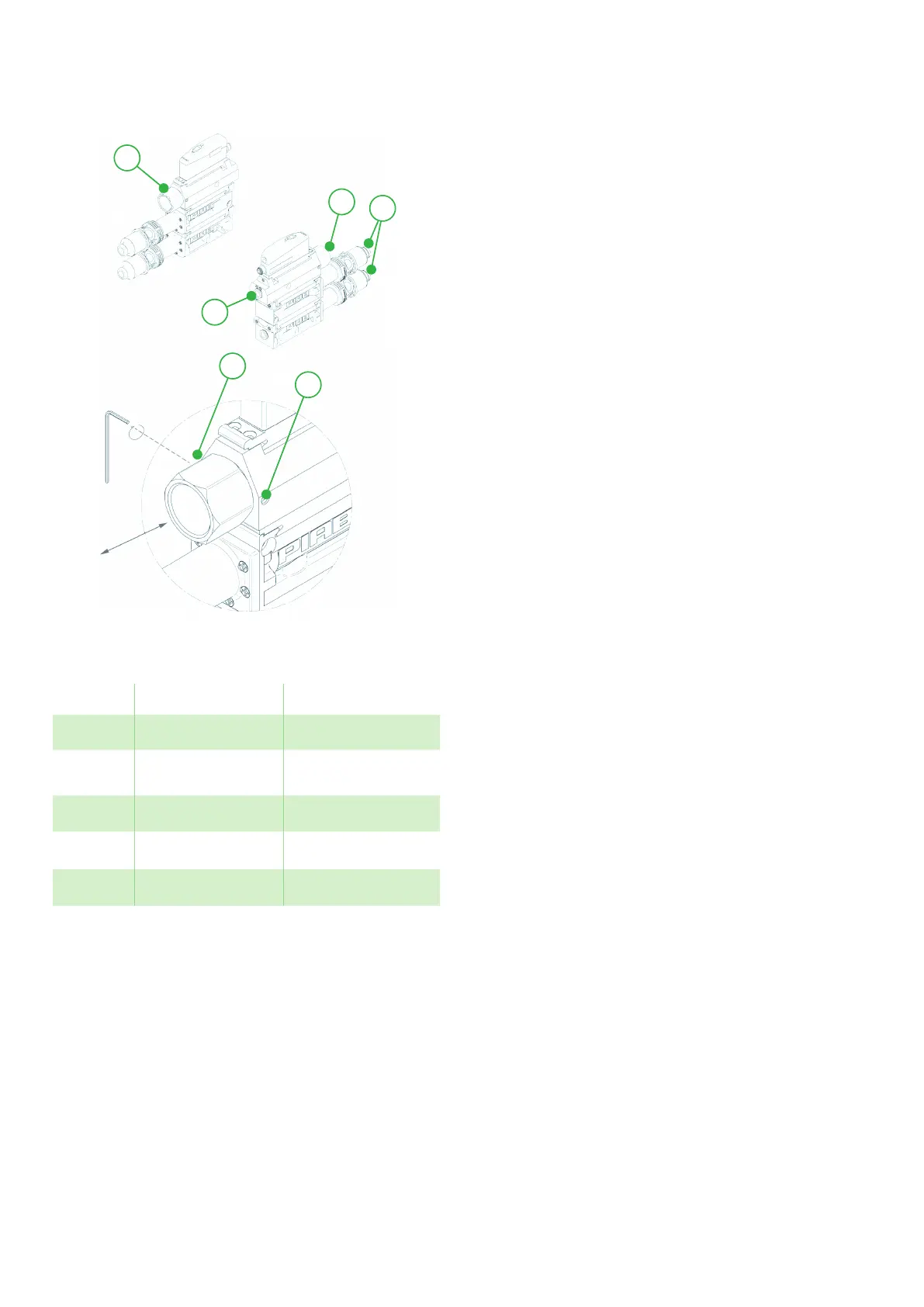

Figure 7 P5010 AVM™2.
Position Description
Note
1
Compressed air
Ø3/8”, Ø10mm
2
Vacuum
G3/4”, G1/2”, 3/4”
NPSF, 1/2” NPSF
3
Exhaust
Ø16mm
A Loosen the screws
B 3/4” (option 1/2”)
For more detailed information see the dimensional
drawing.
