3.1 Manufacturer
Piab AB
P.O. Box 146
SE-18212 DANDERYD
SWEDEN
3.1.1 Identification label
Each unit is identified by a label with identification
information. For any communication with Piab AB or
service centers always refer to the label information.
3.2 Product overview
AVM™2 (Automatic Vacuum Management) is a
control unit for vacuum ejectors.
1
2

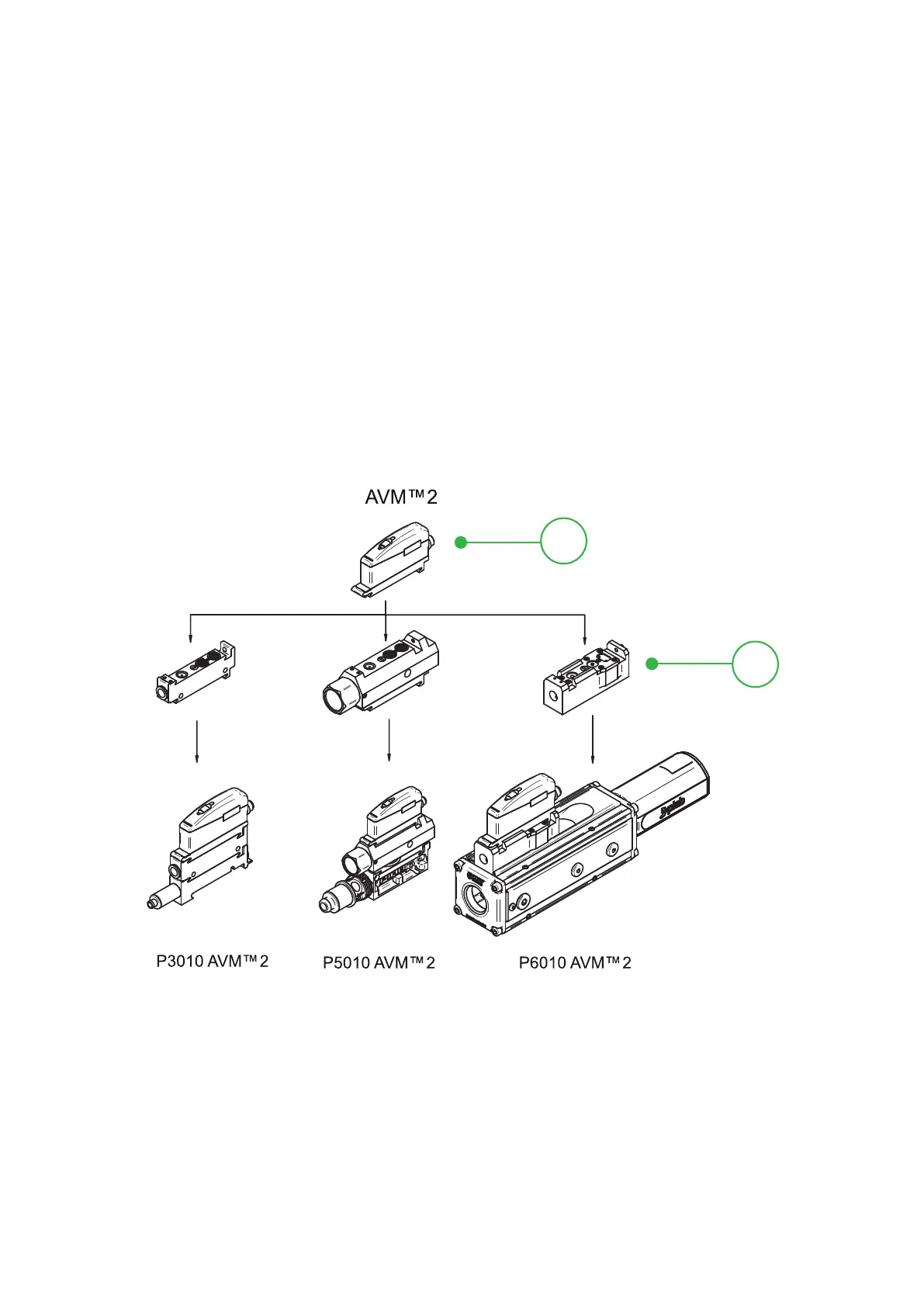

Figure 1 1: Control unit, 2: valve units.
3.2.1 Design
•
Modular in two separate main sections, one
electronic unit and one valve unit.
•
Design that maximizes the blow-off efficiency.
•
Protective covers against dust and humidity, IP65
[NEMA 4].
•
Compact and slim design.
•
M12 8-pin electric connection. Suitable cables are
available as accessories.
•
Simple setting of desired signal levels for vacuum
via a rotary switch. S2 is always the deeper
vacuum level as compared to S1.
•
PNP or NPN is selectable via contact pins.
