PIAB AVM 2 - Cable Assemblies

ManualAVM
TM
2Page 15/24
Installation
4.3.3 NPN type

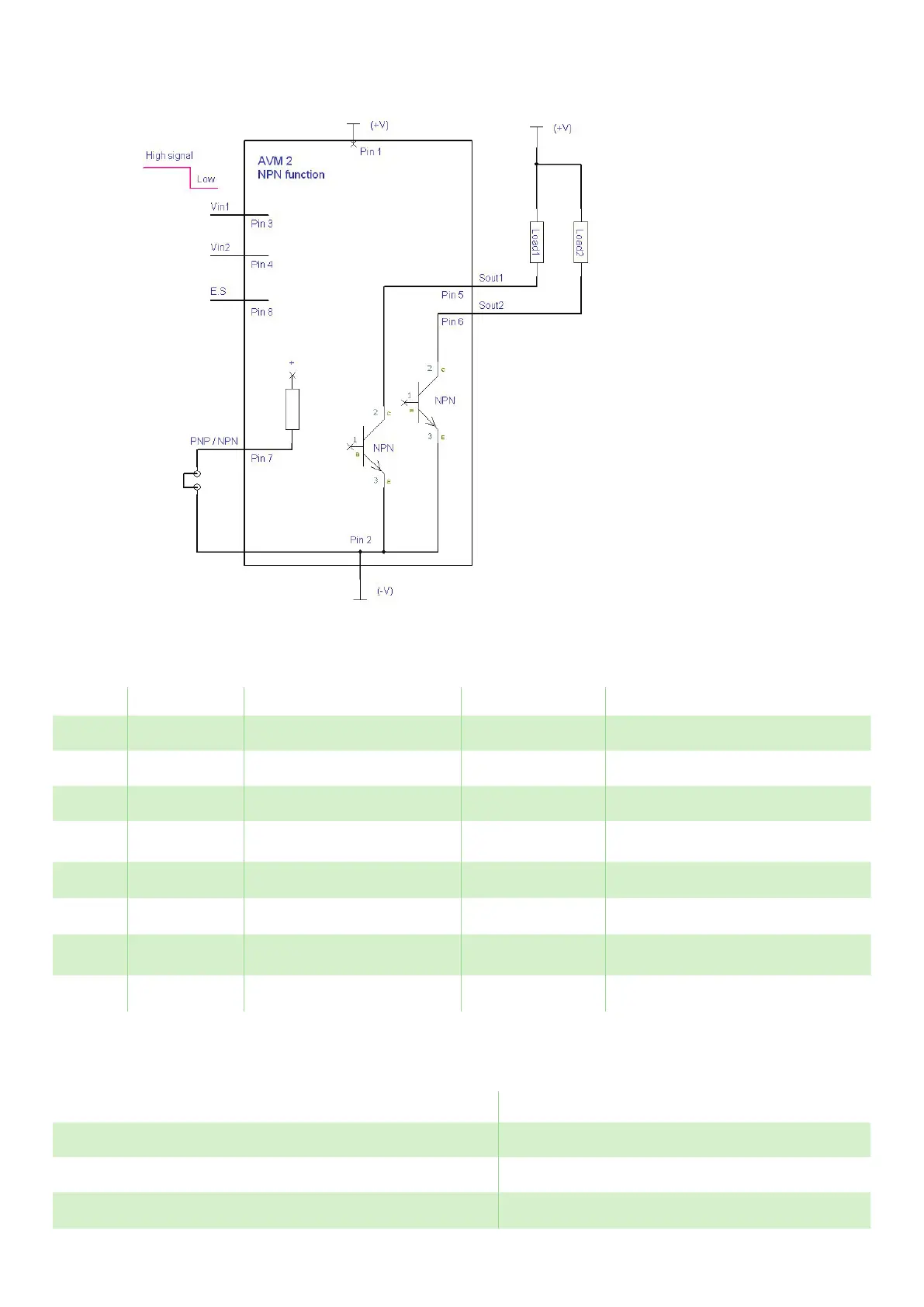

Figure 11 Schematics NPN.
NPN type
Pin Name
Description Note Wiring color cable 0110238
1 Supply 24VDC (V+) White
2 GND Common (V-) Brown
3 V
in
1 Control signal, on/off Green
4 V
in
2 Control signal, blow-off Option: automatic
blow-off, 1 sec
Yellow
5 S
out
1 Output signal sensor S1 Grey
6 S
out
2 Output signal sensor S2 Pink
7 NPN Selector input Connect to pin 2 =
NPN
Blue
8 SES Control signal ES Red
4.4 Cable assemblies
Description Art no
Cable M12 8-pin female, PUR, L=2m 0110238
Y-cable M12 8-pin female, 2xM12 4-pin male, PNP, PUR, L=2m 0118407
Y-Cable M12 8-pin female, 2xM12 5-pin male, NPN, PUR, L=2m 0120229
