PIAB AVM 2 - P5010 AVM2 Exploded View; P6010 AVM2 Exploded View

ManualAVM
TM
2Page 22/24
Service and repair

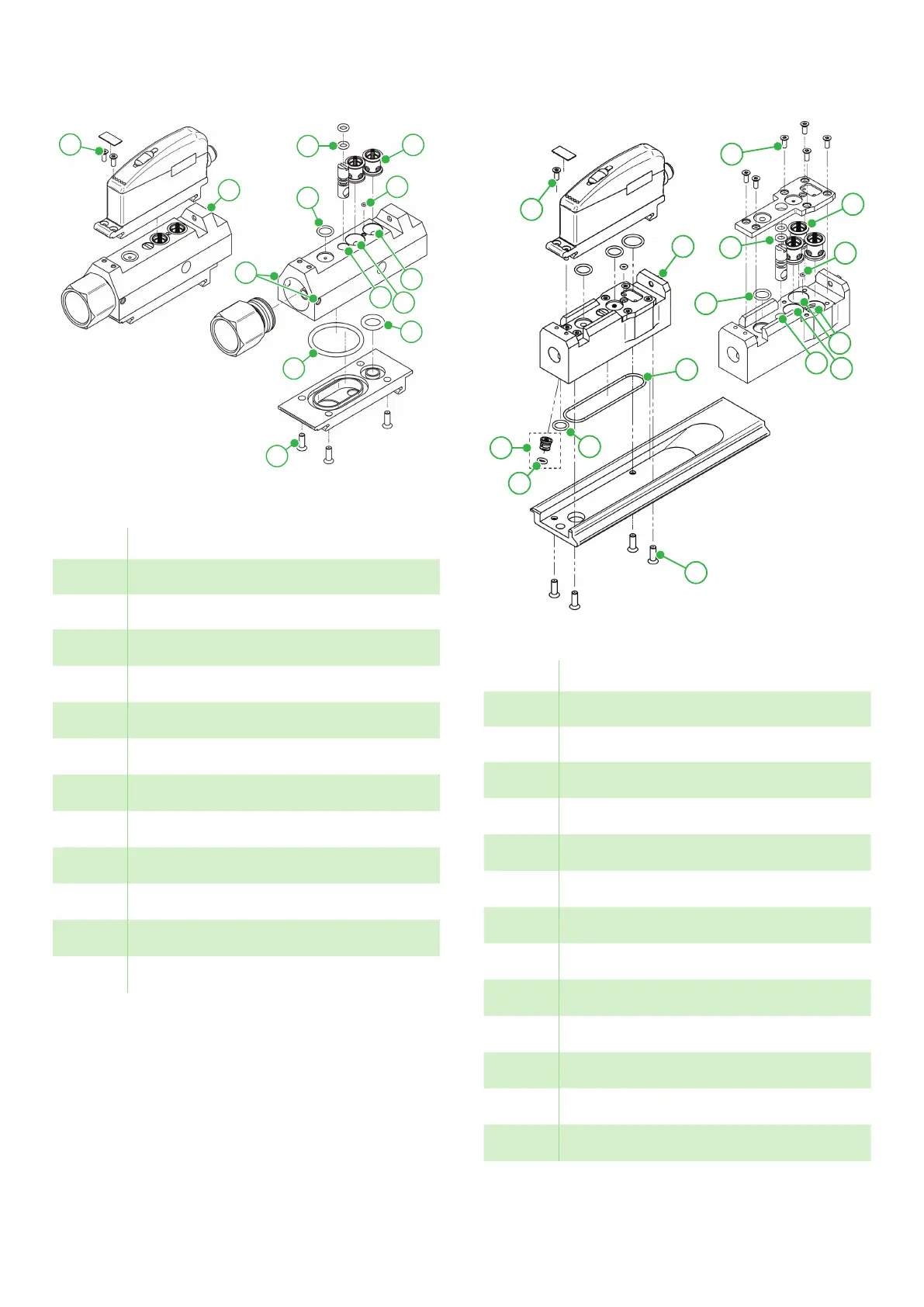

6.3 P5010 AVM™2 exploded view
1
3
4
5
6
7
V
1
V
2
V
3
8
A
2
9
1
2
4
A
5
3
9
8
6
V
V
V
7
Figure 23 P5010 AVM™2 parts.
Pos Description
1
2x M3x8 mm TX
2
M5x10
3
9.1x1.6 mm
4
2x 4.76x1.78 mm
5
1.4x1 mm
6
34.2x3 mm
7
11x3 mm
8
4x M5x10 mm MFX
9
2x M5x6 mm
V
1
Vacuum on/off valve
V
2
Blow-off valve
V
3
Blow-off adjustment valve
6.4 P6010 AVM™2 exploded view.
1
6
4
A
5
V
1
V
2
V
3
3
9
8
B
10
7
2
1
2
4
A
5
3
6
9
V
V
V
8
7
B
10
Figure 24 P6010 AVM™2 parts.
Pos Description
1
2x M3x8 mm TX
2
M5x10
3
9.1x1.6 mm
4
2x 4.76x1.78 mm
5
1.4x1 mm
6
6x M3x8 mm TX
7
4.1x1.6 mm
8
8.1x1.6 mm
9
49x1.6 mm
10
4x M4x12 mm MFX
V
1
Vacuum on/off valve
V
2
Blow-off valve
V
3
Blow-off adjustment valve
