Operation
5. Operation
Warning!
Do not use the product if the exhaust is
restricted or blocked.
5.1 Internal/external electrical
functionality
red re d yellow green green
V1 V2 ES S1 S2
V3
A
B
C
C
D
E
V1
V2
ES
S1
S2

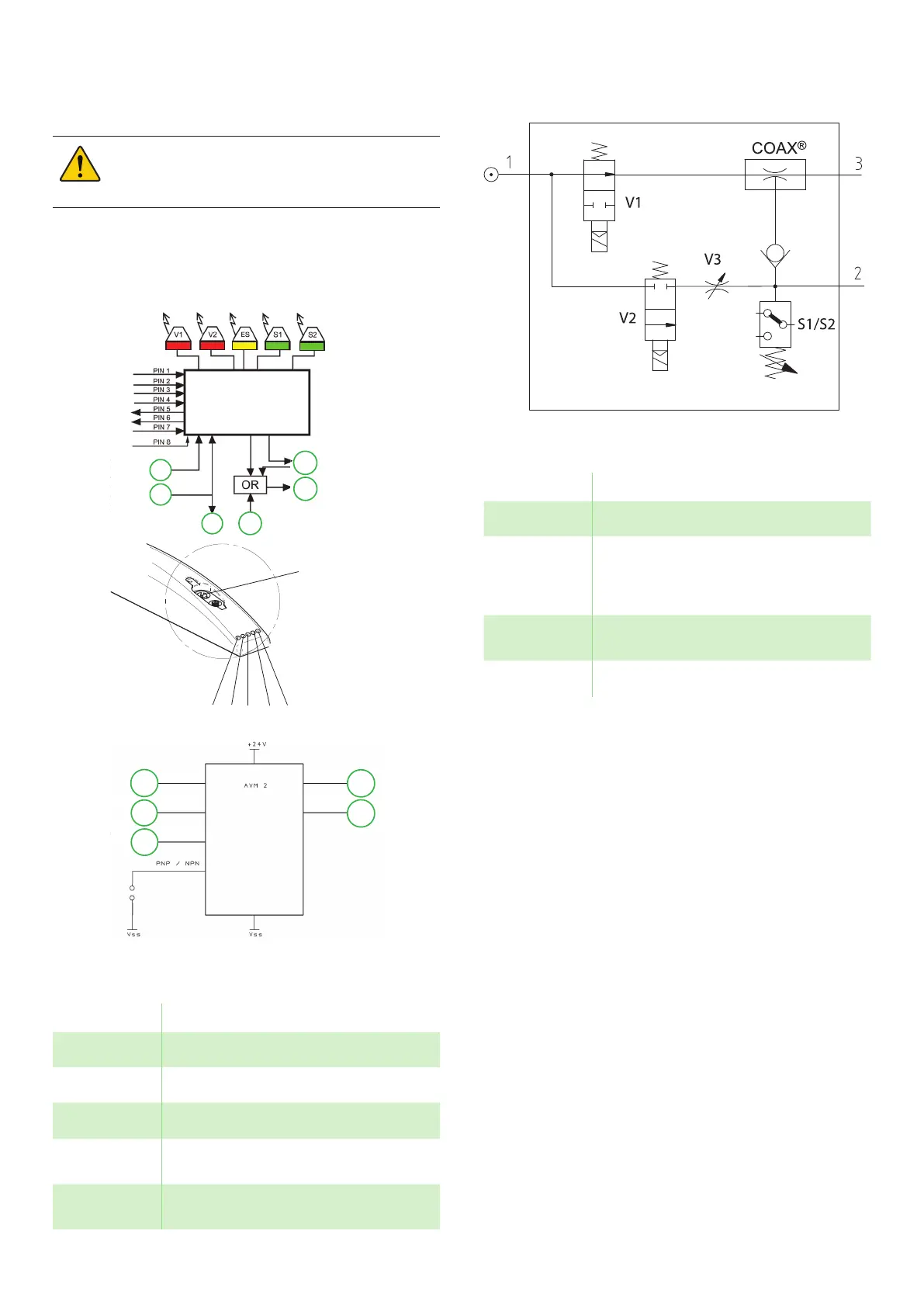

Figure 12 Internal/external electrical functionality.
Position Description
A Vacuum
B Level S1
C Level S2
D Output S2 on
off
E Output S1 on
off
5.2 Pneumatic diagram
Figure 14 1: compressed air, 2: vacuum, 3: exhaust.
Position Description
COAX® Multi-stage ejector.
V1 Vacuum valve, NO or NC/NC 2 (NO
shown. NC changes to NO if main pow-
er off, NC 2 stays NC if
main power off).
S1/S2 Vacuum sensing port with two digital
outlets, adjustable vacuum signal levels.
V3 Blow-off adjustment valve
5.3 Function
•
Valve (V1) for ON/OFF of the ejector. This valve is
normally open (NO) or normally closed (NC). The
normally closed (NC) valve behaves as normally
open (NO) if the power is turned off, i.e., the
ejector continues operating.
•
Valve (V1) for ON/OFF is also available as a NC
2 version. The NC 2 valve behaves like a NC
(Normally Closed) even if power to AVM™2 is
turned off.
•
Valve (V2) for ON/OFF of the blow-off function.
•
Option for valve (V2) - automatic blow-off (1
sec), activated immediately after valve (V1) has
changed position.
•
Adjustment valve (V3) for controlling the blow-off
flow.
•
Integrated automatic energy-saving function
(ES) used to minimize the air consumption. This
function can be activated manually or by a signal.
•
Vacuum switch that sends two digital output
signals, S1 and S2. Selection of signal level is
done with a rotary switch, and there are 16 preset
signal levels available.
