2Page 14/24
Installation
4.3.2 PNP type

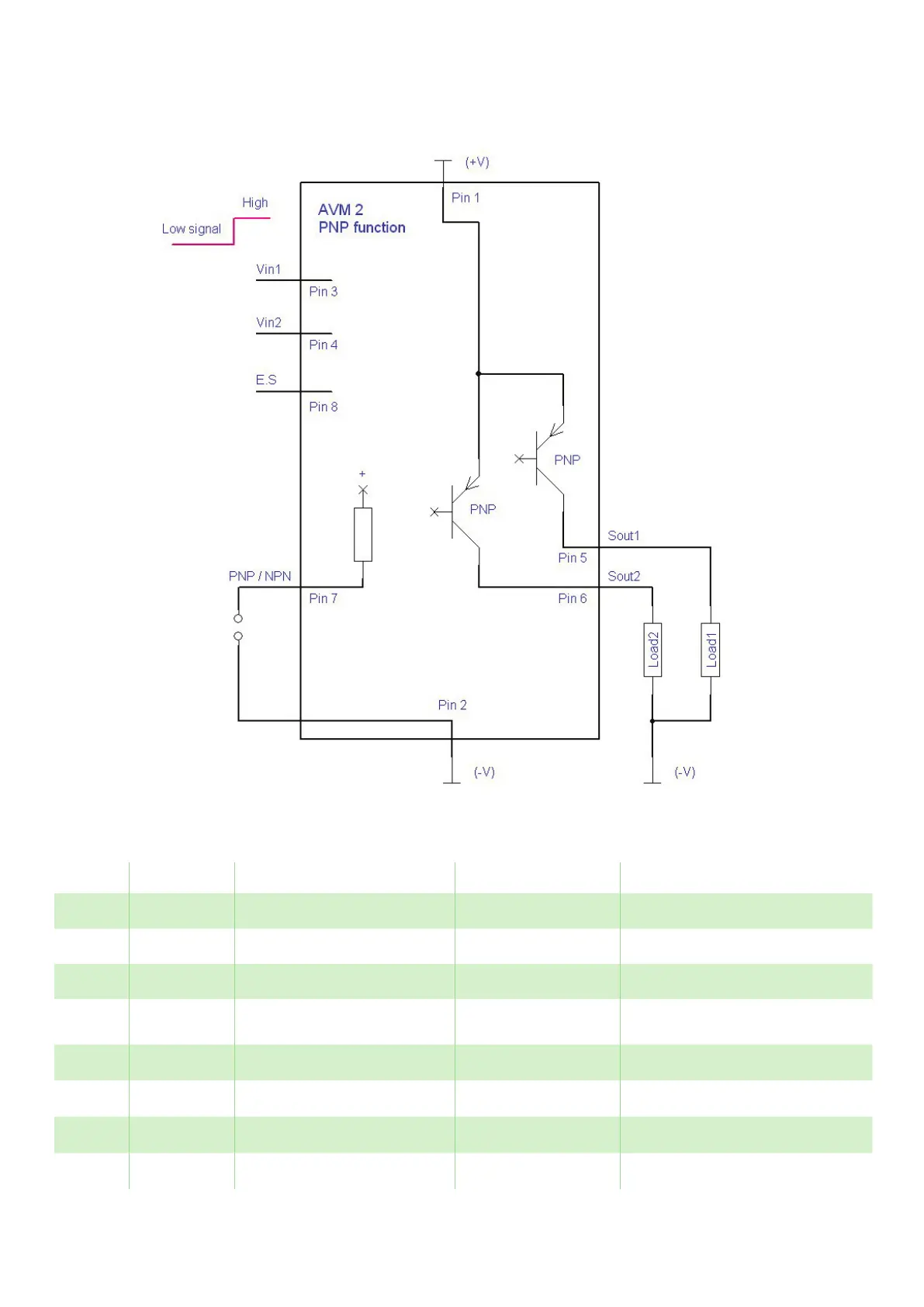

Figure 10 Schematics PNP.
PNP type
Pin Name Description
Note
Wiring color cable 0110238
1
Supply 24VDC (V+) White
2
GND Common (V-) Brown
3
V
in
1 Control signal, on/off Green
4
V
in
2 Control signal, blow-off
Option: automatic
blow-off, 1 sec
Yellow
5 S
out
1
Output signal sensor S1 Grey
6
S
out
2 Output signal sensor S2 Pink
7 PNP
Selector input
Open = PNP
Blue
8 S
ES
Control signal ES Red
