Demand reading Measuring range
Demand current
Current every phase
0 ~ 65，000A
Maximum peak
0 ~ 65，000A
Active power
Every phase
Three-phase total
0 ~ ± 26MW
0 ~ ± 78MW
Maximum peak of every phase
Maximum peak of three-phase
total
0 ~ ± 26MW
0 ~ ± 78MW
Reactive power
Every phase
Three-phase total
0 ~ ± 26MVAR
0 ~ ± 78MVAR
Maximum peak of every phase
Maximum peak of three-phase
total
0 ~ ± 26MVAR
0 ~ ± 78MVAR
Apparent Power
Every phase
Three-phase total
0 ~ ± 26MVA
0 ~ ± 78MVA
Maximum peak of every phase
Maximum peak of three-phase
total
0 ~ ± 26MVA
0 ~ ± 78MVA

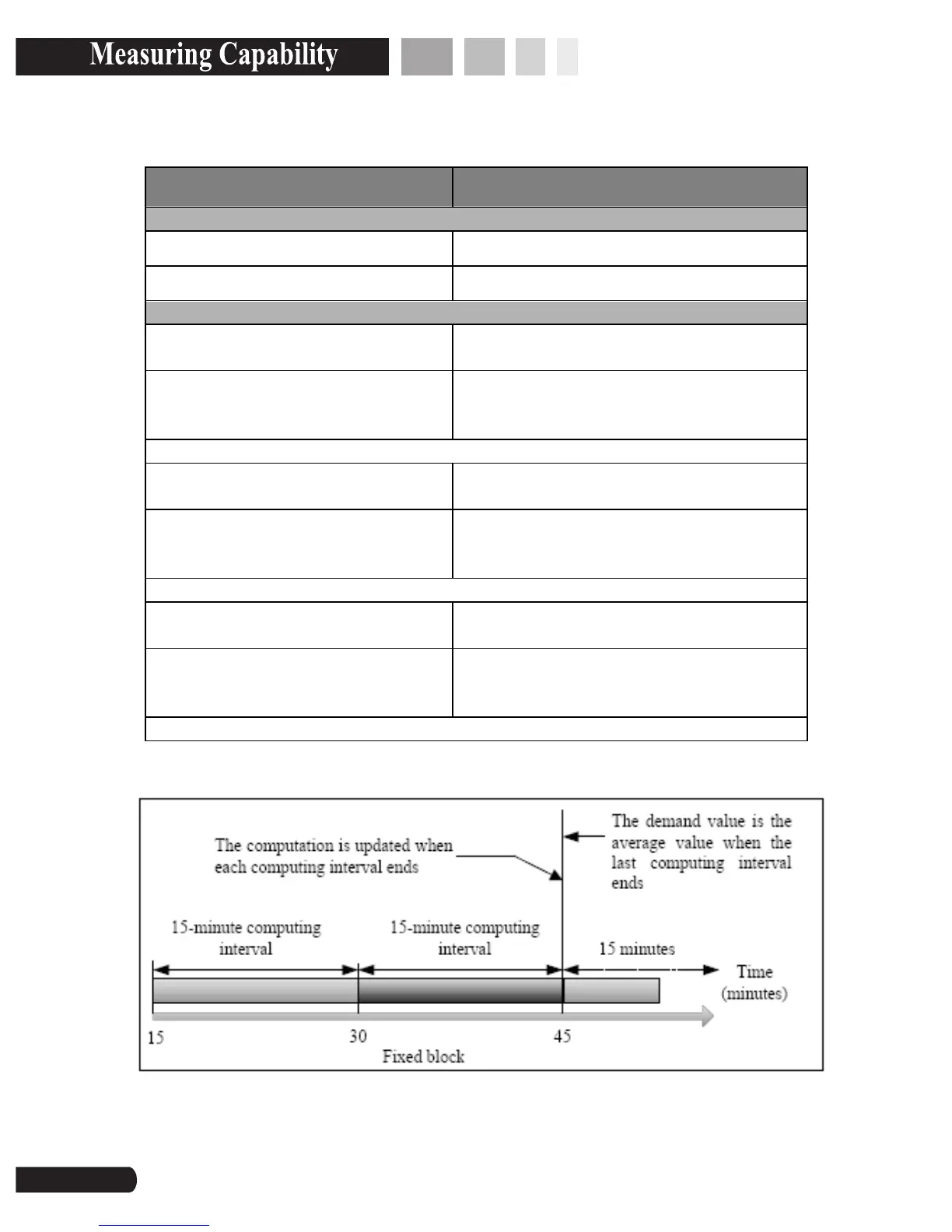

The figure below describes demand calculation:
