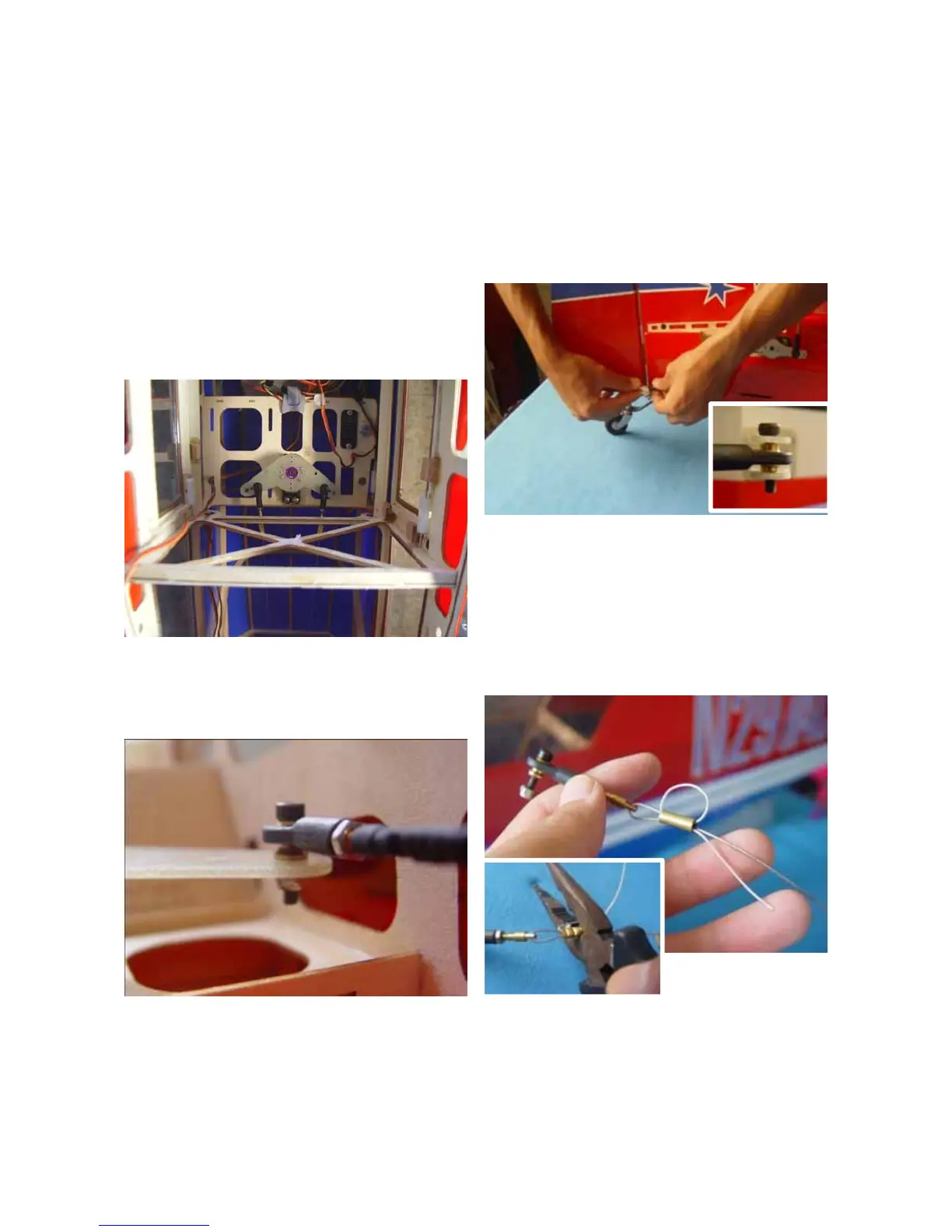

4. Mount the cables with the pre-
installed ball link cable ends to the
rudder servo arm. Cut the covering in
the tail to expose cable exit slots. Run
the cables out the slots. Make sure
the cables cross in the middle.
5. Install ball link to rudder control
horn temporarily.
6. Prior to connecting rudder cable to
the ball link, slide a section of heat
shrink tubing and copper tubing. Run
cable as shown looping around
tubing. Remove excess slack from
cable and crimp with diagonal pliers.
Rudder Servo Assembly
5. The flat surface of the ball link
gets screwed against the servo arm.
