Operating Manual PNOZ c1
22197-EN-06
| 10

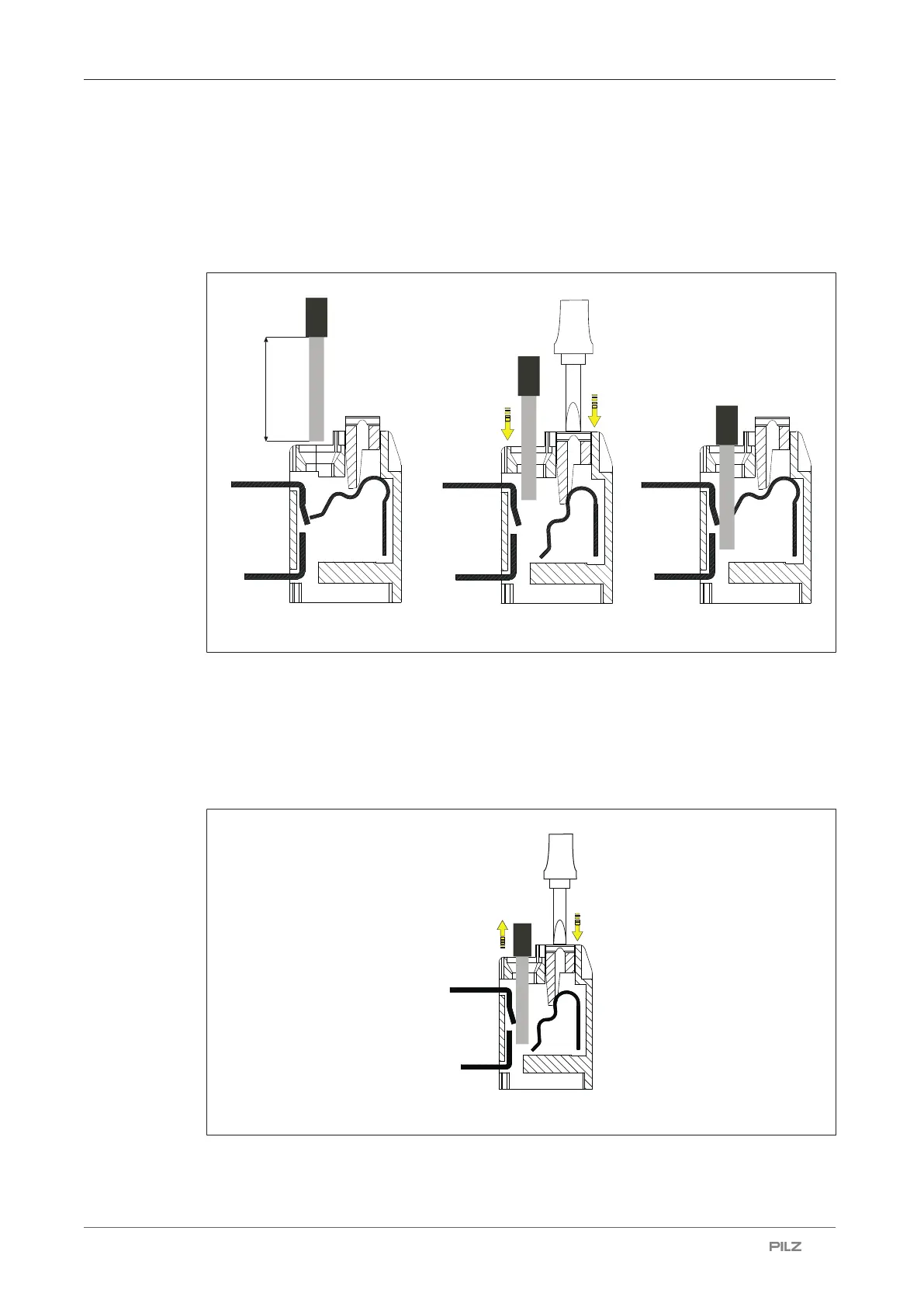

Connect cable without crimp connector
} Strip the cable [1].
} Using the screwdriver, press the actuator button [2] and insert the stripped cable into the
terminal point [2] [3] as far as it will go.
We recommend you use a screw driver with a 0.4 x 2.5 mm (DIN 5264) blade!
[1]
[2] [3]
10 mm
Fig.: Connect cable without crimp connector
Disconnect cable
We recommend you use a screw driver with a 0.4 x 2.5 mm (DIN 5264) blade!
} Using the screwdriver, press the actuator button and pull the cable out of the terminal
point [4].
[4]
Fig.: Disconnect cable
