Error indicators
All LEDs off
Diagnostics: Short across contacts/earth fault; unit switched off
} Remedy: Rectify short across contacts/earth fault, switch off supply voltage
for 1 min.
LED Power off
Diagnostics: Short circuit or supply voltage failure
} Remedy: Rectify short circuit or connect supply voltage.
Faults - malfunctions
} Contact malfunctions: If the contacts have welded, reactivation will not be possible after
the input circuit has opened.

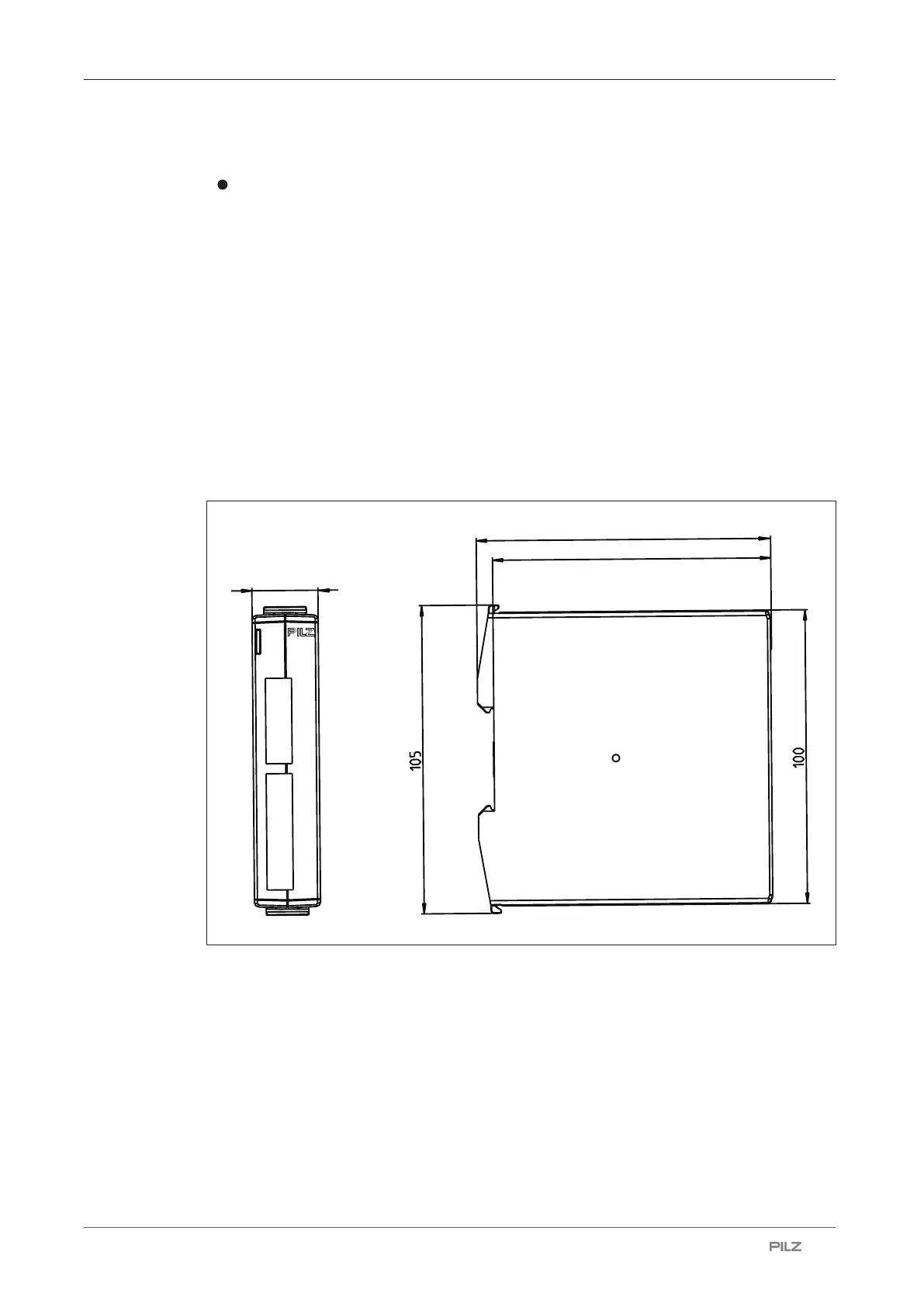

Dimensions in mm
100
94.5
22.5
