Pilz PNOZ c1 User Manual

PNOZ c1
Operating Manual PNOZ c1
22197-EN-06
| 11

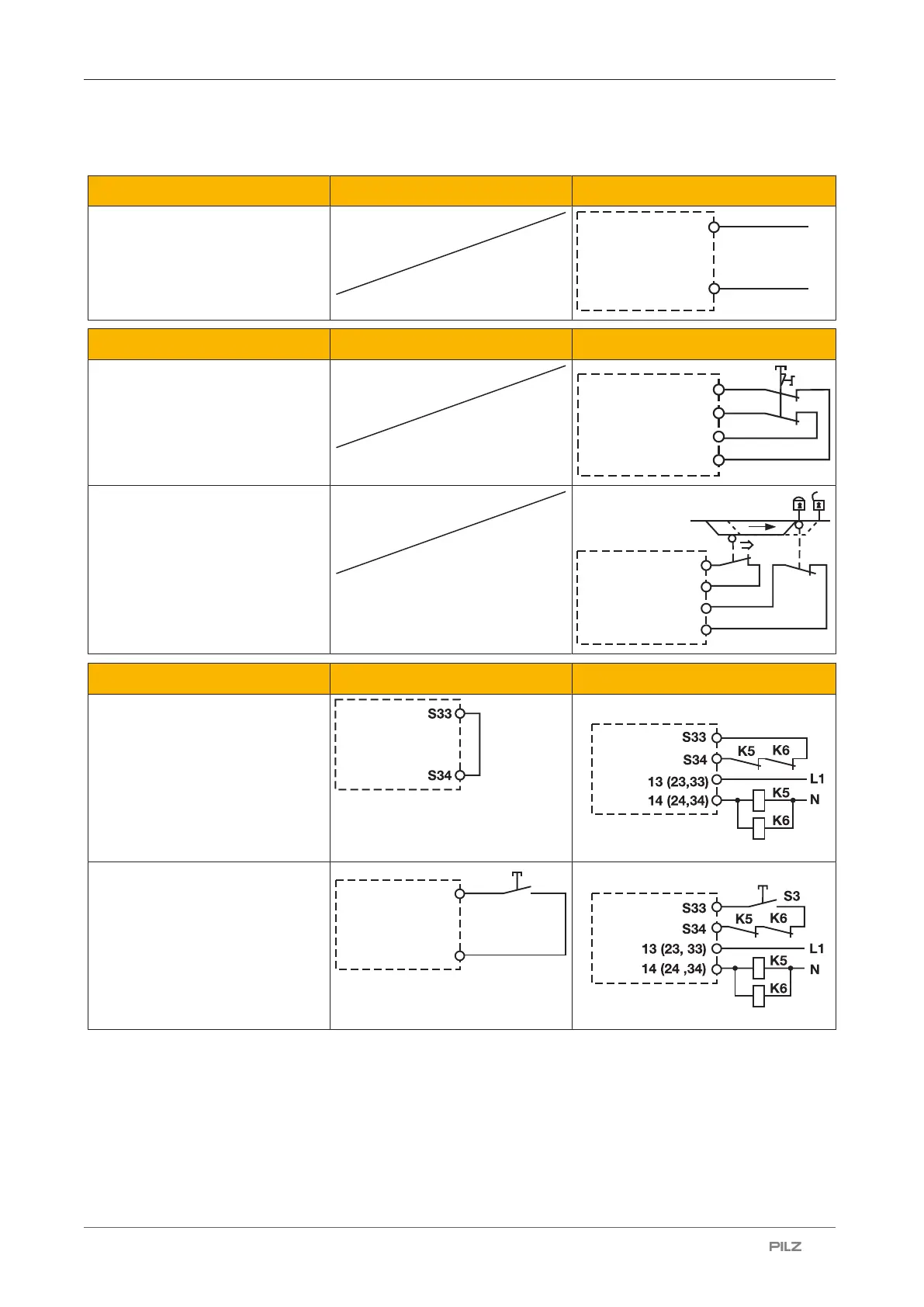

Preparing for operation
Supply voltage AC DC
A1
A2
L+
L-
Input circuit Single-channel Dual-channel
E-STOP with detection of shorts
across contacts
S1
S22
S21
S12
S11
Safety gate with detection of
shorts across contacts
S1
S2
S12
S11
S22
S21
Start circuit/feedback loop Start circuit Feedback loop
automatic start
Manual start
S33
S34
S3
