PNOZ e3.1p
Operating Manual PNOZ e3.1p
21240-EN-09
| 17

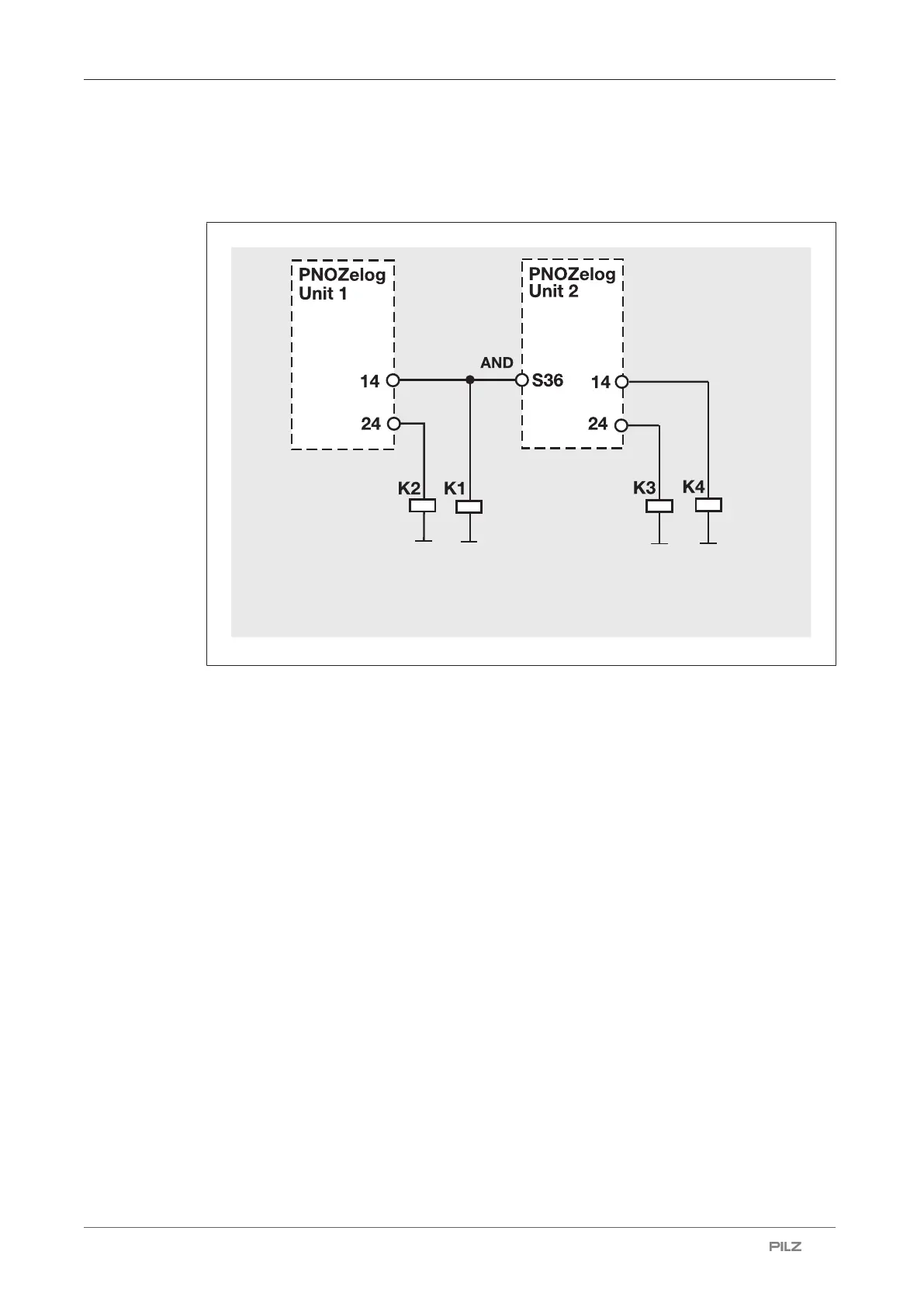

} Example 2:
Loads are connected to the safety outputs of Unit 1. In addition, a safety output is AND-
linked to another PNOZelog unit via the logic input S36.
