Pilz PNOZ e3.1p User Manual

PNOZ e3.1p
Operating Manual PNOZ e3.1p
21240-EN-09
| 25

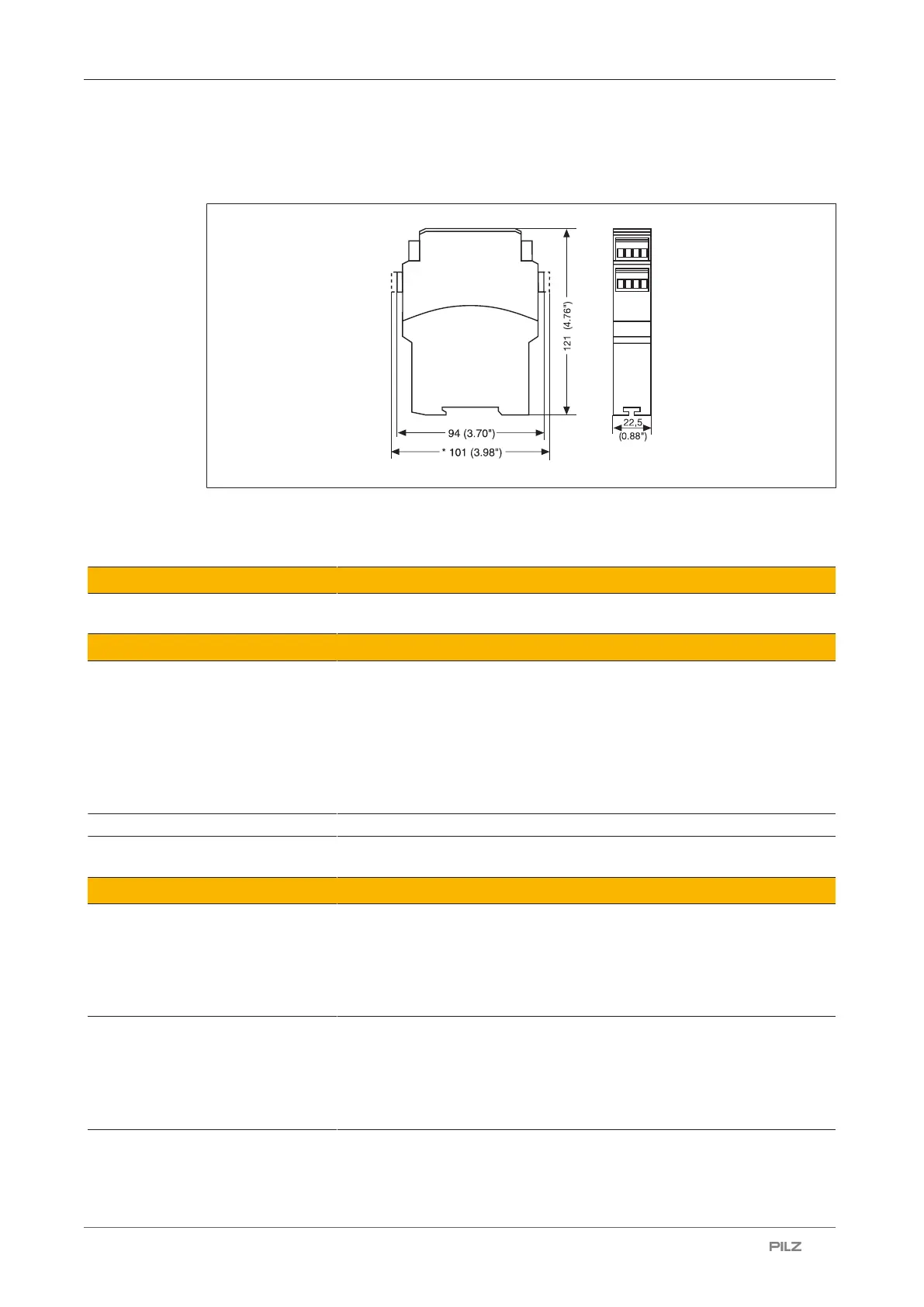

Dimensions in mm
* With spring-loaded terminals
Technical details
General 774139 784139
Certifications
CE, EAC (Eurasian), TÜV, cULus
Listed
CE, EAC (Eurasian), TÜV, cULus
Listed
Electrical data 774139 784139
Supply voltage
Voltage 24 V 24 V
Kind DC DC
Voltage tolerance -20 %/+25 % -20 %/+25 %
Output of external power supply
(DC) at no load 2 W 2 W
Residual ripple DC 20 % 20 %
Duty cycle 100 % 100 %
External unit fuse protection F1
max. 6 A slow/10 A quick 6 A slow/10 A quick
Inputs 774139 784139
Voltage at
Input circuit DC 24 V 24 V
Start circuit DC 24 V 24 V
Feedback loop DC 24 V 24 V
Logic input 24 V 24 V
Current at
Input circuit DC 5 mA 5 mA
Start circuit DC 5 mA 5 mA
Feedback loop DC 5 mA 5 mA
Logic input 5 mA 5 mA
