Error code 1, 0:

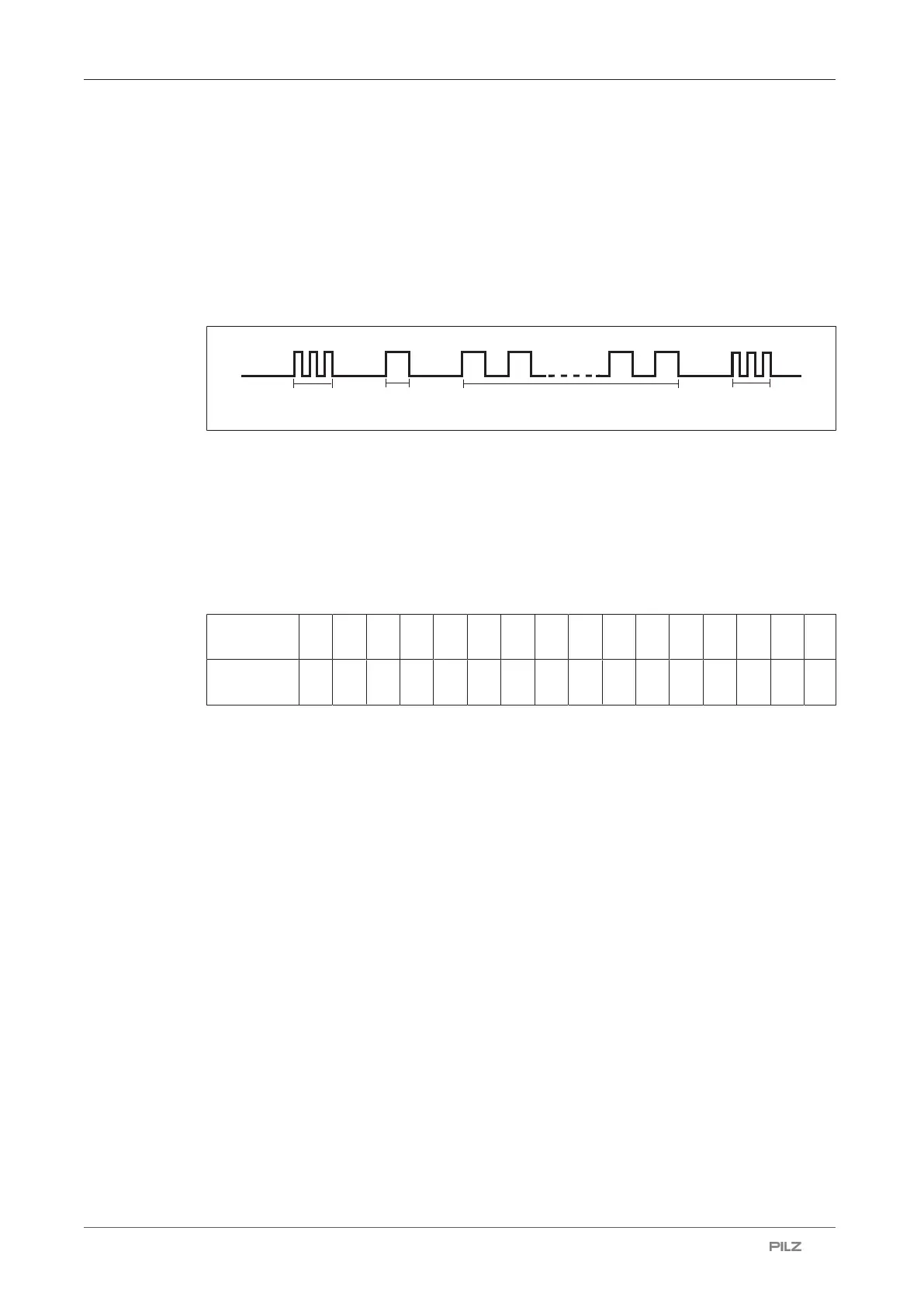

LED CH.1 or CH.2 flashes
} 3 times, short
} Pause
} Once for one second
} Pause
} 16 times, for one second each
I
IV
III
II
I Code for error message
II Code for 1st digit
III Code for 2nd digit
IV Code for error message repeated
The table below shows the relationship between the number of flashes and the error code.
The key to the error codes is described in the Error coding table.
Number of
flashes
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Decimal er-
ror code
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0
