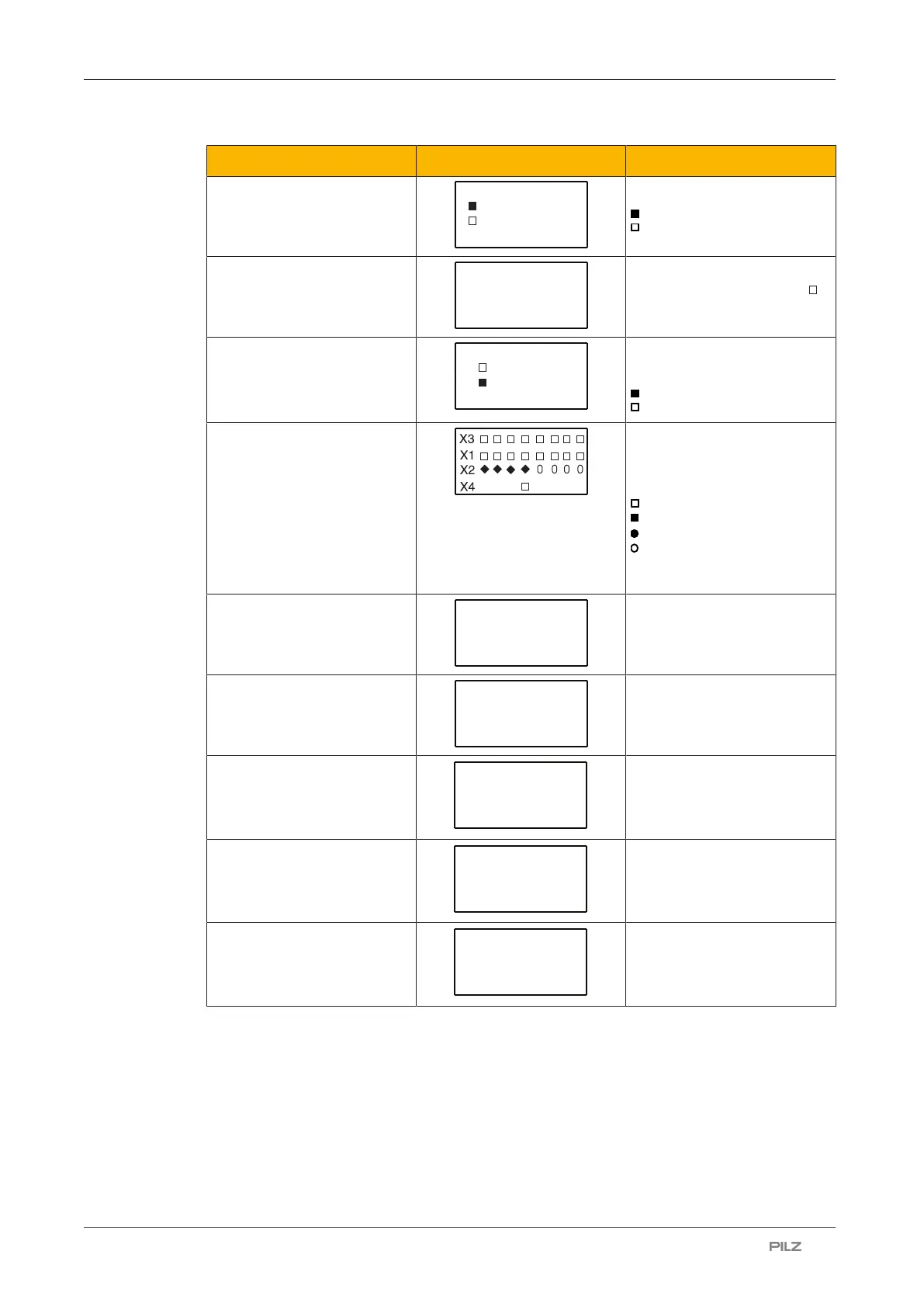

Operation
Operating Manual PNOZ m B0.1
1005720-EN-04
| 29
Display Example Description
INTERFACE
Interface
Interface
USB
Ethernet
change?
Show the selected interface,
Interface active
Interface inactive
Start FORCE MODE?
Start force mode
Start
Force Mode?
Switch test pulse outputs
manually via the display
TEST PULSE
Activate pulse outputs
Test Pulse
T0 Change?
T1
State of the test pulse out-
puts:
Test pulse output active
Test pulse output inactive
IO STATUS TP
State of the inputs and test
pulse outputs
T
M M M
P
The lines are assigned ter-
minals X1 ... X4
State:
O
M
Input active
Input inactive
Test pulse output active
Test pulse output inactive
Semiconductor output
Signal output
EXIT FORCEMODE
Exit force mode
Exit
Force Mode?
Exit force mode
RESTART
Restart
Restart?
Countdown to restart is star-
ted
STOP Device?
Stop device
STOP Device?
Bring device to a STOP
state
RESET PROJECT?
Delete project
RESET
Project?
Delete project from the base
unit's memory
EXIT MENU?
Exit menu
Exit menu?
Exit menu
You can switch between the menu levels by pressing or turning the knob.
