6.6.2 Connectionof4proximityswitches
Description
} 4proximityswitches,pnpswitching
} Connectionthrough24Vterminalsand0V
Speed monitor

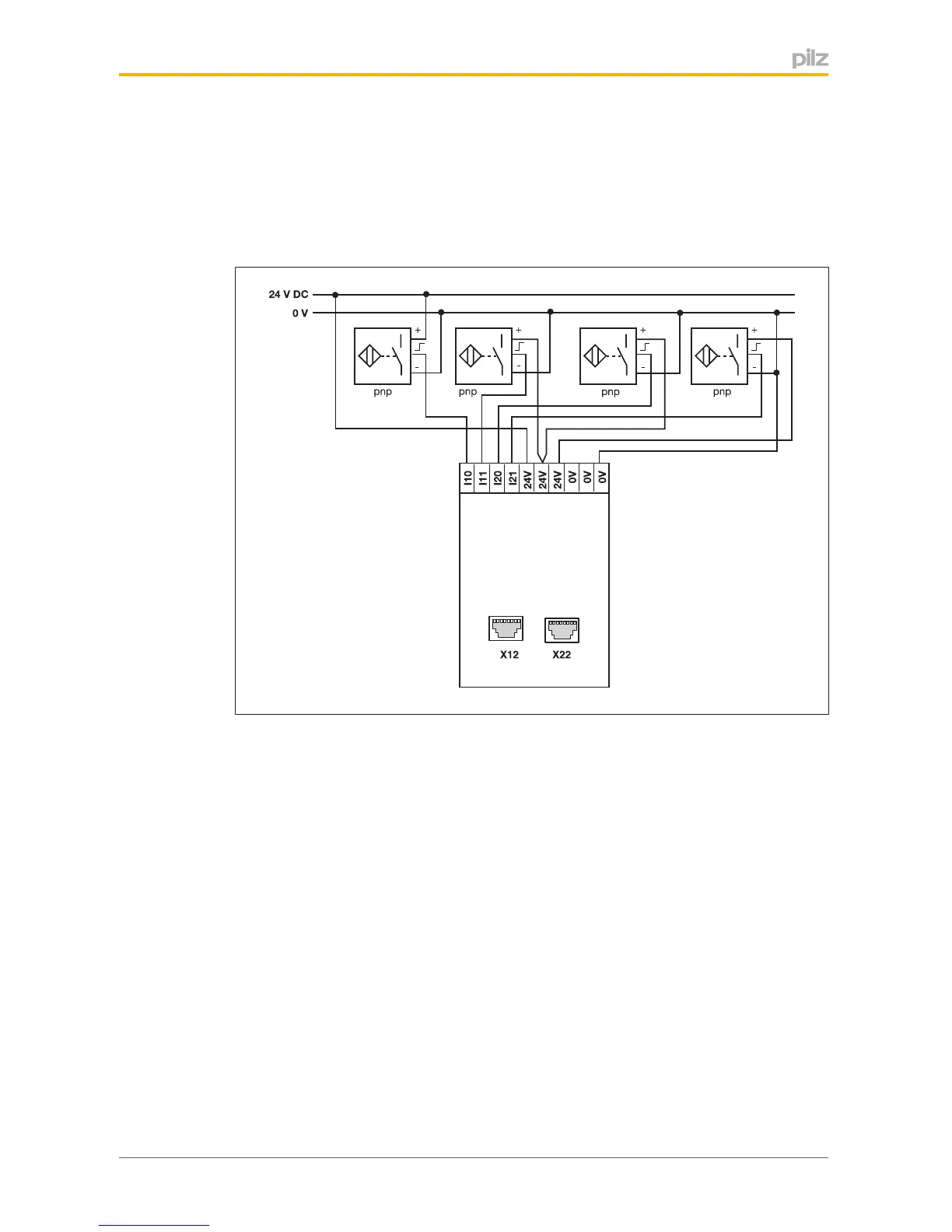

Fig.:Connectionof4proximityswitches,pnpswitching,connectionthrough24Vterminalsand0V
