Safestandstillmonitoring

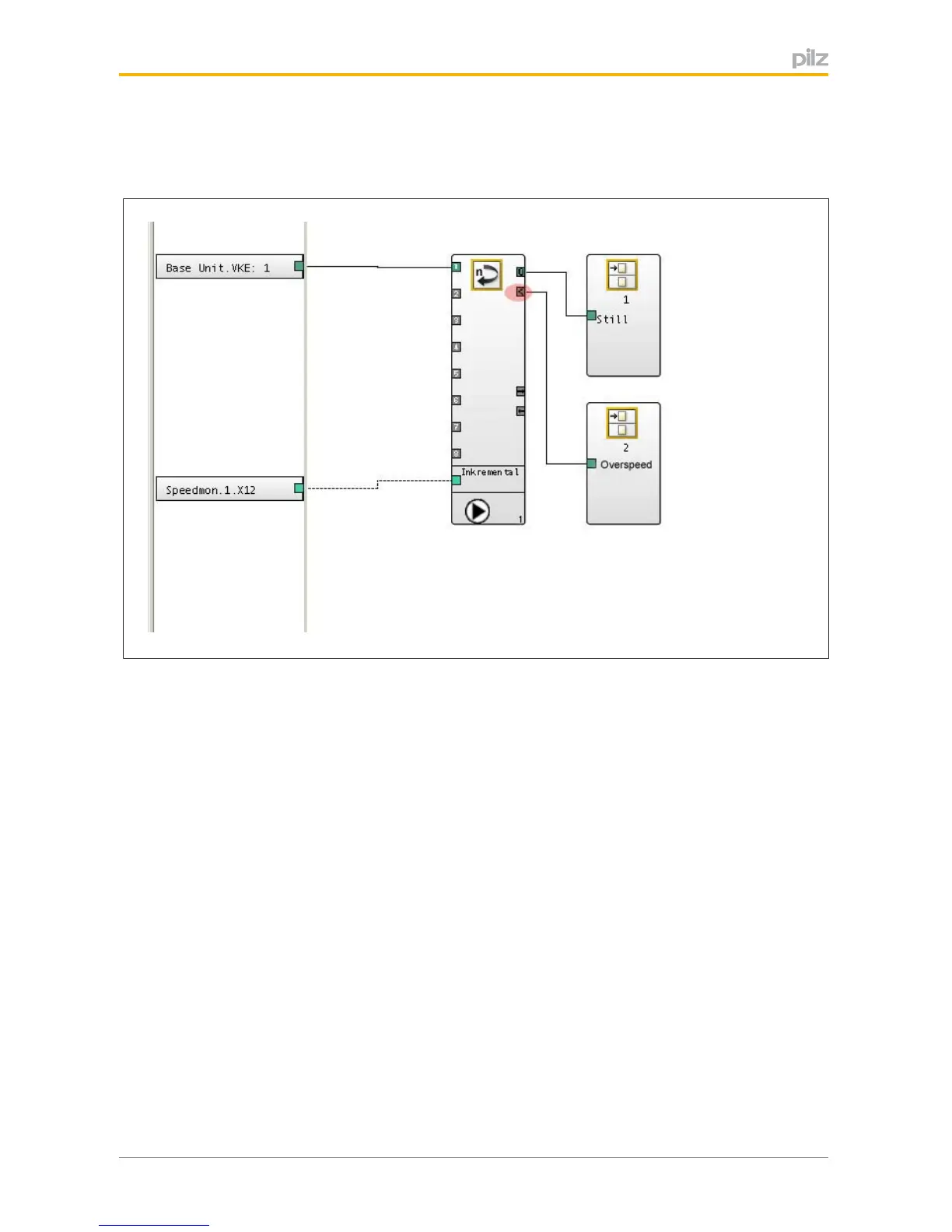

ConfigurationinthePNOZmultiConfigurator
} Standstill:dependingonrequirement
} Speedn1:greaterthanthemaximumpermittedspeed.
Ifthe"Overspeed"output(seeredmarking)="0",eitherthemaximumpermittedspeedhas
beenexceededorthespeedmonitorhasrecognisedafault.
"Overdrive"output="0"mustleadtotheshutdownoftherelevantaxis.
Safemonitoringwith"reducedspeed"operatingmode
