Pilz PNOZ s11 User Manual

PNOZ s11
Operating Manual PNOZ s11
21693-EN-11
| 22

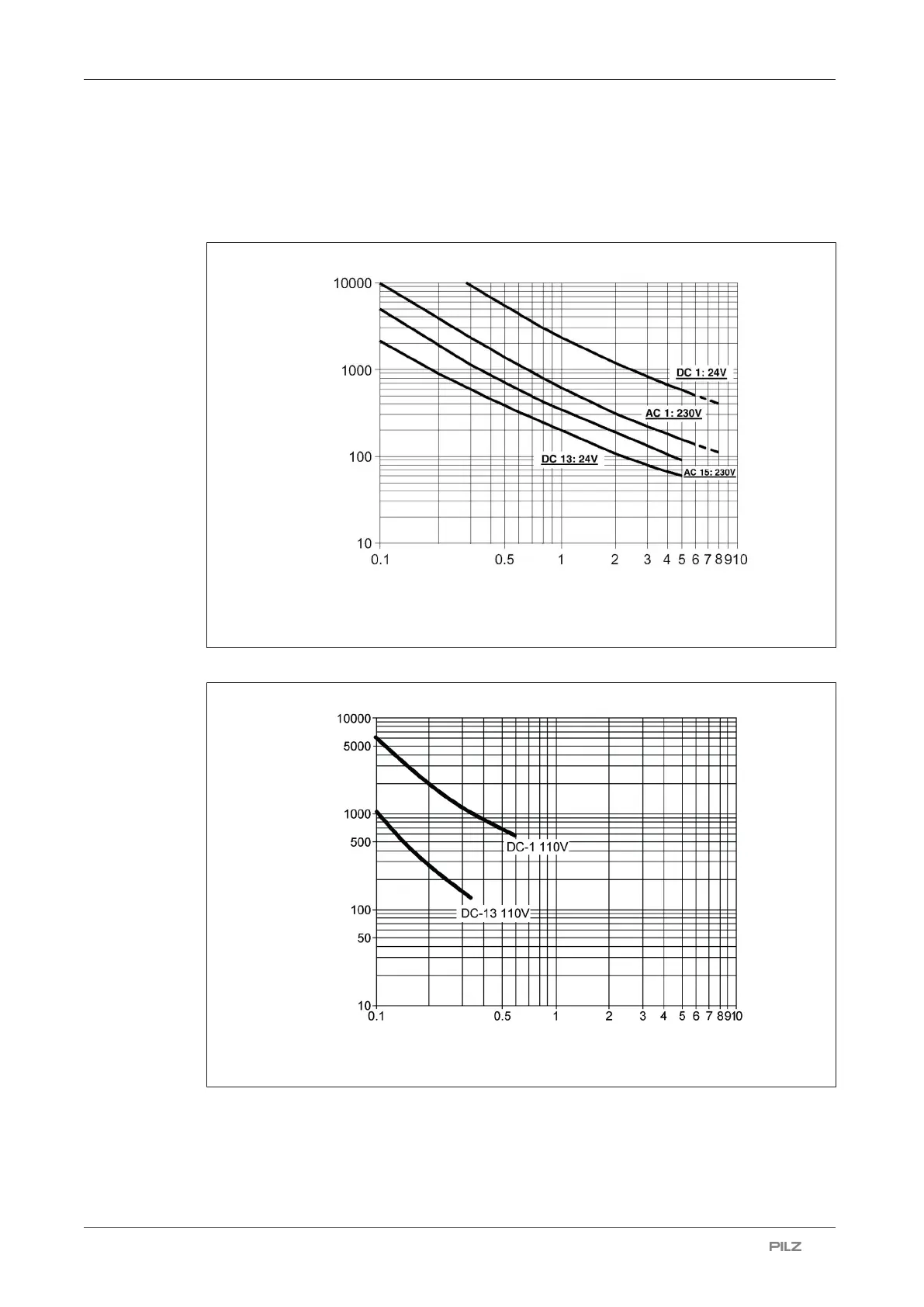

Service life graph
The service life graphs indicate the number of cycles from which failures due to wear must
be expected. The wear is mainly caused by the electrical load; the mechanical load is negli-
gible.
Cycles x 1000
Switching current (A)
Fig.: Service life graphs at 24 V DC and 230 V AC
Cycles x 1000
Switching current (A)
Fig.: Service life graphs at 110 V DC

Pilz PNOZ s11 Specifications

General

Brand	Pilz
Model	PNOZ s11
Category	Relays
Language	English
