Pilz PNOZ X2.5P Series User Manual

PNOZ X2.5P
Operating Manual PNOZ X2.5P
20407-EN-10
11

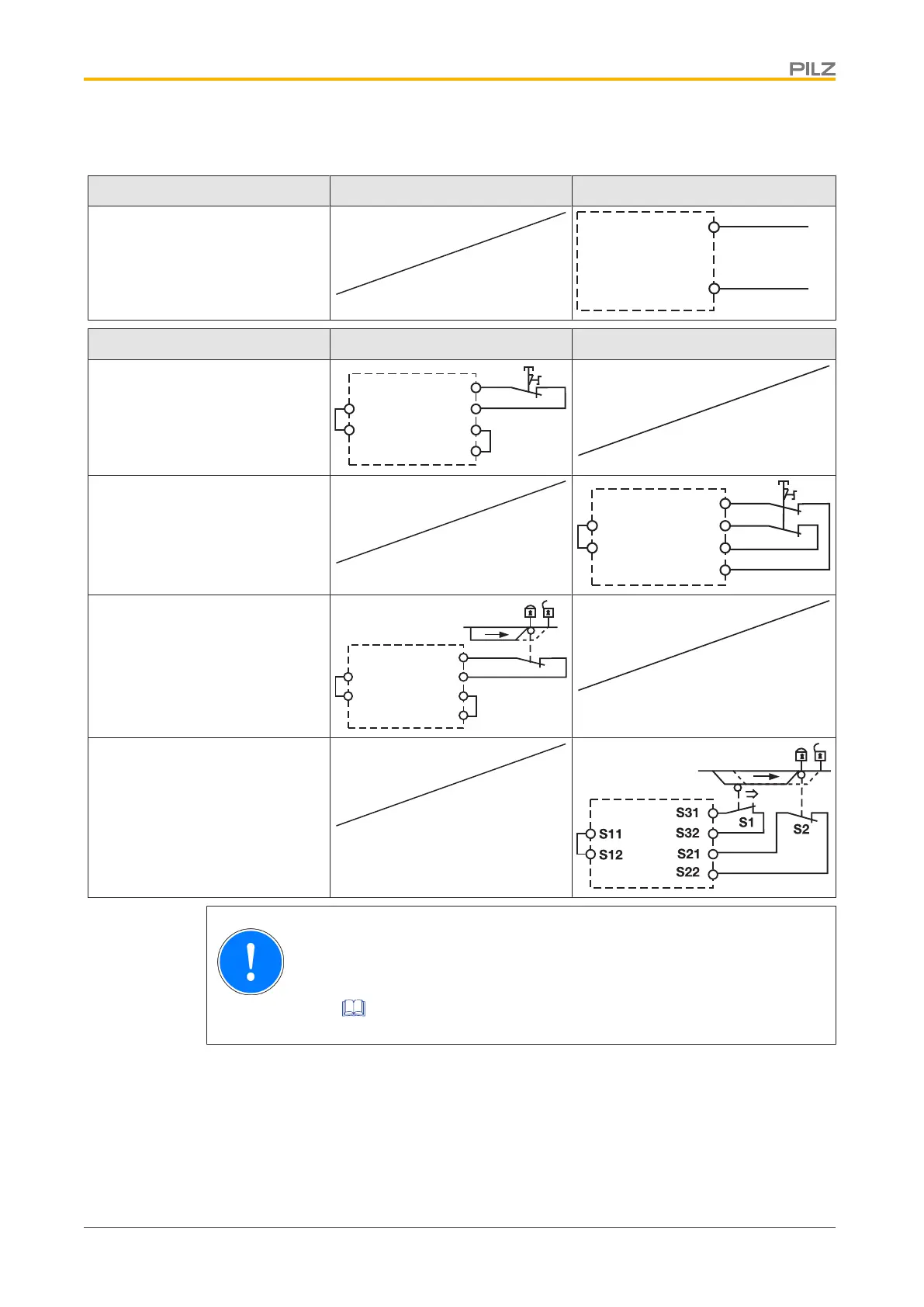

Preparing for operation
Supply voltage AC DC
A1
A2
L+
L-
Input circuit Single-channel Dual-channel
E-STOP
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
E-STOP
with detection of shorts across
contacts
S1
S22
S31
S32
S21
S12
S11
Safety gate
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
Safety gate
with detection of shorts across
contacts
NOTICE
With single-channel wiring the safety level of your machine/plant may be
lower than the safety level of the unit (see
Safety characteristic
data [ 18]).

Pilz PNOZ X2.5P Series Specifications

General

Brand	Pilz
Model	PNOZ X2.5P Series
Category	Relays
Language	English
