Operating Manual PNOZ X2.5P
20407-EN-10
7
Unit features
} Positive-guided relay outputs:
– 2 safety contacts (N/O), instantaneous
} 1 semiconductor output
} Connection options for:
– E-STOP pushbutton
– Safety gate limit switch
– Start button
} LED display for:
– Supply voltage
– Switch state of the safety contacts
– State of semiconductor output
} Semiconductor output signals:
– Switch state of the safety contacts
} Plug-in connection terminals (either spring-loaded terminal or screw terminal)
} See order reference for unit types
Safety features
The safety relay meets the following safety requirements:
} The circuit is redundant with built-in self-monitoring.
} The safety function remains effective in the case of a component failure.
} The correct opening and closing of the safety function relays is tested automatically in
each on-off cycle.

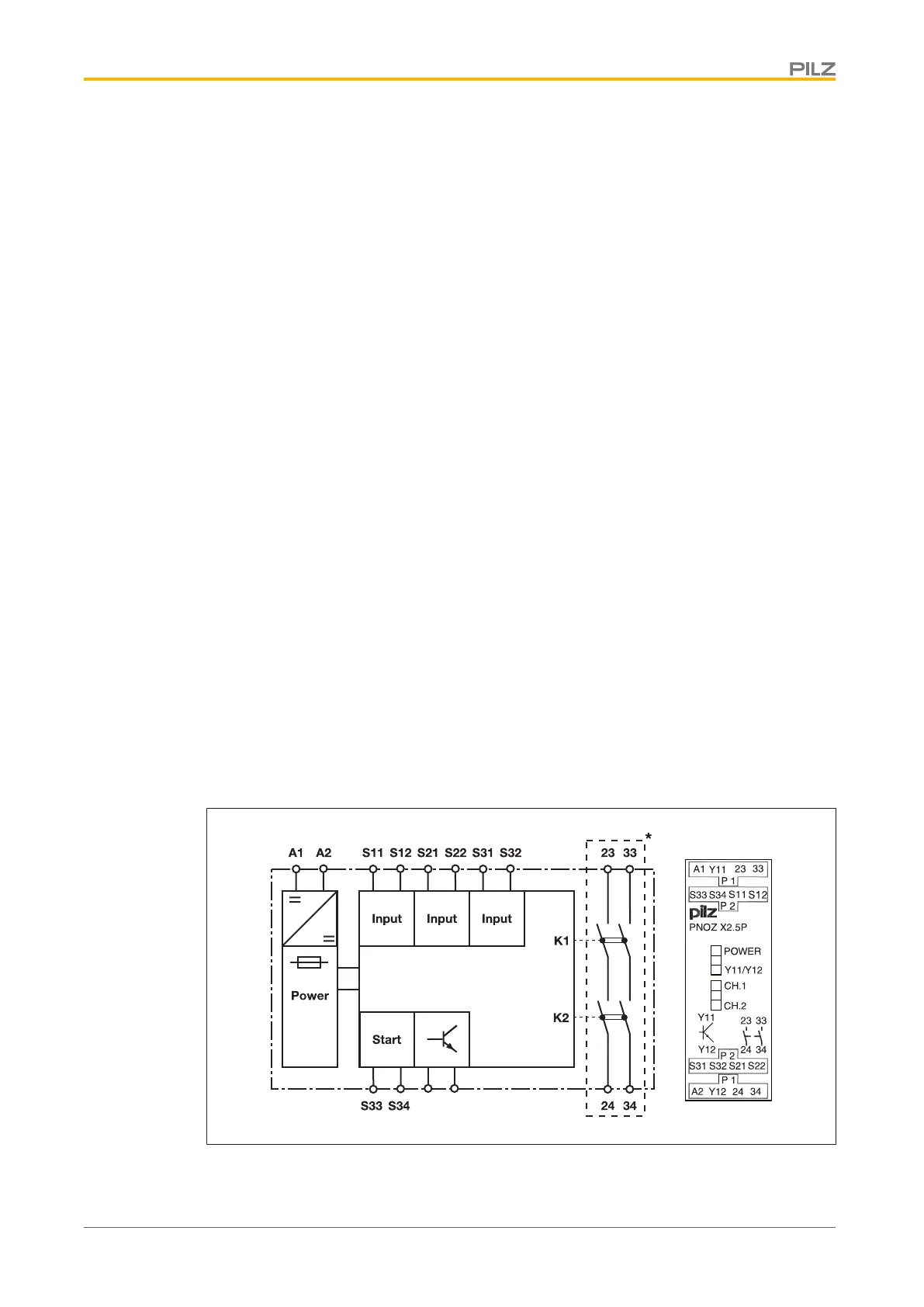

Block diagram/terminal configuration
Y11 Y12
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
