PNOZ X2.5P
Operating Manual PNOZ X2.5P
20407-EN-10
14

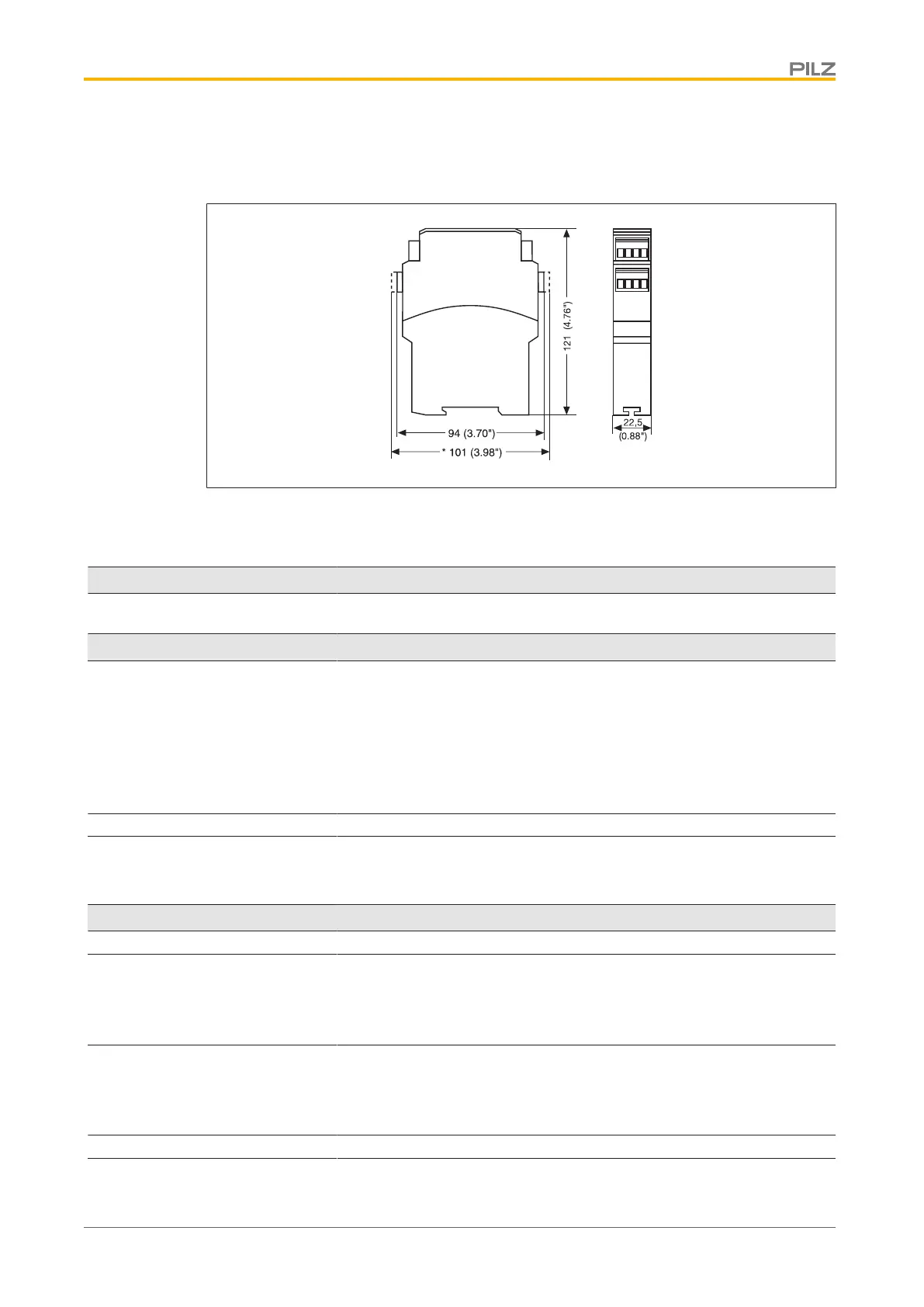

Dimensions in mm
* with spring-loaded terminals
Technical details
General 777308 787308
Approvals
CCC, CE, EAC (Eurasian), TÜV,
cULus Listed
CCC, CE, EAC (Eurasian), TÜV,
cULus Listed
Electrical data 777308 787308
Supply voltage
Voltage 24 V 24 V
Kind DC DC
Voltage tolerance -15 %/+10 % -15 %/+10 %
Output of external power supply
(DC) 1,5 W 1,5 W
Residual ripple DC 20 % 20 %
Duty cycle 100 % 100 %
Max. inrush current impulse
Current pulse, A1 1,7 A 1,7 A
Pulse duration, A1 1,5 ms 1,5 ms
Inputs 777308 787308
Number 2 2
Voltage at
Input circuit DC 24 V 24 V
Start circuit DC 24 V 24 V
Feedback loop DC 24 V 24 V
Current at
Input circuit DC 25 mA 25 mA
Start circuit DC 50 mA 50 mA
Feedback loop DC 50 mA 50 mA
Min. input resistance at power-on 64 Ohm 64 Ohm
